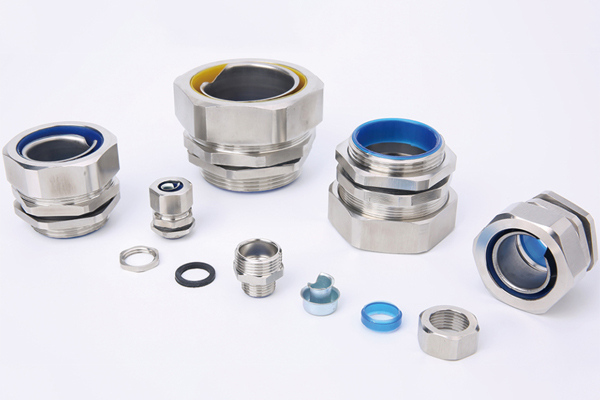

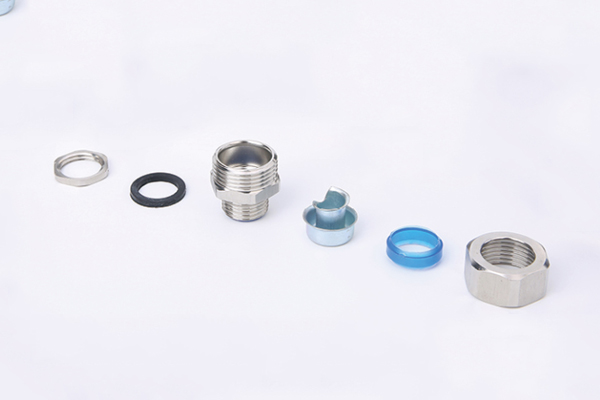

End Hose Fittings DPJ Type Stainless Steel IP68

End Hose Fittings DPJ Type Stainless Steel IP68

Specification:

Material: Stainless Steel SS304/316L
Retainer: TPE

Sealing: Modified Rubber
Mouth: SS304
Explosion-proof: Exd IIC Gb

Certificate: CE, RoHS, REACH, EX Available
Protection Rating: IP68 – 10bar
Working Temperature:
Static state: -60°C to 100°C, short time to 120°C
Dynamic state: -20 C to 80 °C, short time to 100°C
End Hose Fittings, Hose specification and thread size, example “DPJ-15-G1/2 “, one end with 15mm(diameter)hose,
the other end with G1/2” external thread.

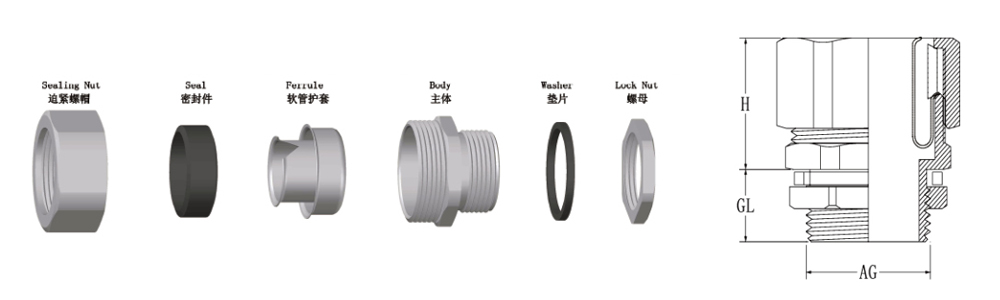

(In mm)

Conduit size Inch Thread Thread Length
GL
Metric Thread Thread Length
GL
PG Thread Spanner size Item No.
Metric Inch
Φ6 3/16″ G1/4″ 7 M12/M14 7 PG7 18/16 DPJ Series
Φ8 5/16″ G3/8″ 7 M14/M16 8 PG9 24/22
Φ10 1/4″ G3/8″ 7 M16 8 PG9 24/22
Φ12(13) 3/8″ G3/8″ 10 M18/M20 10 PG11/ 26
Φ15 (16) 1/2″ G1/2 12 M20/M22/M24 10 PG13.5/ 30
Φ20(19) 3/4″ G3/4″ 12 M25/M27/M30 12 PG21 35
Φ25 1″ G1″ 14 M32/M33/M36 12 PG29 43
Φ32 1-1/4″ G1-1/4″ 14 M36/M40/M42/M48 14 PG29 52
Φ38(40) 1-1/2″ G1-1/2″ 16 M48/M50 14 PG36/PG42 60
Φ51(50) 2″ G2″ 16 M60/M63/M64/M72 15 PG48 75
Φ64(70) 2-1/2″ G2-1/2″ 24 M76 20 89/87
Φ75(80) 3W G3″ 25 M88 22 102/97
Φ100 4″ G4″ 25 M114 28 133/128
Φ125 5W G5″ 25 M140 29 158
Φ150 6″ G6″ 25 M164 29 183
