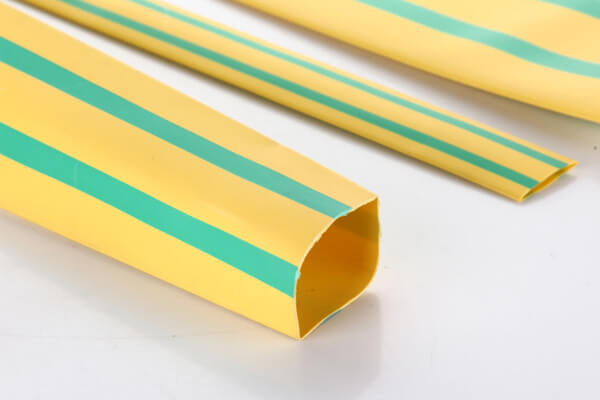

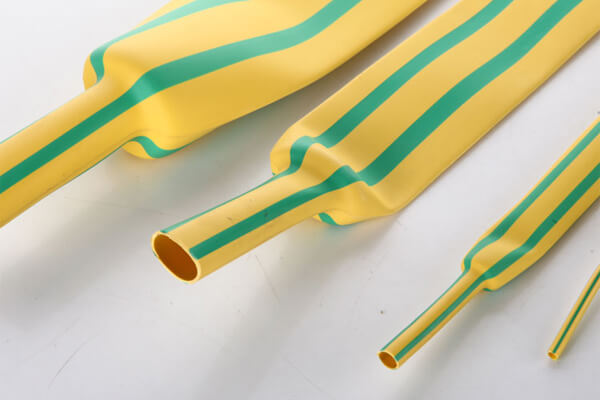

2:1 Heat Shrinking Tube YG Stripped Single Thin Wall Cross-linked HS2S-YG

Specification:

Operating temperature: -55℃ to 125℃
Shrink Temperature:90 ℃
RoHS compliant
Color: Black,white,red,blue,yellow,grean,brown,gray,orange,purple
Ratio of shrinking: 2:1
Flame retardant
Halogen Free, Low Smoke

SIZE	AS SUPPLIED	AFTER RECOVERY		ROUND/FLAT	STANDARD PACKAGE M/spool
mm	INTERNAL DIAMETER Min(mm)	INTERNAL DIAMETER Max(mm)	WALL THICKNESS mm	ROUND/FLAT	STANDARD PACKAGE M/spool
1	1.5 ± 0.3	0.7	0.28±0.10	Round	200
1.5	2.0 ± 0.3	0.9	0.30±0.10	Round	200
2	2.5 ± 0.3	1	0.35±0.10	Round	200
2.5	3.0 ± 0.3	1.3	0.36±0.10	Round	200
3	3.5 ± 0.4	1.5	0.38±0.10	Round	200
3.5	4.0 ± 0.4	1.8	0.40±0.10	Round	200
4	4.5 ± 0.4	2	0.45±0.10	Round	200
4.5	5.0 ± 0.4	2.3	0.45±0.10	Round	100
5	5.5 ± 0.4	2.5	0.45±0.10	Round	100
6	6.5 ± 0.4	3	0.50±0.10	Round	100
7	7.5 ± 0.4	3.5	0.50±0.10	Flat	100
8	8.5 ± 0.5	4	0.55±0.10	Flat	100
9	9.5 ± 0.5	4.5	0.55±0.10	Flat	100
10	10.5 ± 0.5	5	0.55±0.10	Flat	100
11	11.5 ± 0.5	5.5	0.60±0.10	Flat	100
12	12.5 ± 0.5	6	0.60±0.10	Flat	100
13	13.5 ± 0.5	6.5	0.60±0.10	Flat	100
14	14.5 ± 0.5	7	0.65±0.10	Flat	100
15	15.5 ± 0.6	7.5	0.70±0.10	Flat	100
16	17.0 ± 0.6	8	0.70±0.10	Flat	100
17	17.5 ± 0.6	8.5	0.70±0.10	Flat	100
18	19.0 ± 0.7	9	0.70±0.15	Flat	100
20	22.0 ± 0.7	10	0.75±0.15	Flat	100
22	24.0 ± 0.7	11	0.80±0.15	Flat	100
25	26.0 ± 0.7	12.5	0.90±0.15	Flat	50
28	29.0 ± 0.7	14	0.90±0.15	Flat	50
30	31.5 ± 0.7	15	0.95±0.15	Flat	50
35	36.5 ± 0.7	17.5	0.95±0.15	Flat	50
40	41.5 ± 0.7	20	1.00±0.20	Flat	50
45	46.5 ± 0.7	22.5	1.00±0.20	Flat	25
50	46.5 ± 0.7	25	1.00±0.20	Flat	25
60	≥ 60.0	30	1.10±0.20	Flat	25
70	≥ 70.0	35	1.20±0.20	Flat	25
80	≥ 80.0	40	1.30±0.20	Flat	25
90	≥ 90.0	45	1.50±0.20	Flat	25
100	≥ 100.0	50	1.65±0.20	Flat	25
120	≥ 120.0	60	1.70±0.20	Flat	15
150	≥ 150.0	75	1.70±0.20	Flat	15
180	≥ 180.0	90	1.75±0.20	Flat	15
