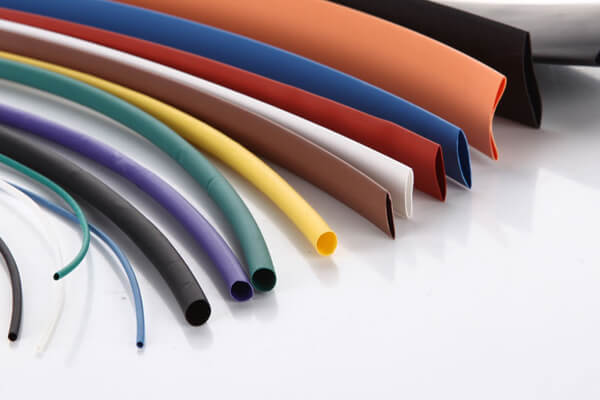

2:1 Ultra Thin Wall Single Wall Flexible Heat Shrink tubing HS2S-HCB
Specification:
Operating temperature: -55℃ to 125℃
Fully shrink temperature: ≥110℃
RoHS compliant
Color: Black,white,red,blue,yellow,grean,brown,gray,orange,purple
Ratio of shrinking: 2:1
Flame retardant, Ultra Thin Wall
Halogen-Free, Low Smoke
| SIZE | AS SUPPLIED | AFTER RECOVERY | STANDARD PACKAGE | ||
| Inch | mm | INTERNAL DIAMETER mm | INTERNAL DIAMETER mm | WALL THICKNESS mm | SPOOL LENGTH M/spool |
| 1/16 | 1 | 1.40±0.20 | ≤0.65 | 0.20±0.10 | 200 |
| | 1.5 | 1.90±0.20 | ≤0.85 | 0.20±0.10 | 200 |
| 3/32 | 2 | 2.40±0.20 | ≤1.00 | 0.22±0.10 | 200 |
| | 2.5 | 2.90±0.20 | ≤1.30 | 0.25±0.10 | 200 |
| 1/8 | 3 | 3.40±0.20 | ≤1.50 | 0.28±0.10 | 200 |
| | 3.5 | 3.90±0.20 | ≤1.80 | 0.28±0.10 | 200 |
| | 4 | 4.40±0.20 | ≤2.00 | 0.30±0.10 | 200 |
| 3/16 | 4.5 | 4.90±0.20 | ≤2.30 | 0.30±0.10 | 200 |
| | 5 | 5.50±0.20 | ≤2.50 | 0.32±0.10 | 100 |
| 1/4 | 6 | 6.50±0.20 | ≤3.00 | 0.32±0.10 | 100 |
| 5/16 | 7 | 7.50±0.30 | ≤3.50 | 0.32±0.10 | 100 |
| | 8 | 8.50±0.30 | ≤4.00 | 0.32±0.10 | 100 |
| 3/8 | 9 | 9.50±0.30 | ≤4.50 | 0.35±0.10 | 100 |
| | 10 | 10.50±0.30 | ≤5.00 | 0.35±0.10 | 100 |
| | 11 | 11.50±0.30 | ≤5.50 | 0.40±0.10 | 100 |
| 1/2 | 12 | 12.50±0.30 | ≤6.00 | 0.40±0.10 | 100 |
| | 13 | 13.50±0.30 | ≤6.50 | 0.40±0.10 | 100 |
| | 14 | 14.50±0.30 | ≤7.00 | 0.40±0.10 | 100 |
| 5/8 | 15 | 15.50±0.40 | ≤7.50 | 0.40±0.10 | 100 |
| | 16 | 16.50±0.40 | ≤8.00 | 0.40±0.10 | 100 |
| | 17 | 17.50±0.40 | ≤8.50 | 0.40±0.10 | 100 |
| 3/4 | 18 | 18.50±0.40 | ≤9.00 | 0.42±0.10 | 100 |
| | 20 | 20.50±0.50 | ≤10.0 | 0.45±0.10 | 100 |
| | 22 | 22.50±0.50 | ≤11.0 | 0.45±0.10 | 100 |
| 1 | 25 | 25.50±0.50 | ≤12.5 | 0.45±0.10 | 50 |
| | 28 | 28.50±0.50 | ≤14.0 | 0. 60 ±0.10 | 50 |
