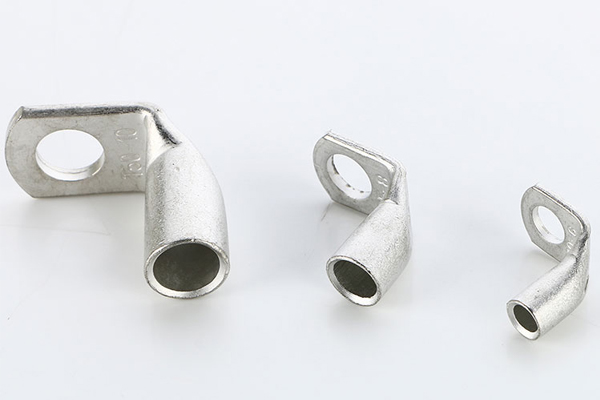

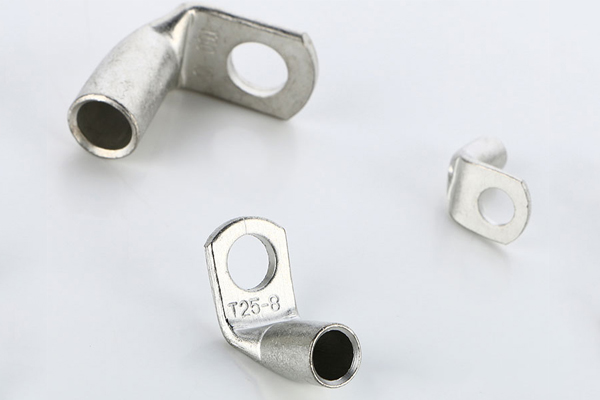

90 Degree Lugs Crimping Lugs GC90
Specification:
Material: Copper, Tin-plated copper, Tinned Copper
Working Temperature: -40ºC to 150ºC
Certification: CE, RoHS, UL Approved

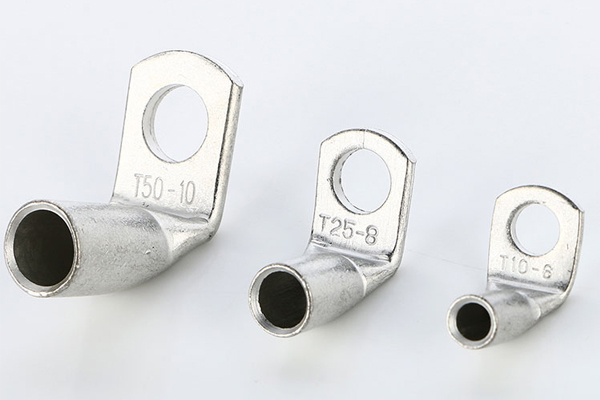

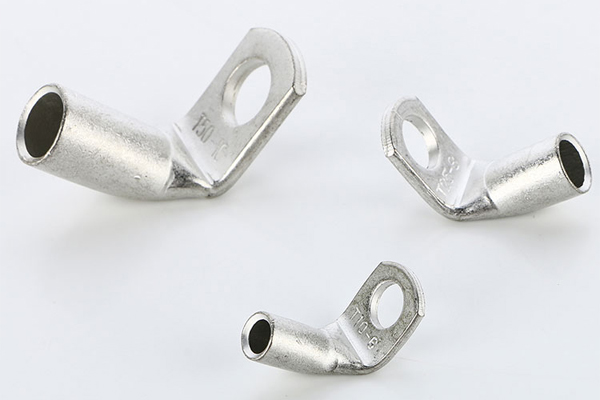

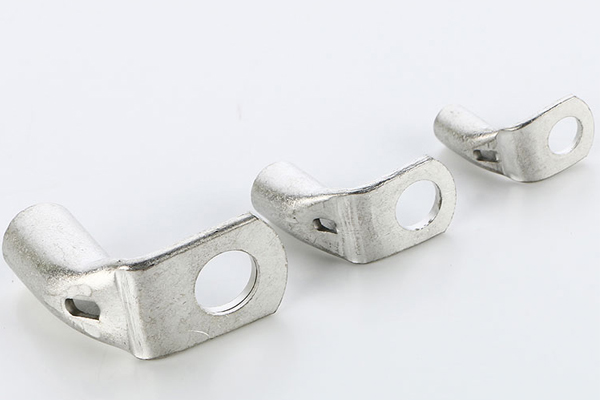

The 90 Degree Lugs are made of the high-quality copper which ensures good conductivity at its user end. The 90 Degree Lugs are tin plated to provide excellent corrosion resistance.

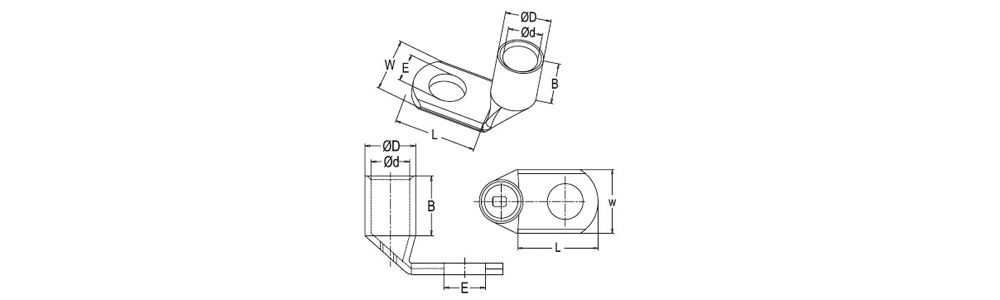

(In mm)
| Item No. | E | Dφ | dφ | W | B | L |
| GC90-10/6 | 6.4 | 6.9 | 4.7 | 11.9 | 10.5 | 12.5 |
| GC90-10/8 | 8.3 | 6.9 | 4.7 | 13.5 | 10.5 | 15.5 |
| GC90-16/6 | 6.4 | 7.8 | 5.6 | 11.9 | 11 | 12 |
| GC90-16/8 | 8.6 | 7.8 | 5.6 | 13.5 | 11 | 15.5 |
| GC90-25/8 | 8.3 | 9.5 | 7.1 | 14 | 13 | 16 |
| GC90-25/10 | 10.5 | 9.5 | 7.1 | 16 | 13 | 19 |
| GC90-35/8 | 8.3 | 11 | 8.2 | 16.5 | 16 | 18 |
| GC90-35/10 | 10.5 | 11 | 8.2 | 16.5 | 16 | 22 |
| GC90-50/10 | 10.5 | 12.5 | 9.5 | 17.9 | 19 | 22 |
| GC90-50/12 | 13 | 12.5 | 9.5 | 17.9 | 19 | 22 |
| GC90-70/10 | 10.5 | 15 | 11.5 | 21.5 | 21 | 22 |
| GC90-70/12 | 13 | 15 | 11.5 | 21.5 | 21 | 22 |
| GC90-95/14 | 14.5 | 17 | 13.5 | 24.7 | 24 | 33 |
| GC90-95/16 | 16.5 | 17 | 13.5 | 24.7 | 24 | 33 |
| GC90-120/14 | 14.5 | 20 | 15.6 | 28.9 | 27 | 33 |
| GC90-120/16 | 16.5 | 20 | 15.6 | 28.9 | 27 | 33 |
| GC90-150/14 | 14.5 | 21 | 16.5 | 30.4 | 32 | 33 |
| GC90-150/16 | 16.5 | 21 | 16.5 | 30.4 | 32 | 33 |
| GC90-185/16 | 16.5 | 23.6 | 18.4 | 34 | 34 | 35 |
| GC90-240/16 | 16.5 | 26.4 | 21.2 | 41 | 38 | 35 |
