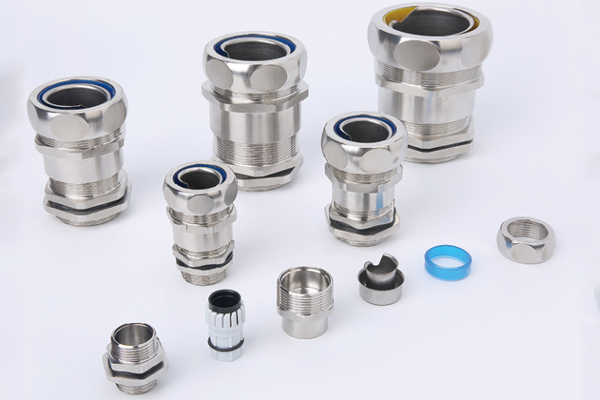

Hose Connector Brass Locking Joint SRPG

Category:

Hose Connector Brass Locking Joint SRPG

Specification:

Material:
Nickel-plated Brass
Retainer: TPE
Ferrule: Galvanized Steel
Sealing: Modified Rubber
Sealing Ring: PA6

Certificate: CE, RoHS
Protection Rating: IP65
Working Temperature:
Static state: -60°C to 100°C, short tim e to 120°C

(In mm)

Item Cable Range Thread Length GL Spanner size Conduit Size
(Nominal bore diameter)
Item No.
PG7-Φ6 3-5.5 6 18/17/14 Φ6 SRPG7-Φ6
PG9-Φ8 4-7 7 20/19/17 Φ8 SRPG9-Φ8
PG11-Φ10 5-9 7 24/23/20 Φ10 SRPG11-Φ10
PG13.5-Φ12 6-11 7 26/26/22 Φ12 SRPG13.5-Φ12
PG16-Φ15 8-14 7 30/30/24 Φ15 SRPG16-Φ15
PG21-Φ20 13-18 8 36/34/30 Φ20 SRPG21-Φ20
PG29-Φ25 15-22 8 45/45/40 Φ25 SRPG29-Φ25
PG36-Φ32 22-30 9 55/52/50 Φ32 SRPG36-Φ32
PG42-Φ38 30-35 9 60/58/58 Φ38 SRPG42-Φ38
PG48-Φ51 37-44 10 75/75/65 Φ51 SRPG48-Φ51
