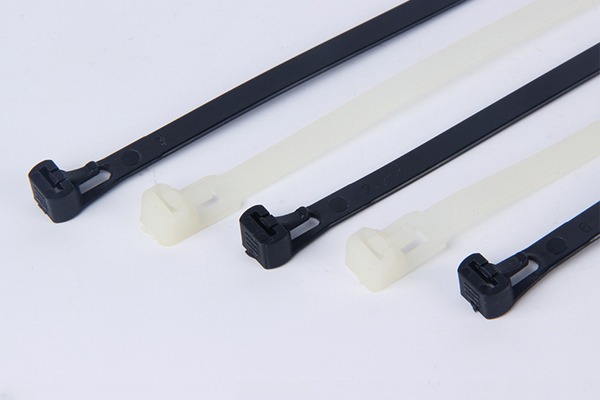

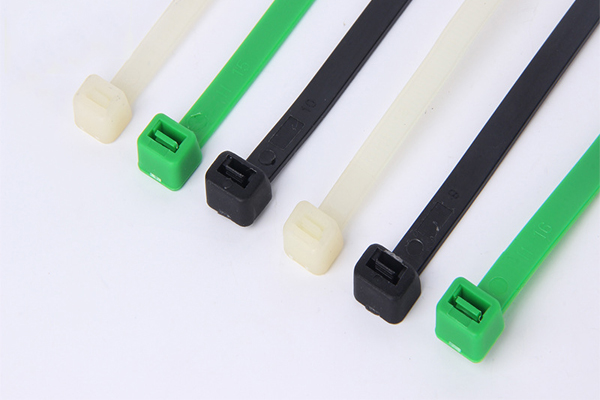

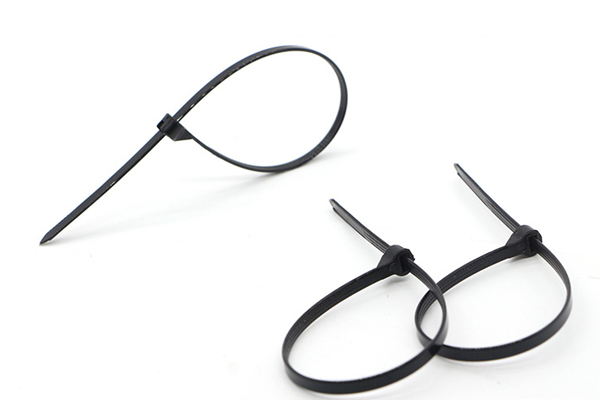

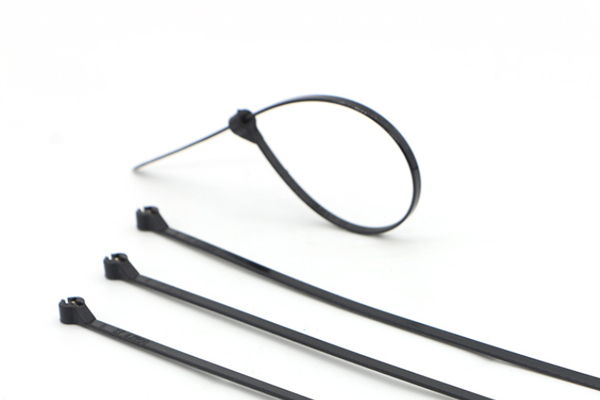

Black Plastic Cable Ties Nylon Wire Ties NZ-2
Specification：
Material: Nylon 66
Working Temperature: -40℃ to 85℃
Color: Black, white, customized available
Flammability: UL94V-2
UV-resistant, Halogen Free, Non-toxic
Features: A variety of materials and colors is available for specific applications. Black Plastic Cable Ties curved tip is easy to pick up from flat surfaces and allows faster initial threading to speed installation.
| Item No | Length (mm) |
Width (mm) |
Thickness (mm) |
Max.Bundle Dia. (mm) |
Min. Tensile Strength | |
| N | lbs | |||||
| NZ-2(3 x 60) | 60 | 2.5 | 1.0 | 11 | 80 | 18 |
| NZ-2(3×80) | 80 | 2.5 | 1.0 | 15 | ||
| NZ-2(3×100) | 100 | 2.5 | 1.0 | 22 | ||
| NZ-2(3×120) | 120 | 2.5 | 1.1 | 30 | ||
| NZ-2(3×150) | 150 | 2.5 | 1.1 | 35 | ||
| NZ-2(3×160) | 160 | 2.5 | 1.1 | 40 | ||
| NZ-2(3×200) | 200 | 2.5 | 1.1 | 53 | ||
| NZ-2(4×120) | 120 | 3.6 | 1.2 | 30 | 180 | 40 |
| NZ-2(4×140) | 140 | 3.6 | 1.3 | 33 | ||
| NZ-2(4×150) | 150 | 3.6 | 1.3 | 35 | ||
| NZ-2(4×180) | 180 | 3.6 | 1.3 | 44 | ||
| NZ-2(4×200) | 200 | 3.6 | 1.3 | 53 | ||
| NZ-2(4 x 250) | 250 | 3.6 | 1.35 | 65 | ||
| NZ-2(4×300) | 300 | 3.6 | 1.35 | 76 | ||
| NZ-2(4×370) | 370 | 3.6 | 1.35 | 102 | ||
| NZ-2(5×120) | 120 | 4.8 | 1.35 | 24 | 220 | 50 |
| NZ-2(5×150) | 150 | 4.8 | 1.35 | 35 | ||
| NZ-2(5×180) | 180 | 4.8 | 1.35 | 46 | ||
| NZ-2(5 x 200) | 200 | 4.8 | 1.3 | 50 | ||
| NZ-2(5 x 250) | 250 | 4.8 | 1.45 | 60 | ||
| NZ-2(5 x 280) | 280 | 4.8 | 1.45 | 70 | ||
| NZ-2(5 x 300) | 300 | 4.8 | 1.45 | 76 | ||
| NZ-2(5 x 350) | 350 | 4.8 | 1.45 | 83 | ||
| NZ-2(5 x 380) | 380 | 4.8 | 1.45 | 102 | ||
| NZ-2(5×400) | 400 | 4.8 | 1.45 | 105 | ||
| NZ-2(5×430) | 430 | 4.8 | 1.45 | 110 | ||
| NZ-2(5×450) | 450 | 4.8 | 1.45 | 116 | ||
| NZ-2(5x 500) | 500 | 4.8 | 1.45 | 145 | ||
| NZ-2(8 x 200) | 200 | 7.5 | 1.7 | 50 | 550 | 120 |
| NZ-2(8 x 250) | 250 | 7.5 | 1.7 | 65 | ||
| NZ-2(8 x 300) | 300 | 7.5 | 1.6 | 76 | ||
| NZ-2(8x 350) | 350 | 7.5 | 1.6 | 83 | ||
| NZ-2(8 x 380) | 380 | 7.5 | 1.7 | 102 | ||
| NZ-2(8×400) | 400 | 7.5 | 1.7 | 105 | ||
| NZ-2(8×450) | 450 | 7.5 | 1.7 | 116 | ||
| NZ-2(8x 500) | 500 | 7.5 | 1.7 | 132 | ||
| NZ-2(8 x 550) | 550 | 7.5 | 1.8 | 145 | ||
| NZ-2(8 x 760) | 760 | 7.5 | 1.9 | 228 | ||
| NZ-2(9×400) | 400 | 9.0 | 1.9 | 105 | 800 | 175 |
| NZ-2(9×450) | 450 | 9.0 | 1.9 | 116 | ||
| NZ-2(9 x 500) | 500 | 9.0 | 1.9 | 132 | ||
| NZ-2(9 x 550) | 550 | 9.0 | 1.9 | 145 | ||
| NZ-2(9 x 650) | 650 | 9.0 | 1.9 | 178 | ||
| NZ-2(9 x 700) | 700 | 9.0 | 1.9 | 205 | ||
| NZ-2(9 x 760) | 760 | 9.0 | 1.9 | 225 | ||
| NZ-2(9 x 920) | 920 | 9.0 | 2.1 | 263 | ||
| NZ-2(9x 1020) | 1020 | 9.0 | 2.1 | 295 | ||
| NZ-2(12×450) | 450 | 12.0 | 2.3 | 116 | 1140 | 256 |
| NZ-2(12×500) | 500 | 12.0 | 2.3 | 132 | ||
