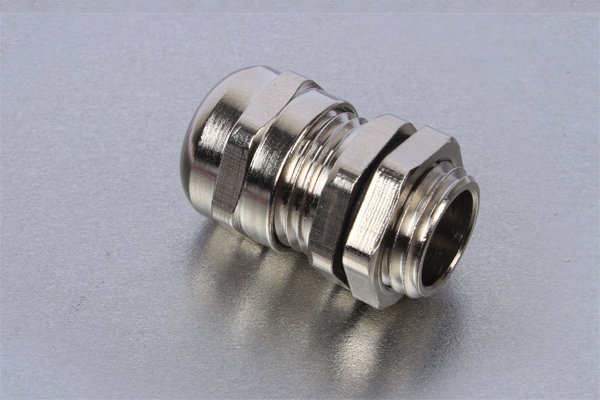

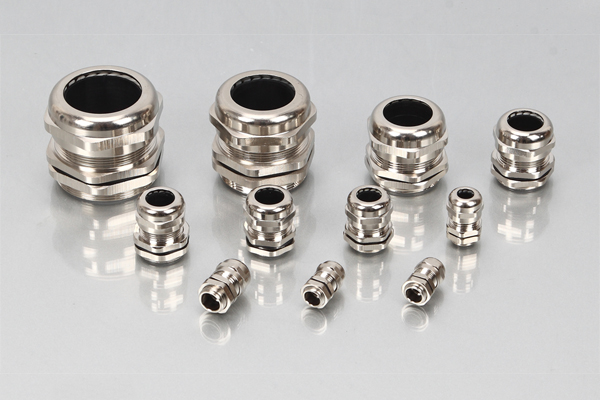

Brass Cable Gland Waterproof IP68
Specification:
Material:
Nickel-plated brass
Claw: PA66 (Nylon) , UL94-V2
Hermetic seal: NBR, Silicone rubber
O-ring: NBR, Silicone rubber
Protection rating: IP68 -10 bar
Work / Operating Temperature:
Static state: -40 °C to 100 ° C, Short time to 120°C;
Dynamic state: -20 °C to 80° C, Short time to 100°C
Certificate: CE, RoHS approved

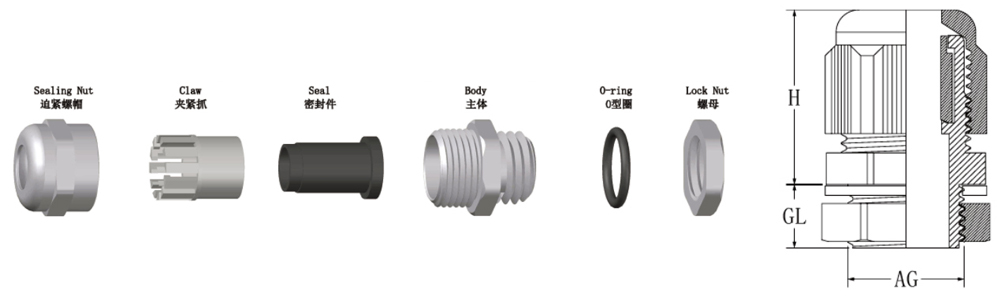

(In mm)
| Item | Cable Range | Thread Length GL |
Thread O.D. AG |
Joint Length H |
Spanner size | Item No. |
| G1/4′ | 3-6.5 | 6.5 | 13.1 | 13.5 | 15 | BG1/4 |
| G3/8″ | 4-8 | 8 | 16.6 | 17 | 19 | BG3/8 |
| G1/2″ | 6-12 | 8 | 20.9 | 22 | 22/23 | BG1/2 |
| G3/4″ | 13-18 | 9 | 26.4 | 25 | 30 | BG3/4 |
| G1″ | 18-25 | 10 | 32.2 | 29 | 40 | BG1 |
| G1-1/4″ | 25-33 | 11 | 41.9 | 35 | 50 | BG1-1/4 |
| G1-1/2″ | 32-38 | 12 | 47.8 | 37 | 57/55 | BG1-1/2 |
| G2″ | 37-44 | 14 | 59.6 | 38 | 65 | BG2 |
| G2-1/2″ | 42-52 | 16 | 75.1 | 42 | 78 | BG2-1/2 |
| G3″ | 65-70 | 18 | 88 | 45 | 94 | BG3 |
| NPT 1/4″ | 3-6.5 | 6.5 | 13.1 | 13.5 | 15 | BNPT1/4 |
| NPT3/8″ | 4-8 | 8 | 16.6 | 17 | 19 | BNPT3/8 |
| NPT 1/2″ | 6-12 | 8 | 20.9 | 22 | 22/23 | BNPT1/2 |
| NPT3/4″ | 13-18 | 9 | 26.4 | 25 | 30 | BNPT3/4 |
| NPT1″ | 18-25 | 10 | 32.2 | 29 | 40 | BNPT1 |
| NPT 1-1/4″ | 25-33 | 11 | 41.9 | 35 | 50 | BNPT1-1/4 |
| NPT 1-1/2″ | 32-38 | 12 | 47.8 | 37 | 57/55 | BNPT1-1/2 |
| NPT2″ | 37-44 | 14 | 59.6 | 38 | 65 | BNPT2 |
| NPT2-1/2″ | 42-52 | 16 | W75.1 | 42 | 78 | BNPT2-1/2 |
