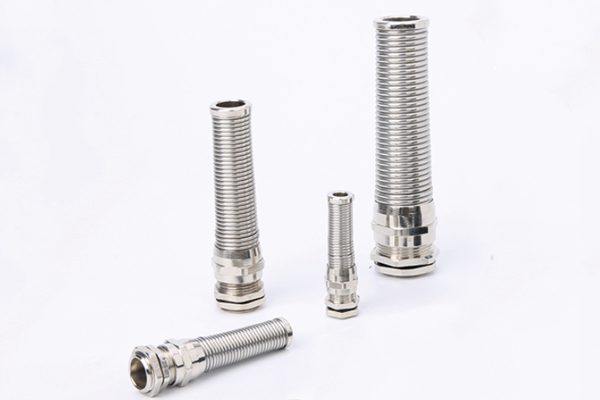

IP68 Brass Spiral Support Gland with Locknut BNZM/PG

Category:

IP68 Brass Spiral Support Gland with Locknut

Specification:

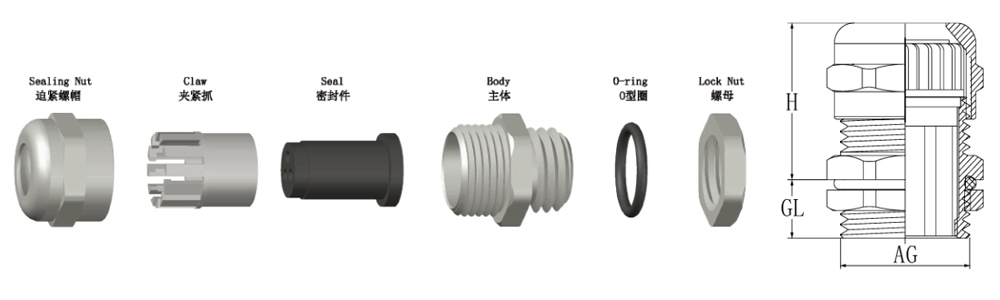

Material:
Nickel-plated brass
Claw: PA66 (Nylon) , UL94-V2
Hermetic seal: NBR, Silicone rubber
O-ring: NBR, Silicone rubber
Protection rating: IP68 -10 bar
Work / Operating Temperature:
Static state: -40 °C to 100 ° C, Short time to 120°C;
Dynamic state: -20 °C to 80° C, Short time to 100°C
Certificate: CE, RoHS approved
Reliable bending and anti-kink protection. The cable glands have the added feature of a spiral cable support which reduces the possibility of damage to the cable caused by pulling.

(In mm)

Item Range Thread Length
GL
Mounting hole Joint Length
H
Spanner size Item No.
M 12×1.5 3-6.5 6.5 12 65 14 BNZM12
M16x1.5 4-8 8 16 75 18 BNZM16
M 18×1.5 5-10 8 18 77 20 BNZM18
M20x1.5 6-12 8 20 80 22 BNZM20
M22x1.5 10-14 8 22 98 24 BNZM22
M25x1.5 13-18 9 25 90 27 BNZM25
M30x1.5 13-18 9 25 100 30 BNZM30
PG7 3-6.5 6.5 12.5 65.0 14/15 BNZPG7
PG9 4-8 8 15.2 68.0 17/18 BNZPG9
PG11 5-10 8 18.6 75.0 20/21 BNZPG11
PG13.5 6-12 8 20.4 7 5.0 22/23 BNZPG13.5
PG16 10-14 8 22.5 80.0 24/25 BNZPG16
PG21 13-18 9 28.3 100.0 30 BNZPG21
