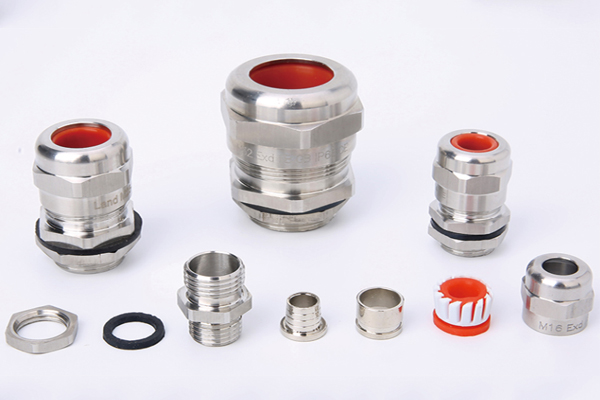

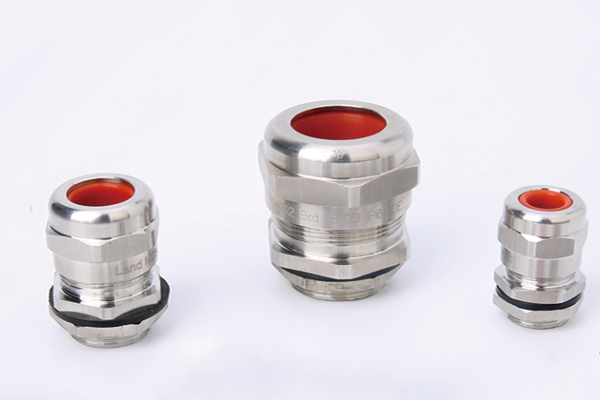

Nickel Plated Brass Explosion-proof Armored Cable Connector Explosion-proof Halogen Free
Specification:
Material: Nickel-plated Brass
Sealing: Silicone Rubber, Neoprene
Treatment of surface: Nickel-plated
Explosion-proof: Exd IIC Gb
Flame Rating: UL94-V0
Protection Rating: IP66 – 10bar
Working Temperature:
Static state: -60°C to 100°C, short time to 120°C
Dynamic state: -20 C to 80 °C, short time to 100°C
Halogen Free
(In mm)

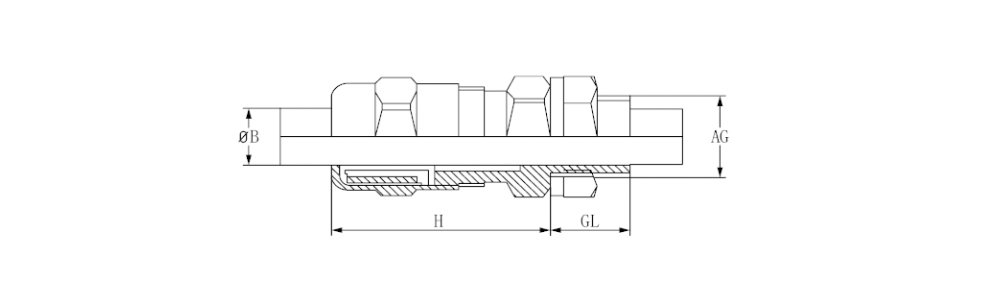

| Item No. | Application cable range | Armor/Knit | AG | L | GL | Hex size | ||||
| Outer Shealth | Inner Shealth | Dirction 1 | Direction 2 | Metric | Inch | Across Flats | Across Corners | |||
| BAC-1Ka | Φ 5-Φ8 | Φ3-Φ5 | 0.9/1.25 | 0/0.7 | M20X1.5 | 1/2″ | 30 | 15 | 24 | 28 |
| BAC-1Kb | Φ6-Φ10 | Φ4-Φ8 | 0.9/1.25 | 0/0.7 | M20X1.5 | 1/2″ | 30 | 15 | 24 | 28 |
| BAC-1K | Φ9-Φ14 | Φ6-Φ11 | 0.9/1.25 | 0/0.7 | M20X1.5 | 1/2″ | 30 | 5 | 24 | 28 |
| BAC-2K | Φ13-Φ18 | Φ9-Φ14 | 0.9/1.25 | 0/0.7 | M20X1.5 | 1/2″ | 32 | 15 | 30 | 35 |
| BAC-3Ka | Φ15-Φ21 | Φ11-Φ17 | 1.25/1.6 | 0/0.7 | M25X1.5 | 3/4″ 1″ | 35 | 15 | 36 | 42 |
| BAC-3K | Φ17-Φ24 | Φ13-Φ20 | 1.25/1.6 | 0/0.7 | M25X1.5 | 3/4″ 1″ | 35 | 15 | 40 | 47 |
| BAC-4Ka | Φ20-Φ28 | Φ16-Φ23 | 1.6/2.0 | 0.6/1.2 | M32X1.5 | 1″ 1 1/4″ | 39 | 15 | 46 | 53 |
| BAC-4K | Φ23-Φ32 | Φ18-Φ26 | 1.6/2.0 | 0.6/1.2 | M32X1.5 | 1″ 1 1/4″ | 39 | 15 | 46 | 53 |
| BAC-5Ka | Φ26-Φ35 | Φ21-Φ29 | 1.6/2.0 | 0.6/1.2 | M40X1.5 | 1 1/4″ 11/2″ | 43 | 15 | 55 | 64 |
| BAC-5K | Φ31-Φ38 | Φ25-Φ32 | 1.6/2.0 | 0.6/1.2 | M40X1.5 | 1 1/4″ 11/2″ | 43 | 15 | 55 | 64 |
| BAC-6Ka | Φ34-Φ41 | Φ28-Φ35 | 1.6/2.0 | 0.6/1.2 | M50X1.5 | 1 1/2″ 2″ | 48 | 15 | 65 | 75 |
| BAC-6K | Φ37-Φ44 | Φ31-Φ38 | 1.8/2.5 | 0.6/1.2 | M50X1.5 | 1 1/2″ 2′ | 48 | 15 | 65 | 75 |
| BAC-7Ka | Φ40-Φ50 | Φ33-Φ43 | 1.8/2.5 | 0.6/1.2 | M63X1.5 | 2″ 2 1/2″ | 53 | 16 | 80 | 92 |
| BAC-7K | Φ43-Φ55 | Φ36-Φ47 | 1.8/2.5 | 0.6/1.2 | M63X1.5 | 2’2 1/2′ | 53 | 16 | 80 | 92 |
| BAC-8Ka | Φ50-Φ63 | Φ42-Φ53 | 1.8/2.5 | 1.0/1.5 | M75X1.5 | 2 1/2-3- | 58 | 16 | 96 | 111 |
| BAC-8K | Φ54-Φ68 | Φ45-Φ58 | 1.8/2.5 | 1.0/1.5 | M75X1.5 | 2 1/2.3. | 58 | 16 | 86 | 111 |
| BAC-9Ka | Φ62-Φ72 | Φ52-Φ62 | 1.8/2.5 | 1.0/1.5 | M87X1.5 | 3’3 1/2′ | 64 | 18 | 114 | 134 |
| BAC-9K | Φ67-Φ79 | Φ56-Φ67 | 1.8/2.5 | 1.0/1.5 | M87X1.5 | 3’3 1/2′ | 64 | 18 | 114 | 134 |
| BAC-10Ka | Φ78-Φ89 | Φ65-Φ75 | 1.8/2.5 | 1.0/1.5 | M100X1.5 | 4″ | 70 | 18 | 128 | 148 |
| BAC-10K | Φ88-Φ104.5 | Φ74-Φ91 | 1.8/2.5 | 1.0/1.5 | M100X1.5 | 4″ | 70 | 18 | 128 | 148 |
