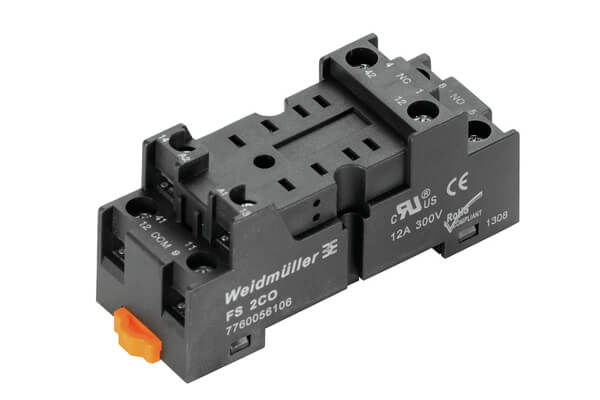

7760056106 FS 2CO D-SERIES DRM, Relay bases, No. of contacts: 2, CO contact, Continuous current: 12 A, Screw connection

Category:

7760056106 FS 2CO D-SERIES DRM, Relay bases, No. of contacts: 2, CO contact, Continuous current: 12 A, Screw connection

Specification:

Type FS 2CO
Order No. 7760056106
Version D-SERIES DRM, Relay bases, No. of contacts: 2, CO contact, Continuous current: 12 A, Screw connection
Rated switching voltage 250 V AC
Max. switching voltage, AC 300 V
Continuous current 12 A
Surge voltage category II
Pollution severity 2
Protection degree IP10
Dielectric strength, Input/Output 2 kVeff / 1 min
Creepage and clearance distance input – output ≥ 4 mm
Dielectric strength of neighbouring contacts 2 kVeff / 1 min
Impulse withstand voltage 4 kV (1.2/50 µs)
Wire connection method Screw connection
Stripping length, rated connection 7 mm
Tightening torque, min. 0.5 Nm
Tightening torque, max. 0.8 Nm
Clamping range, min. 0.5 mm²
Clamping range, max. 2.5 mm²
Wire cross-section, solid, min. 0.5 mm²
Wire cross-section, solid, max. 2.5 mm²
Wire connection cross-section, finely stranded, min. 0.5 mm²
Wire connection cross section, finely stranded, max. 2.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min. 0.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max. 1.5 mm²
Conductor cross-section, flexible, AEH (DIN 46228-1), min. 0.5 mm²
Conductor cross-section, flexible, AEH (DIN 46228-1), max. 1.5 mm²
Wire connection M3 forked cable lug (insulated)
Blade size size PH1
