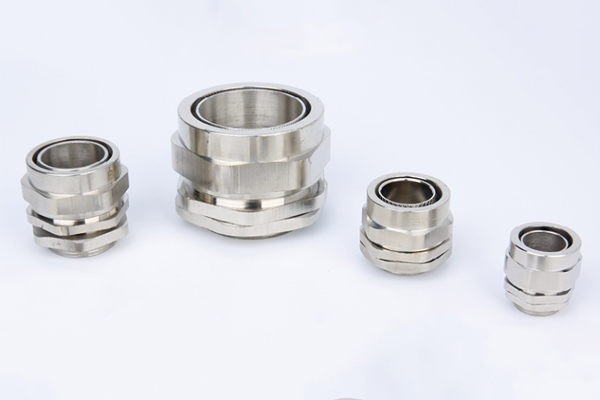

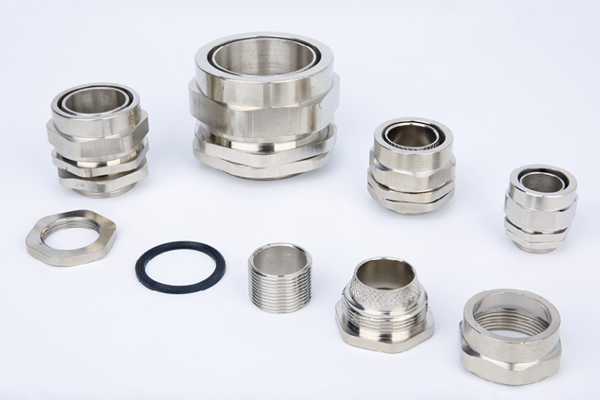

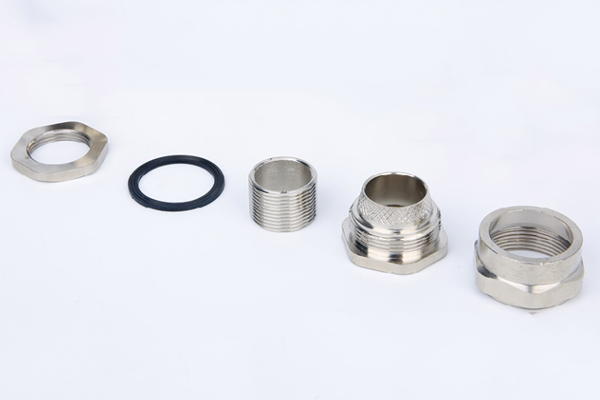

BW Cable Gland Armored Cable Gland BW IP68
Specification:
Material: Nickel-plated Brass
Explosion-proof: Exd IIC Gb
Certificate: CE, RoHS, REACH, EX Available
Protection Rating: IP68 – 10bar
Working Temperature:
Static state: -60°C to 100°C, short time to 120°C
Dynamic state: -20 C to 80 °C, short time to 100°C

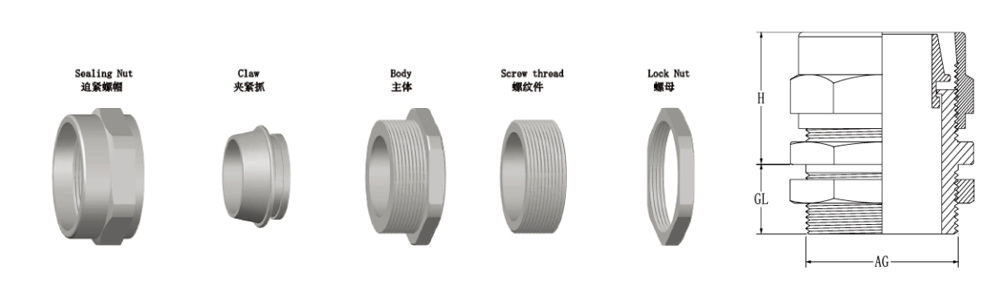

| Item No. | Thread | Cable Range | Thread Length GL |
Thread O.D. AG |
Joint Length H |
Spanner size | |
| Min. | Max. | ||||||
| BW-0 | M20X1.5 | 12.6 | 16.5 | 10 | 20 | 23 | 22 |
| BW-1 | M20X1.5 | 15.9 | 19.0 | 10 | 20 | 26 | 27/25/24 |
| BW-2 | M25X1.5 | 20.6 | 26.5 | 10 | 25 | 29 | 35 |
| BW-3 | M32X1.5 | 26.5 | 33.0 | 10 | 32 | 32 | 40 |
| BW-4 | M40X1.5 | 34.9 | 40.5 | 15 | 40 | 36 | 50 |
| BW-5 | M50X1.5 | 44.5 | 51.0 | 15 | 50 | 45 | 64 |
| BW-6 | M63X1.5 | 57.0 | 67.0 | 15 | 63 | 50 | 82 |
| BW-7 | M75X2 | 68.0 | 79.5 | 15 | 75 | 60 | 96 |
| BW-8 | M82X2 | 74.0 | 83.0 | 15 | 82 | 65 | 100 |
| BW-9 | M90X2 | 82.0 | 91.0 | 15 | 90 | 69 | 110 |
| BW-10 | M100X2 | 93.0 | 100.0 | 15 | 100 | 88 | 120 |
