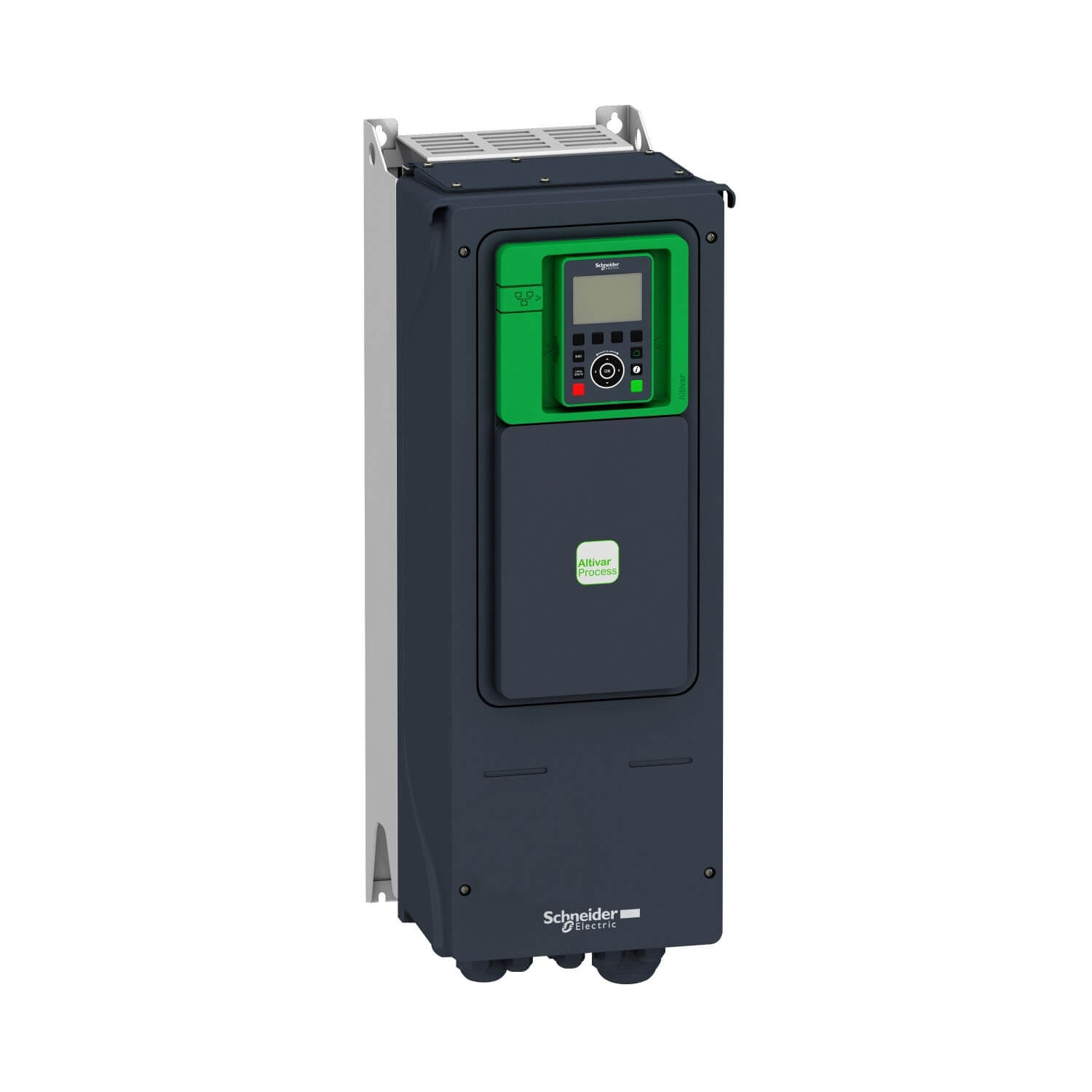

ATV650U30N4 Variable speed drive, ATV650, 3 kW, 400…480V, IP55

Category:

ATV650U30N4 Variable speed drive, ATV650, 3 kW, 400…480V, IP55

Specification:

Main
range of product
Altivar Process ATV600
product or component type
Variable speed drive
product specific application
Process and utilities
device short name
ATV650
variant
Standard version
product destination
Synchronous motors
Asynchronous motors
EMC filter
Integrated with 150 m conforming to EN/IEC 61800-3 category C3
Integrated with 50 m conforming to EN/IEC 61800-3 category C2
IP degree of protection
IP55 conforming to IEC 60529
IP55 conforming to IEC 61800-5-1
type of cooling
Forced convection
supply frequency
50…60 Hz – 5…5 %
network number of phases
3 phases
[Us] rated supply voltage
380…480 V – 15…10 %
motor power kW
1.5 kW (heavy duty)
3 kW (normal duty)
motor power hp
2 hp heavy duty
3 hp heavy duty
line current
3.8 A at 480 V (normal duty)
3.1 A at 380 V (heavy duty)
2.9 A at 480 V (heavy duty)
5.8 A at 380 V (normal duty)
prospective line Isc
50 kA
apparent power
2.4 kVA at 480 V (heavy duty)
4.2 kVA at 480 V (normal duty)
continuous output current
4 A at 4 kHz for heavy duty
7.2 A at 4 kHz for normal duty
maximum transient current
6.2 A during 60 s (normal duty)
8.4 A during 60 s (heavy duty)
asynchronous motor control profile
Variable torque standard
Optimized torque mode
Variable torque standard
synchronous motor control profile
Synchronous reluctance motor
Permanent magnet motor
Output frequency
0.0001…0.5 kHz
speed drive output frequency
0.1…599 Hz
nominal switching frequency
4 kHz
switching frequency
4…12 kHz with derating factor
2…12 kHz adjustable
safety function
STO (safe torque off) SIL 3
discrete input logic
16 preset speeds
communication port protocol
Modbus serial
Ethernet
Modbus serial
option card
Slot A: communication module, Profinet
Slot A: communication module, DeviceNet
Slot A: communication module, Modbus TCP/EtherNet/IP
Slot A: communication module, CANopen daisy chain RJ45
Slot A: communication module, CANopen SUB-D 9
Slot A: communication module, CANopen screw terminals
Slot A/slot B: digital and analog I/O extension module
Slot A/slot B: output relay extension module
Slot A: communication module, Ethernet IP/Modbus TCP/MD-Link
Communication module, BACnet MS/TP
Communication module, Ethernet Powerlink
Slot A: communication module, Profibus DP V1
Complementary
output voltage
<= power supply voltage
permissible temporary current boost
1.5 x In during 60 s (heavy duty)
1.1 x In during 60 s (normal duty)
motor slip compensation
Adjustable
Not available in permanent magnet motor law
Automatic whatever the load
Adjustable
acceleration and deceleration ramps
Linear adjustable separately from 0.01…9999 s
braking to standstill
By DC injection
protection type
Safe torque off: motor
Motor phase break: motor
Thermal protection: drive
Safe torque off: drive
Overheating: drive
Overcurrent between output phases and earth: drive
Overload of output voltage: drive
Short-circuit protection: drive
Motor phase break: drive
Overvoltages on the DC bus: drive
Line supply overvoltage: drive
Line supply undervoltage: drive
Line supply phase loss: drive
Overspeed: drive
Break on the control circuit: drive
Thermal protection: motor
frequency resolution
Analog input: 0.012/50 Hz
Display unit: 0.1 Hz
electrical connection
Line side: screw terminal4…6 mm²/AWG 12…AWG10
Motor: screw terminal4…6 mm²/AWG 12…AWG10
Control: removable screw terminals0.5…1.5 mm²/AWG 20…AWG 16
connector type
RJ45 (on the remote graphic terminal) for Modbus serial
RJ45 (on the remote graphic terminal) for Ethernet/Modbus TCP
physical interface
2-wire RS 485 for Modbus serial
transmission frame
RTU for Modbus serial
transmission rate
4.8, 9.6, 19.2, 38.4 kbit/s for Modbus serial
10/100 Mbit/s for Ethernet IP/Modbus TCP
exchange mode
Half duplex, full duplex, autonegotiation Ethernet/Modbus TCP
data format
8 bits, configurable odd, even or no parity for Modbus serial
type of polarization
No impedance for Modbus serial
number of addresses
1…247 for Modbus serial
method of access
Slave Modbus TCP
supply
Internal supply for reference potentiometer (1 to 10 kOhm): 10.5 V DC +/- 5 %, <10 mA, protection type: overload and short-circuit protection
Internal supply for digital inputs and STO: 24 V DC (21…27 V), <200 mA, protection type: overload and short-circuit protection
External supply for digital inputs: 24 V DC (19…30 V), <1.25 mA, protection type: overload and short-circuit protection
local signalling
3 LEDs (dual colour) for embedded communication status
4 LEDs (dual colour) for communication module status
1 LED (red) for presence of voltage
3 LEDs for local diagnostic
width
264 mm
height
678 mm
depth
272 mm
net weight
10.6 kg
analogue input number
3
analogue input type
AI1, AI2, AI3 software-configurable current: 0…20 mA/4…20 mA, impedance: 250 Ohm, resolution 12 bits
AI1, AI2, AI3 software-configurable voltage: 0…10 V DC, impedance: 30 kOhm, resolution 12 bits
discrete input number
8
discrete input type
DI5, DI6 programmable as pulse input: 0…30 kHz, 24 V DC (<= 30 V)
STOA, STOB safe torque off, 24 V DC (<= 30 V), impedance: > 2.2 kOhm
DI1…DI6 programmable, 24 V DC (<= 30 V), impedance: 3.5 kOhm
input compatibility
DI5, DI6: discrete input level 1 PLC conforming to IEC 65A-68
STOA, STOB: discrete input level 1 PLC conforming to EN/IEC 61131-2
DI1…DI6: discrete input level 1 PLC conforming to EN/IEC 61131-2
discrete input logic
Negative logic (sink) (DI1…DI6), > 16 V (state 0), < 10 V (state 1)
Positive logic (source) (DI5, DI6), < 0.6 V (state 0), > 2.5 V (state 1)
Positive logic (source) (STOA, STOB), < 5 V (state 0), > 11 V (state 1)
Positive logic (source) (DI1…DI6), < 5 V (state 0), > 11 V (state 1)
analogue output number
2
analogue output type
Software-configurable current AO1, AO2: 0…20 mA, resolution 10 bits
Software-configurable voltage AO1, AO2: 0…10 V DC impedance 470 Ohm, resolution 10 bits
sampling duration
5 ms +/- 1 ms (DI5, DI6) – discrete input
5 ms +/- 0.1 ms (AI1, AI2, AI3) – analog input
10 ms +/- 1 ms (AO1) – analog output
2 ms +/- 0.5 ms (DI1…DI4) – discrete input
accuracy
+/- 1 % AO1, AO2 for a temperature variation 60 °C analog output
+/- 0.6 % AI1, AI2, AI3 for a temperature variation 60 °C analog input
linearity error
AO1, AO2: +/- 0.2 % for analog output
AI1, AI2, AI3: +/- 0.15 % of maximum value for analog input
relay output number
3
relay output type
Configurable relay logic R2: sequence relay NO electrical durability 100000 cycles
Configurable relay logic R3: sequence relay NO electrical durability 100000 cycles
Configurable relay logic R1: fault relay NO/NC electrical durability 100000 cycles
refresh time
Relay output (R1, R2, R3): 5 ms (+/- 0.5 ms)
minimum switching current
Relay output R1, R2, R3: 5 mA at 24 V DC
maximum switching current
Relay output R1, R2, R3 on resistive load, cos phi = 1: 3 A at 30 V DC
Relay output R1, R2, R3 on inductive load, cos phi = 0.4 and L/R = 7 ms: 2 A at 250 V AC
Relay output R1, R2, R3 on inductive load, cos phi = 0.4 and L/R = 7 ms: 2 A at 30 V DC
Relay output R1, R2, R3 on resistive load, cos phi = 1: 3 A at 250 V AC
isolation
Between power and control terminals
Variable speed drive application selection
Building – HVAC Compressor centrifugal
Motor power range AC-3
2.2…3 kW at 380…440 V 3 phases
mounting mode
Wall mount
Environment
insulation resistance
> 1 MOhm 500 V DC for 1 minute to earth
noise level
52 dB conforming to 86/188/EEC
operating position
Vertical +/- 10 degree
maximum THDI
<48 % full load conforming to IEC 61000-3-12
electromagnetic compatibility
Radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3
Electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4
1.2/50 µs – 8/20 µs surge immunity test level 3 conforming to IEC 61000-4-5
Conducted radio-frequency immunity test level 3 conforming to IEC 61000-4-6
Electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2
pollution degree
2 conforming to EN/IEC 61800-5-1
vibration resistance
1 gn (f= 13…200 Hz) conforming to IEC 60068-2-6
1.5 mm peak to peak (f= 2…13 Hz) conforming to IEC 60068-2-6
shock resistance
15 gn for 11 ms conforming to IEC 60068-2-27
relative humidity
5…95 % without condensation conforming to IEC 60068-2-3
ambient air temperature for operation
40…50 °C (with derating factor)
-15…40 °C (without derating)
ambient air temperature for storage
-40…70 °C
operating altitude
1000…4800 m with current derating 1 % per 100 m
<= 1000 m without derating
environmental characteristic
Dust pollution resistance class 3S3 conforming to EN/IEC 60721-3-3
Chemical pollution resistance class 3C3 conforming to EN/IEC 60721-3-3
standards
EN/IEC 61800-3
Environment 1 category C2 EN/IEC 61800-3
Environment 2 category C3 EN/IEC 61800-3
EN/IEC 61800-5-1
IEC 61000-3-12
IEC 60721-3
IEC 61508
IEC 13849-1
UL 508C
product certifications
ABS
REACH
UL
DNV-GL
Bureau Veritas
TÜV
CSA
ATEX zone 2/22
marking
CE
Packing Units
Package 1 Weight
21.000 kg
