Copper Lug Terminals Electrical Lugs TL

Category: Cable Lug

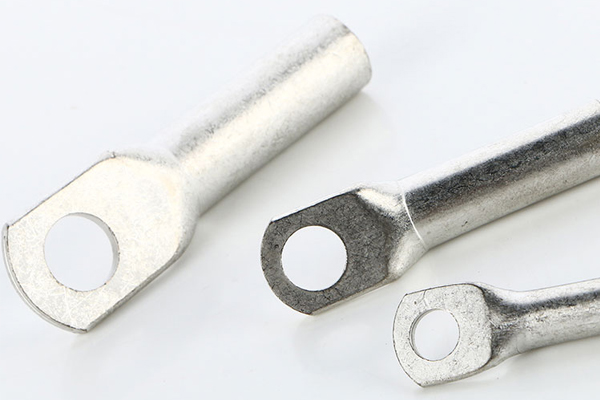

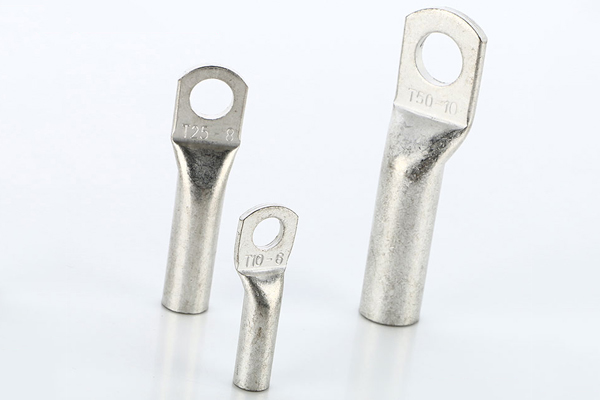

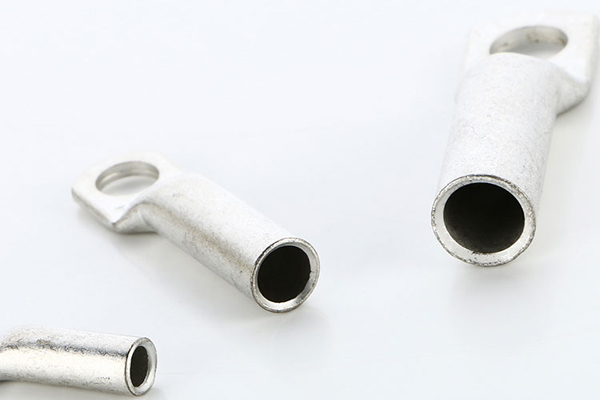

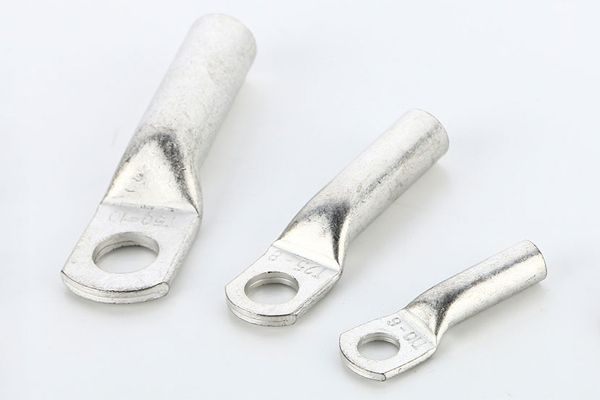

Copper Lug Terminals Electrical Lugs TL

Specification:

Material: Copper, Tin-plated copper, Tinned Copper
Working Temperature: -40ºC to 150ºC
Certification: CE, RoHS, UL Approved
The Copper Lug Terminals are made of the high-quality copper which ensures good conductivity at its user end. The Copper Lug Terminals are tin plated to provide excellent corrosion resistance.

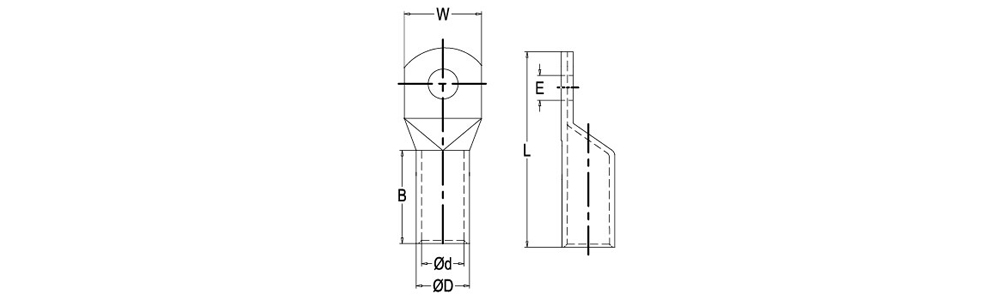

(In mm)

Item No.	E	Dφ	dφ	W	B	L
TL10-6	6.4	6.9	4.7	11.9	19	35
TL10-8	8.3	6.9	4.7	13.5	19	38
TL16-6	6.4	7.8	5.6	11.9	23	39
TL16-8	8.3	7.8	5.6	13.6	23	42
TL25-8	8.3	9.5	7.1	14	29	50
TL25-10	10.5	9.5	7.1	16	29	53
TL35-8	8.3	11	8.2	16.5	30	54
TL35-10	10.5	11	8.2	16.5	30	58
TL50-10	10.5	12.5	9.5	17.9	35	64
TL50-12	13	12.5	9.5	17.9	35	64
TL70-10	10.5	15	11.5	21.5	38	70
TL70-12	13	15	11.5	21.5	38	70
TL95-14	14.5	17	13.5	24.7	43	88
TL95-16	16.5	17	13.5	24.7	43	88
TL120-14	14.5	20	15.6	28.9	49	94
TL120-16	16.5	20	15.6	28.9	49	94
TL150-14	14.5	21	16.5	30.4	56	102
TL150-16	16.5	21	16.5	30.4	56	102
TL185-14	14.5	23.6	18.4	37	63	113
TL185-16	16.5	23.6	18.4	37	63	113
TL240-14	14.5	26.4	21.2	38.5	66	119
TL240-16	16.5	26.4	21.2	38.5	66	119
TL300-14	14.5	28.6	23.4	42	77	133
TL400-16	16.5	32.8	26.8	48	71.7	140
S-TL10-6	6.4	6.8	4.7	11.9	18	35
S-TL10-8	8.3	6.8	4.7	15	18	38
S-TL16-6	6.4	7.8	5.6	11.9	21.5	39
S-TL16-8	8.3	7.8	5.6	15	21.5	41.5
S-TL25-8	8.3	9.4	7.1	15	29	50
S-TL25-10	10.5	9.4	7.1	18	29	55
S-TL35-8	8.3	11.3	8.7	16	31	53
S-TL35-10	10.5	11.3	8.7	19	31	57
S-TL50-10	10.5	12.6	9.8	20	35	63
S-TL50-12	13	12.6	9.8	21	35	67
S-TL70-10	10.5	14.7	11.5	21.5	39	69
S-TL70-12	13.2	14.7	11.5	21.5	39	71
S-TL95-12	13	16.9	13.5	24.7	46	79
S-TL95-14	14.5	16.9	13.5	24.7	46	83
S-TL95-16	16.5	16.9	13.5	27	46	86
S-TL120-1	13	19.9	15.6	28.9	51	87
S-TL120-1	14.5	19.9	15.6	28.9	51	91
S-TL120-1	16.5	19.9	15.6	28.9	52	95
S-TL150-1	13	20.9	16.5	30.4	56	99
S-TL150-1	14.5	20.9	16.5	30.4	56	103
S-TL150-1	16.5	20.9	16.5	30.4	56	103
S-TL185-1	13	23.7	18.8	34	62	108
S-TL185-1	14.5	23.7	18.8	34	62	112
S-TL185-1	16.5	23.7	18.8	34	62	113
S-TL240-1	13	26.2	21.2	38.4	66	114
S-TL240-1	14.5	26.2	21.2	38.4	66	118
S-TL240-1	16.5	26.2	21.2	38.4	66	119
S-TL300-1	14.5	28.6	23.4	41.7	75	132
S-TL300-1	16.5	28.6	23.4	41.7	75	132
S-TL400-1	16.5	32.8	26.8	47.8	79	140
S-TL500-1	16.5	38.4	29.8	54.8	78	143
