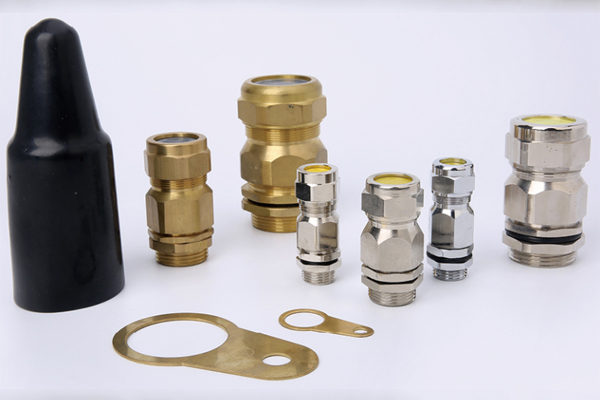

CW Cable Gland Explosion-proof 304 Sealing Cable Gland
Specification:
Material: Stainless Steel SS304/316L
Explosion-proof: Exd IIC Gb
Certificate: CE, RoHS, REACH, EX Available
Protection Rating: IP66 – 10bar
Working Temperature:
Static state: -60°C to 100°C, short time to 120°C
Dynamic state: -20 C to 80 °C, short time to 100°C

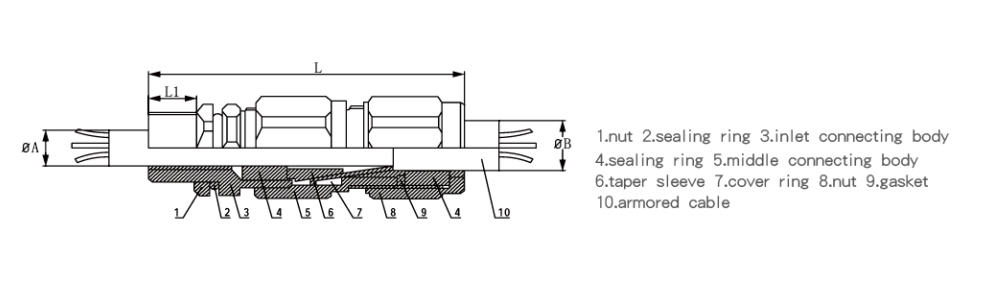

(In mm)
| M Metric thread | G Inch screw threads | Outer diameter cable | Thread length L1 |
Length L |
Length L2 |
EX-mark | Protection Rating | Item No. | |
| Outgoing line A | Incoming line B | ||||||||
| M16X1.5 | — | 5—8 | 7—15 | 15 | 75 | 85 | Exd IIC Gb | IP66 | CW Series |
| M20X1.5 | G1/2 | 5—12 | 8—15 | 15 | 75 | 85 | |||
| M25X1.5 | G3/4 | 8—17 | 11 一20 | 15 | 80 | 87 | |||
| M32X1.5 | G1 | 11—22 | 14-27 | 17 | 88 | 92 | |||
| M40X1.5 | G1 1/4 | 14—28 | 19-33 | 17 | 123 | 95 | |||
| M50X1.5 | G1 1/2 | 16—33 | 22—40 | 17 | 123 | 100 | |||
| M63X1.5 | G2 | 29—43 | 29—50 | 17 | 123 | 110 | |||
| M75X1.5 | G2 1/2 | 38—57 | 35—63 | 17 | 142 | 127 | |||
| M85X1.5 | G3S | 38—72 | 41—77 | 18 | 144 | 127 | |||
| M90X1.5 | G3 | 38—72 | 41-77 | 18 | 161 | 137 | |||
| M100X1.5 | G4S | 48—83 | 55-90 | 18 | 161 | 137 | |||
| M110X1.5 | G4 | 48—94 | 61—104 | 18 | 166 | 137 | |||
