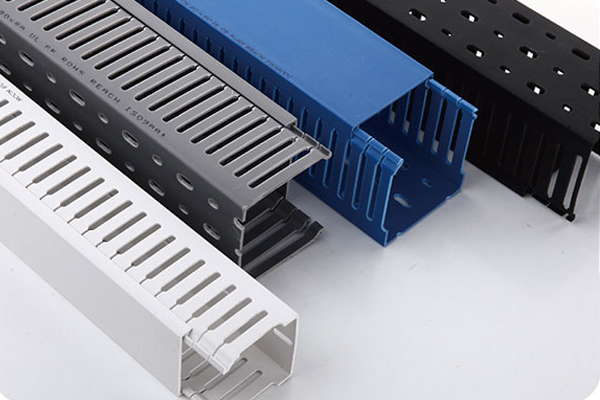

Slotted Cable Ducting Wire Trunking with Lid 5mm*8mm
Specification:
Material: Rigid PVC
Color Option: Gray, white, blue, black and other special colors
Work Temperature: -40°C to 65°C
Certificates: UL, CE, RoHS, REACH
UL Recognized continuous use temperature: 50°C (122°F)
UL94 Flammability Rating of V-0
Provided with mounting holes
Gray is the common color, other colors need more MOQ
Standard Length:2M/PCS
Our Wide Slotted Cable Ducting is designed to provide you with high-quality cable ducting with round edges to protect wires and hands from abrasions.

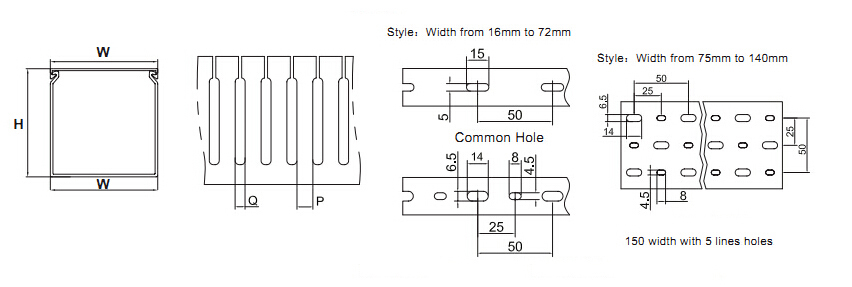

| Item No. | W*H | Hole width | Tooth width | Wire Capacity | Packing/M |
| Q | P | Calculated in terms of 2.0 square feet | |||
| BHVD1616T | 16*16 | 5 | 8 | 3-10pcs | 300M |
| BHVD2516T | 25*16 | 5 | 8 | 8-12pcs | 100M |
| BHVD1520T | 15*20 | 5 | 8 | 8-12pcs | 260M |
| BHVD2020T | 20*20 | 5 | 8 | 10-20pcs | 240M |
| BHVD4020T | 40*20 | 5 | 8 | 15-30pcs | 140M |
| BHVD1525T | 15*25 | 5 | 8 | 5-15pcs | 260M |
| *BHVD2025T | 20*25 | 5 | 8 | 5~15pcs | 200M |
| *BHVD2525T | 25*25 | 5 | 8 | 10~pcs | 200M |
| *BHVD3025T | 30*25 | 5 | 8 | 12~28pcs | 160M |
| BHVD4025T | 40*25 | 5 | 8 | 20-35pcs | 100M |
| BHVD5025T | 50*25 | 5 | 8 | 12-28PCS | 100M |
| BHVD1530T | 15*30 | 5 | 8 | 8-15pcs | 180M |
| BHVD2030T | 20*30 | 5 | 8 | 25-35pcs | 160M |
| BHVD2530T | 25*30 | 5 | 8 | 25~35pcs | 160M |
| BHVD3030T | 3030 | 5 | 8 | 25~35pcs | 140M |
| BHVD4030T | 40*30 | 5 | 8 | 30~40pcs | 100M |
| BHVD5030T | 50*30 | 5 | 8 | 40-50pcs | 80M |
| BHVD6030T | 60*30 | 5 | 8 | 50-60pcs | 60M |
| BHVD2233T | 22*33 | 5 | 8 | 25-35pcs | 160M |
| BHVD3333T | 33*33 | 5 | 8 | 35-45pcs | 160M |
| BHVD2035T | 20*35 | 5 | 8 | 30-40pcs | 100M |
| BHVD3535T | 35*35 | 5 | 8 | 35-45pcs | 112M |
| BHVD5035T | 50*35 | 5 | 8 | 40-60pcs | 88M |
| BHVD2040T | 2040 | 5 | 8 | 16-22pcs | 110M |
| BHVD2540T | 25*40 | 5 | 8 | 20~25pcs | 112M |
| BHVD3540T | 35*40 | 5 | 8 | 35-45pcs | 100M |
| BHVD4040T | 40*40 | 5 | 8 | 60~70pcs | 100M |
| BHVD6040T | 60*40 | 5 | 8 | 100~115pcs | 68M |
| BHVD8040T | 80*40 | 5 | 8 | 120~135pcs | 48M |
| BHVD10040T | 100*40 | 5 | 8 | 120~135pcs | 32M |
| BHVD12040T | 120*40 | 5 | 8 | 140-155pcs | / |
| BHVD2545T | 25*45 | 5 | 8 | 20~25pcs | 104M |
| BHVD3345T | 33*45 | 5 | 8 | 40~55pcs | 108M |
| BHVD4545T | 45*45 | 5 | 8 | 60~70pcs | 72M |
| BHVD6545T | 65*45 | 5 | 8 | 110~120pcs | 56M |
| BHVD2050T | 20*50 | 5 | 8 | 18-28pcs | 100M |
| BHVD2550T | 25*50 | 5 | 8 | 20~30pcs | 100M |
| BHVD3050T | 30*50 | 5 | 8 | 25~40pcs | 84M |
| BHVD3550T | 35*50 | 5 | 8 | 40~60pcs | 80M |
| BHVD4050T | 40*50 | 5 | 8 | 60~70pcs | 68M |
| BHVD4550T | 45*50 | 5 | 8 | 70~80pcs | 60M |
| BHVD5050T | 50*50 | 5 | 8 | 80~90pcs | 60M |
| BHVD5550T | 50*50 | 5 | 8 | 80~90pcs | 48M |
| BHVD6050T | 60*50 | 5 | 8 | 100~120pcs | 48M |
| BHVD7550T | 75*50 | 5 | 8 | 150-170pcs | 40M |
| BHVD8050T | 80*50 | 5 | 8 | 160~180pcs | 40M |
| BHVD10050T | 100*50 | 5 | 8 | 200~250pcs | 26M |
| BHVD12555T | 125*55 | 5 | 8 | 220-270pcs | 20M |
| *BHVD2060T | 20*60 | 5 | 8 | 35~45pcs | 100M |
| BHVD2560T | 25*60 | 5 | 8 | 40~50pcs | 100M |
| BHVD3060T | 30*60 | 5 | 8 | 60~80pcs | 80M |
| BHVD3560T | 35*60 | 5 | 8 | 90-105pcs | 78M |
| BHVD4060T | 40*60 | 5 | 8 | 100~115pcs | 60M |
| BHVD4560T | 45*60 | 5 | 8 | 110~125pcs | 30M |
| BHVD5060T | 50*60 | 5 | 8 | 120~135pcs | 60M |
| BHVD6060T | 60*60 | 5 | 8 | 120~135pcs | 48M |
| BHVD8060T | 80*60 | 5 | 8 | 180~210pcs | 36M |
| BHVD10060T | 100*60 | 5 | 8 | 240~290pcs | 28M |
| BHVD11060T | 110*60 | 5 | 8 | 250~300pcs | 48M |
| *BHVD12060T | 120*60 | 5 | 8 | 260~320pcs | 48M |
| BHVD2565T | 25*65 | 5 | 8 | 40~50pcs | 96M |
| BHVD3365T | 33*65 | 5 | 8 | 40~70pcs | 80M |
| BHVD4565T | 45*65 | 5 | 8 | 110~120pcs | 52M |
| BHVD6565T | 65*65 | 5 | 8 | 180~200pcs | 44M |
| BHVD7265T | 72*65 | 5 | 8 | 180-230pcs | 42M |
| BHVD2575T | 25*75 | 5 | 8 | 180~210pcs | / |
| BHVD5075T | 50*75 | 5 | 8 | 180-210pcs | 42M |
| BHVD7575T | 75*75 | 5 | 8 | 200-240pcs | 40M |
| BHVD10075T | 100*75 | 5 | 8 | 250-290pcs | 24M |
| BHVD2580T | 25*80 | 5 | 8 | 100~120pcs | 72M |
| BHVD3080T | 30*80 | 5 | 8 | 110~125pcs | 56M |
| BHVD3580T | 35*80 | 5 | 8 | 110~130pcs | 56M |
| BHVD4080T | 40*80 | 5 | 8 | 140~160pcs | 48M |
| BHVD4580T | 45*80 | 5 | 8 | 140~160pcs | 40M |
| BHVD5080T | 50*80 | 5 | 8 | 160~180pcs | 40M |
| BHVD5580T | 55*80 | 5 | 8 | 160~180pcs | 32M |
| BHVD6080T | 60*80 | 5 | 8 | 180~210pcs | 32M |
| BHVD8080T | 80*80 | 5 | 8 | 240~290pcs | 24M |
| BHVD10080T | 100*80 | 5 | 8 | 260~350pcs | 24M |
| BHVD12080T | 120*80 | 5 | 8 | 280~380pcs | 16M |
| BHVD14080T | 140*80 | 5 | 8 | 350~450pcs | 16M |
| *BHVD25100T | 25*100 | 5 | 8 | 110~160 pcs | 60M |
| BHVD33100T | 33*100 | 5 | 8 | 130~165 pcs | 44M |
| BHVD40100T | 40*100 | 5 | 8 | 130~175 pcs | 40M |
| BHVD50100T | 50*100 | 5 | 8 | 220~250 pcs | 40M |
| BHVD60100T | 60*100 | 5 | 8 | 240~290 pcs | 32M |
| BHVD70100T | 70*100 | 5 | 8 | 250~340 pcs | 24M |
| BHVD75100T | 75*100 | 5 | 8 | 260~350 pcs | 24M |
| BHVD80100T | 80*100 | 5 | 8 | 260~350 pcs | 24M |
| BHVD100100T | 100*100 | 5 | 8 | 300-400pcs | 24M |
| BHVD120100T | 120*100 | 5 | 8 | 350-450pcs | 16M |
| BHVD150100T | 150*100 | 5 | 8 | 400-650pcs | 16M |
| BHVD150130T | 150*130 | 5 | 8 | 400-650pcs | 16M |
| BHVD100130T | 150*130 | 5 | 8 | 350-450pcs | / |
| BHVD200100T | 200*100 | 5 | 8 | 600-800pcs | 16M |
| BHVD200150T | 200*150 | 5 | 8 | 900-1200pcs | / |
