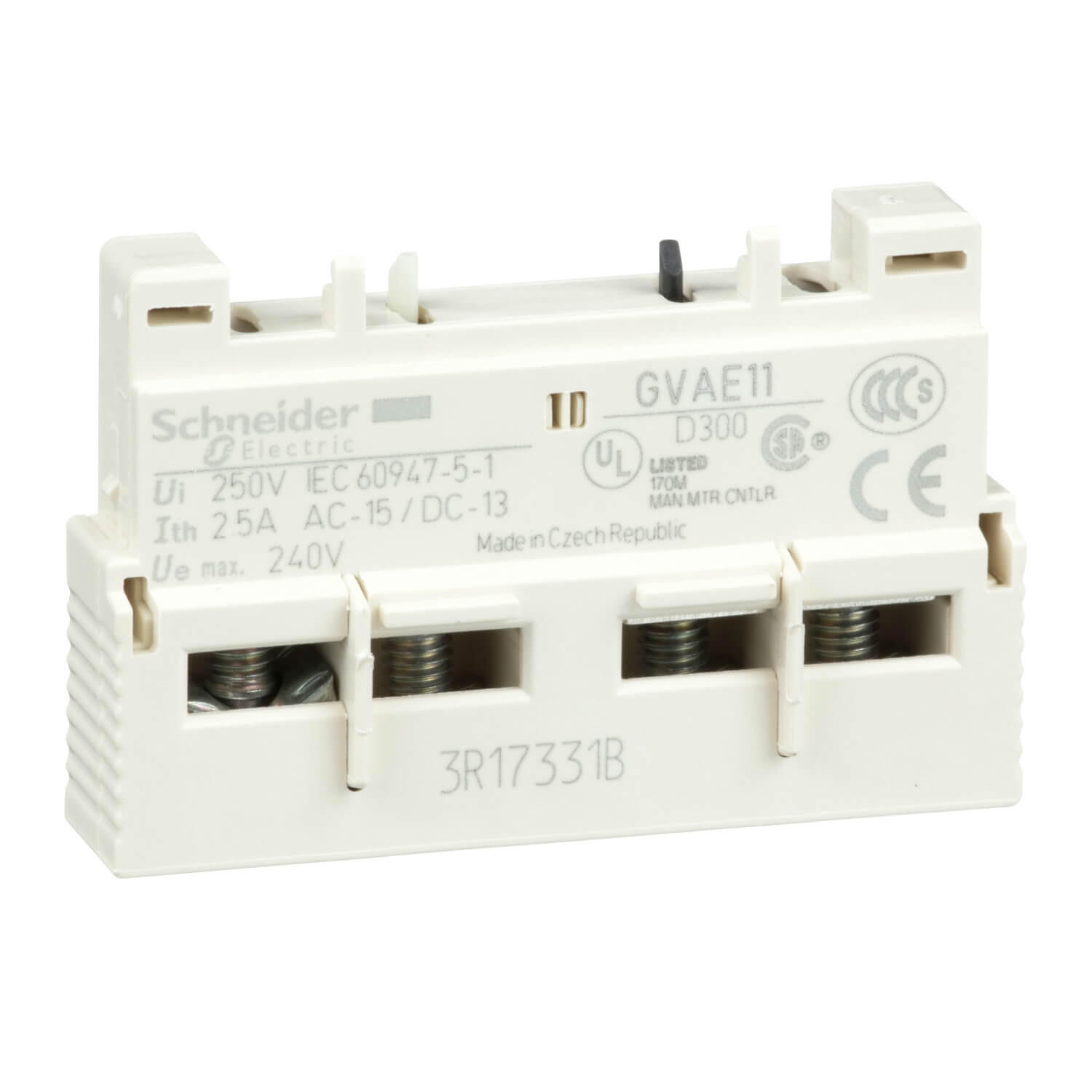

GVAE11 TeSys GV2 and GV3 Manual Starter and Protector, auxiliary contact block, 1 NO and 1 NC, top mount, screw clamp
GVAE11 TeSys GV2 and GV3 Manual Starter and Protector, auxiliary contact block, 1 NO and 1 NC, top mount, screw clamp
Specification:
| range |
TeSys
|
|---|---|
| device short name |
GVAE
|
| product or component type |
Auxiliary contact block
|
| product compatibility |
GV2P
GV2RT GV2ME GV3L GV2LE GV3P GV2L |
| mounting location |
Front side
|
| pole contact composition |
1 NO + 1 NC
|
| connections – terminals |
screw clamp terminals 1 0.00…0.00 in² (1…2.5 mm²)solid
screw clamp terminals 2 0.00…0.00 in² (1…2.5 mm²)solid screw clamp terminals 1 0.00…0.00 in² (0.75…2.5 mm²)flexible without cable end screw clamp terminals 2 0.00…0.00 in² (0.75…2.5 mm²)flexible without cable end screw clamp terminals 1 0.00…0.00 in² (0.75…1.5 mm²)flexible with cable end |
| quantity per set |
Set of 10
|
| [Ui] rated insulation voltage |
300 V UL 508
300 V CSA C22.2 No 14 250 V IEC 60947-1 |
|---|---|
| [Ue] rated operational voltage |
24…240 V AC
24…60 V DC |
| [Ith] conventional free air thermal current |
2.5 A
|
| protection type |
GG fuse 10 A
GB2CB06 circuit breaker 10 A |
| mechanical durability |
100000 cycles
|
| minimum switching current |
5 mA
|
| minimum switching voltage |
17 V
|
| rated operational power in VA |
120 VA 110…120 V AC-15 100000 cycles
120 VA 230…240 V AC-15 100000 cycles 48 VA 24 V AC-15 100000 cycles 60 VA 48 V AC-15 100000 cycles |
| rated operational power in W |
15 W 48 V DC-13 100000 cycles
24 W 24 V DC-13 100000 cycles 9 W 60 V DC-13 100000 cycles |
| tightening torque |
12.39 lbf.in (1.4 N.m) screw clamp terminals
|
| height |
0.43 in (11 mm)
|
| width |
1.77 in (45 mm)
|
| depth |
1.14 in (29 mm)
|
| net weight |
0.04 lb(US) (0.02 kg)
|
