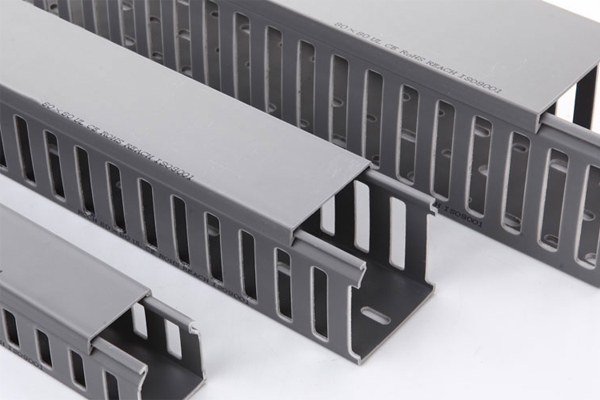

Wide Close Slot Cable Ducting Wiring Duct
Specification:
Material: Rigid PVC

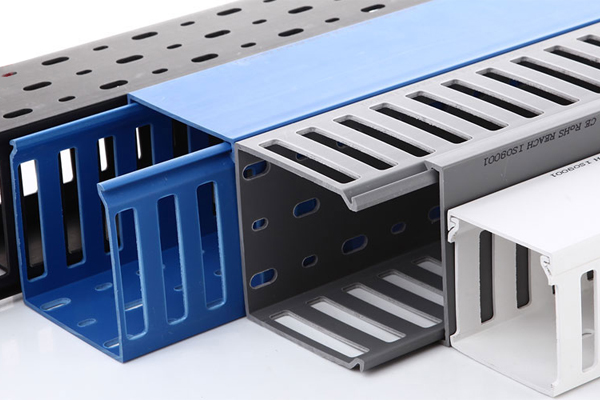

Color Option: Gray, white, blue, black and other special colors
Work Temperature: -40°C to 65°C
Certificates: UL, CE, RoHS, REACH
UL Recognized continuous use temperature: 50°C (122°F)
UL94 Flammability Rating of V-0
Provided with mounting holes
Gray is the common color, other colors need more MOQ
Standard Length:2M/PCS

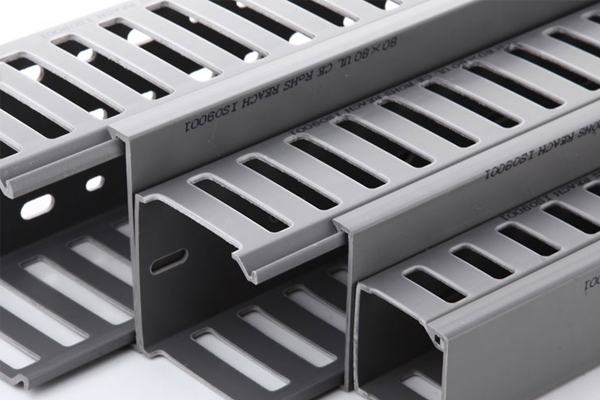

Our Wide Slotted Cable Ducting is designed to provide you with high-quality cable ducting with round edges to protect wires and hands from abrasions.

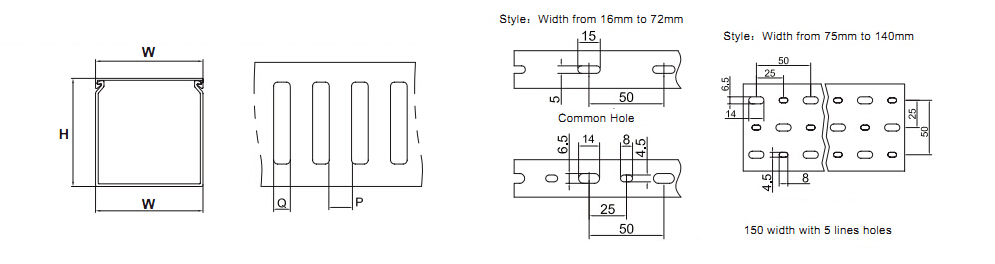

| Item No. | W*H | Hole width | Tooth width | Wire Capacity | Packing/M |
| Q | P | Calculated in terms of 2.0 square feet | |||
| BVD1520C | 15*20 | 8.5 | 11.5 | 8-12pcs | 260M |
| BVD2020C | 20*20 | 8.5 | 11.5 | 10-20pcs | 240M |
| BVD4020C | 40*20 | 8.5 | 11.5 | 15-30pcs | 140M |
| BVD1525C | 15*25 | 8.5 | 11.5 | 5-15pcs | 260M |
| BVD2025C | 20*25 | 8.5 | 11.5 | 5-15pcs | 200M |
| BVD2525C | 25*25 | 8.5 | 11.5 | 10-25pcs | 200M |
| BVD3025C | 30*25 | 8.5 | 11.5 | 12-28pcs | 160M |
| BVD4025C | 40*25 | 8.5 | 11.5 | 20-35pcs | 100M |
| BVD5025C | 50*25 | 8.5 | 11.5 | 12-25pcs | 100M |
| BVD1530C | 15*30 | 8.5 | 11.5 | 8-15pcs | 180M |
| BVD2030C | 20*30 | 8.5 | 11.5 | 25~35pcs | 180M |
| BVD2530C | 25*30 | 8.5 | 11.5 | 25~35pcs | 160M |
| BVD3030C | 30*30 | 8.5 | 11.5 | 25~35pcs | 140M |
| BVD4030C | 40*30 | 8.5 | 11.5 | 30~40pcs | 100M |
| BVD5030C | 50*30 | 8.5 | 11.5 | 40-50pcs | 80M |
| BVD6030C | 60*30 | 8.5 | 11.5 | 50-60pcs | 60M |
| BVD2233C | 22*33 | 8.5 | 11.5 | 25-35pcs | 160M |
| BVD3333C | 33*33 | 8.5 | 11.5 | 35-45pcs | 160M |
| BVD2035C | 20*35 | 8.5 | 11.5 | 30~40pcs | 100M |
| BVD3535C | 35*35 | 8.5 | 11.5 | 35~45pcs | 112M |
| BVD5035C | 50*35 | 8.5 | 11.5 | 40~60pcs | 88M |
| BVD2040C | 20*40 | 8.5 | 11.5 | 16~22pcs | 110M |
| BVD2540C | 25*40 | 8.5 | 11.5 | 20~25pcs | 112M |
| BVD3540C | 35*40 | 8.5 | 11.5 | 35-45pcs | 100M |
| BVD4040C | 40*40 | 8.5 | 11.5 | 60~70pcs | 100M |
| BVD6040C | 60*40 | 8.5 | 11.5 | 100~115pcs | 68M |
| BVD8040C | 80*40 | 8.5 | 11.5 | 120~135pcs | 48M |
| BVD10040C | 100*40 | 8.5 | 11.5 | 120~135pcs | 32M |
| BVD12040C | 120*40 | 8.5 | 11.5 | 140-155pcs | / |
| BVD2545C | 25*45 | 8.5 | 11.5 | 20~25pcs | 104M |
| BVD3345C | 33*45 | 8.5 | 11.5 | 40~55pcs | 108M |
| BVD4545C | 45*45 | 8.5 | 11.5 | 60~70pcs | 72M |
| BVD6545C | 65*45 | 8.5 | 11.5 | 110~120pcs | 56M |
| BVD2050C | 20*50 | 8.5 | 11.5 | 18~28pcs | 120M |
| BVD2550C | 25*50 | 8.5 | 11.5 | 20~30pcs | 100M |
| BVD3050C | 30*50 | 8.5 | 11.5 | 25~40pcs | 84M |
| BVD3550C | 35*50 | 8.5 | 11.5 | 40~60pcs | 80M |
| BVD4050C | 40*50 | 8.5 | 11.5 | 60~70pcs | 68M |
| BVD4550C | 45*50 | 8.5 | 11.5 | 70~80pcs | 60M |
| BVD5050C | 50*50 | 8.5 | 11.5 | 80~90pcs | 60M |
| BVD5550C | 55*50 | 8.5 | 11.5 | 90~100pcs | 60M |
| BVD6050C | 60*50 | 8.5 | 11.5 | 100~120pcs | 48M |
| BVD7550C | 75*50 | 8.5 | 11.5 | 150-170pcs | 40M |
| BVD8050C | 80*50 | 8.5 | 11.5 | 160~180pcs | 40M |
| BVD10050C | 100*50 | 8.5 | 11.5 | 200~250pcs | 26M |
| BVD12555C | 125*55 | 8.5 | 11.5 | 220-270pcs | 20M |
| BVD2060C | 20*60 | 8.5 | 11.5 | 35-45pcs | 100M |
| BVD2560C | 25*60 | 8.5 | 11.5 | 40~50pcs | 100M |
| BVD3060C | 30*60 | 8.5 | 11.5 | 60~80pcs | 80M |
| *BVD3560C | 35*60 | 8.5 | 11.5 | 90~105pcs | 60M |
| BVD4060C | 40*60 | 8.5 | 11.5 | 100~115pcs | 60M |
| BVD4560C | 45*60 | 8.5 | 11.5 | 110~125pcs | 30M |
| BVD5060C | 50*60 | 8.5 | 11.5 | 120~135pcs | 60M |
| BVD6060C | 60*60 | 8.5 | 11.5 | 120~135pcs | 48M |
| BVD8060C | 80*60 | 8.5 | 11.5 | 180~210pcs | 36M |
| BVD10060C | 100*60 | 8.5 | 11.5 | 240~290pcs | 28M |
| BVD11060C | 110*60 | 8.5 | 11.5 | 250~300pcs | 48M |
| *BVD12060C | 120*60 | 8.5 | 11.5 | 260~320pcs | 48M |
| BVD15060C | 150*60 | 8.5 | 11.5 | 300~360pcs | 16M |
| BVD2565C | 25*65 | 8.5 | 11.5 | 40~50pcs | 88M |
| BVD3365C | 33*65 | 8.5 | 11.5 | 40~70pcs | 80M |
| BVD4565C | 45*65 | 8.5 | 11.5 | 110~120pcs | 52M |
| BVD6565C | 65*65 | 8.5 | 11.5 | 180~200pcs | 44M |
| BVD7265C | 72*65 | 8.5 | 11.5 | 180-230pcs | / |
| BVD5075C | 50*75 | 8.5 | 11.5 | 180~210pcs | 32M |
| BVD7575C | 75*75 | 8.5 | 11.5 | 200~240pcs | 24M |
| BVD10075C | 100*75 | 10 | 10 | 250-290pcs | 24M |
| BVD2580C | 25*80 | 10 | 10 | 100~120pcs | 72M |
| BVD3080C | 30*80 | 10 | 10 | 110~125pcs | 56M |
| BVD3580C | 35*80 | 10 | 10 | 110~130pcs | 56M |
| BVD4080C | 40*80 | 10 | 10 | 140~160pcs | 48M |
| BVD4580C | 45*80 | 10 | 10 | 140~160pcs | 40M |
| BVD5080C | 50*80 | 10 | 10 | 160~180pcs | 40M |
| BVD5580C | 55*80 | 10 | 10 | 160~180pcs | 32M |
| BVD6080C | 60*80 | 10 | 10 | 180~210pcs | 32M |
| BVD8080C | 80*80 | 10 | 10 | 240~290pcs | 24M |
| BVD10080C | 100*80 | 10 | 10 | 260~350pcs | 24M |
| BVD12080C | 120*80 | 10 | 10 | 280~380pcs | 16M |
| BVD14080C | 140*80 | 10 | 10 | 350~450pcs | 16M |
| BVD25100C | 25*100 | 10 | 10 | 110~160pcs | 60M |
| BVD33100C | 33*100 | 10 | 10 | 130~165pcs | 44M |
| BVD40100C | 40*100 | 10 | 10 | 130~175pcs | 40M |
| BVD50100C | 50*100 | 10 | 10 | 220~250pcs | 40M |
| BVD60100C | 60*100 | 10 | 10 | 240~290pcs | 32M |
| BVD70100C | 70*100 | 10 | 10 | 250~280pcs | 24M |
| BVD75100C | 75*100 | 10 | 10 | 260~350pcs | 24M |
| BVD80100C | 80*100 | 10 | 10 | 260~350pcs | 24M |
| BVD100100C | 100*100 | 10 | 10 | 300~400pcs | 24M |
| BVD120100C | 120*100 | 10 | 10 | 350~450pcs | 20M |
| BVD150100C | 150*100 | 10 | 10 | 400~650pcs | 16M |
| BVD100130C | 100*130 | 10 | 10 | 350-450pcs | 16M |
| BVD200100C | 200*100 | 10 | 10 | 600-800pcs | / |
| BVD200150C | 200*150 | 10 | 10 | 900-1200pcs | / |
