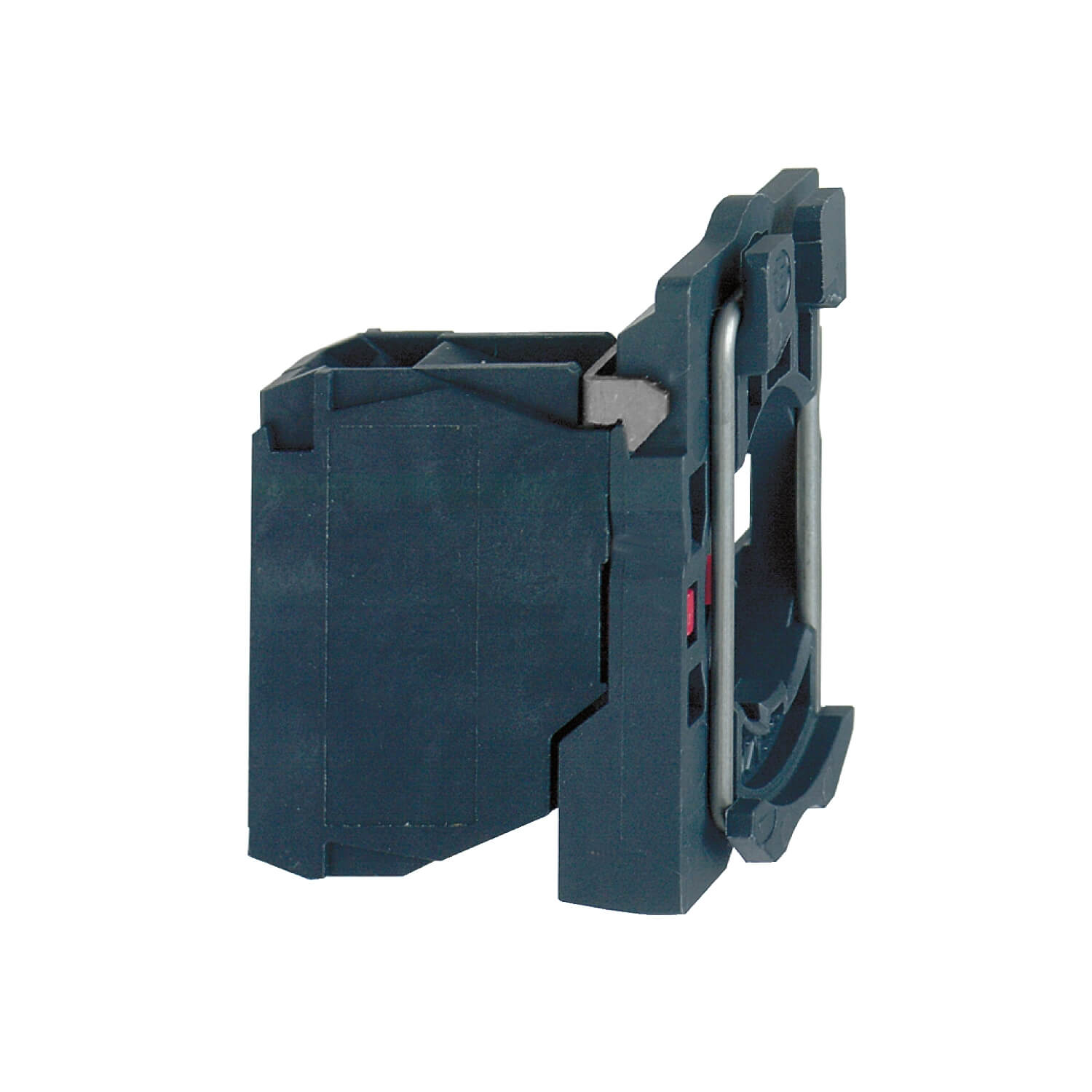

ZB5AZ101 Single contact block with body/fixing collar 1NO screw clamp terminal
Specification：
| range of product |
Harmony XB5
|
|---|---|
| product or component type |
Complete body/contact assembly
|
| device short name |
ZB5
|
| fixing collar material |
Plastic
|
| sale per indivisible quantity |
1
|
| head type |
Standard
|
| contacts type and composition |
1 NO
|
| contact operation |
Slow-break
|
| contact block type |
Single
|
| connections – terminals |
Screw clamp terminals <= 2 x 1.5 mm² with cable end EN 60947-1
Screw clamp terminals >= 1 x 0.22 mm² without cable end EN 60947-1 |
| CAD overall width |
30 mm
|
|---|---|
| CAD overall height |
42 mm
|
| CAD overall depth |
32 mm
|
| terminals description ISO n°1 |
(13-14)NO
|
| product weight |
0.021 kg
|
| device composition |
Body
Fixing collar |
| contacts usage |
Standard contacts
|
| positive opening |
Without positive opening
|
| operating travel |
2.6 mm (NO changing electrical state)
4.3 mm (total travel) |
| operating force |
2.3 N (NO changing electrical state)
|
| mechanical durability |
10000000 cycles
|
| tightening torque |
0.8…1.2 N.m conforming to EN 60947-1
|
| shape of screw head |
Cross head compatible with Philips no 1 screwdriver
Cross head compatible with pozidriv No 1 screwdriver Slotted head compatible with flat Ø 4 mm screwdriver Slotted head compatible with flat Ø 5.5 mm screwdriver |
| contacts material |
Silver alloy (Ag/Ni)
|
| short-circuit protection |
10 A cartridge fuse type gG conforming to EN/IEC 60947-5-1
|
| [Ith] conventional free air thermal current |
10 A conforming to EN/IEC 60947-5-1
|
| [Ui] rated insulation voltage |
600 V (degree of pollution: 3) conforming to EN 60947-1
|
| [Uimp] rated impulse withstand voltage |
6 kV conforming to EN 60947-1
|
| [Ie] rated operational current |
3 A at 240 V, AC-15, A600 conforming to EN/IEC 60947-5-1
6 A at 120 V, AC-15, A600 conforming to EN/IEC 60947-5-1 0.1 A at 600 V, DC-13, Q600 conforming to EN/IEC 60947-5-1 0.27 A at 250 V, DC-13, Q600 conforming to EN/IEC 60947-5-1 0.55 A at 125 V, DC-13, Q600 conforming to EN/IEC 60947-5-1 1.2 A at 600 V, AC-15, A600 conforming to EN/IEC 60947-5-1 |
| electrical durability |
1000000 cycles, AC-15, 2 A at 230 V, operating rate: <= 3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C
1000000 cycles, AC-15, 3 A at 120 V, operating rate: <= 3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C 1000000 cycles, AC-15, 4 A at 24 V, operating rate: <= 3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C 1000000 cycles, DC-13, 0.2 A at 110 V, operating rate: <= 3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C 1000000 cycles, DC-13, 0.5 A at 24 V, operating rate: <= 3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C |
| electrical reliability |
Λ < 10exp(-6) at 5 V, 1 mA in clean environment conforming to EN/IEC 60947-5-4
Λ < 10exp(-8) at 17 V, 5 mA in clean environment conforming to EN/IEC 60947-5-4 |
| protective treatment |
TH
|
|---|---|
| ambient air temperature for storage |
-40…70 °C
|
| ambient air temperature for operation |
-40…70 °C
|
| IP degree of protection |
IP20 conforming to IEC 60529
|
| standards |
EN/IEC 60947-1
EN/IEC 60947-5-1 EN/IEC 60947-5-4 JIS C 4520 UL 508 CSA C22.2 No 14 |
| product certifications |
BV
CSA DNV GL LROS (Lloyds register of shipping) RINA UL |
| vibration resistance |
5 gn (f = 2…500 Hz) conforming to IEC 60068-2-6
|
| shock resistance |
30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
