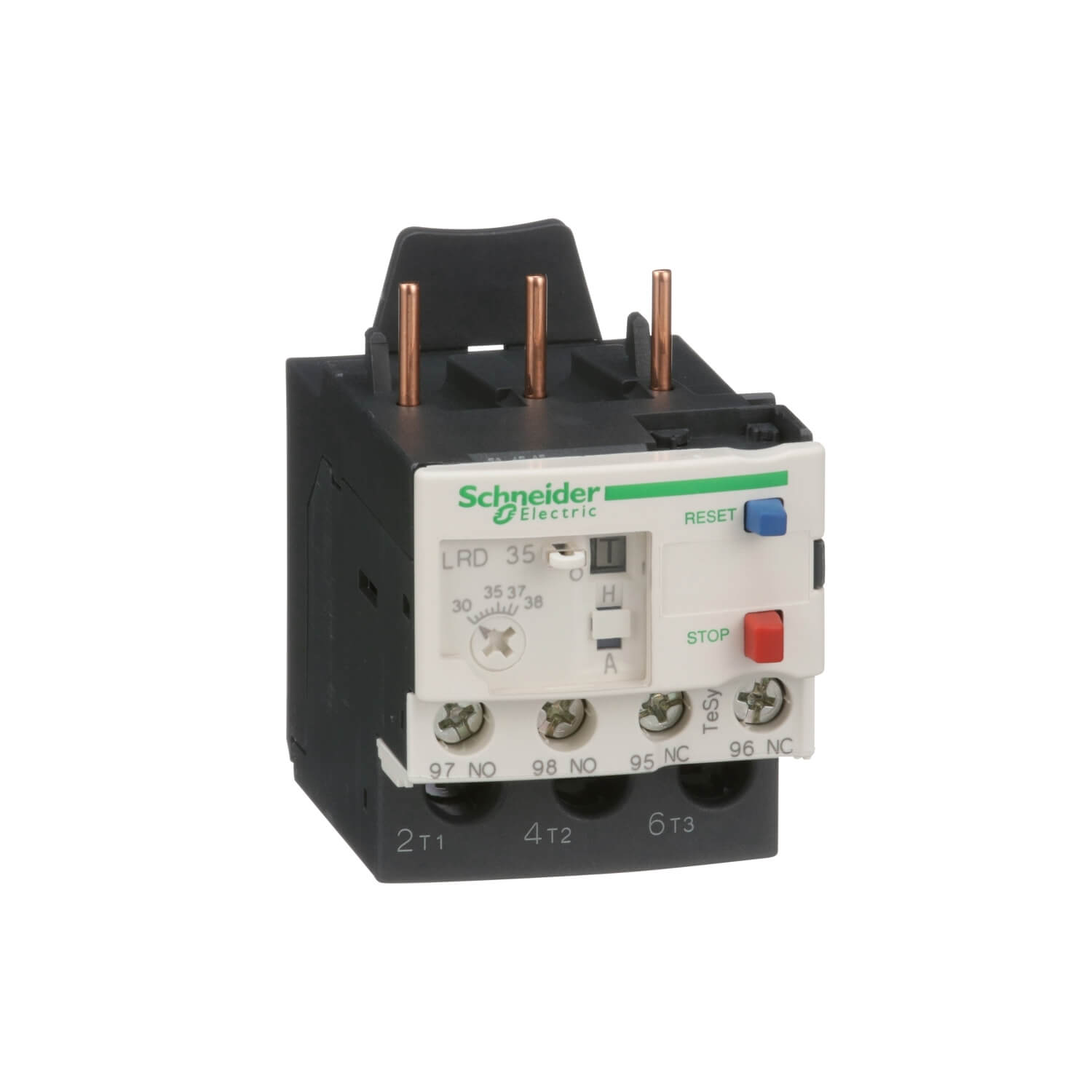

LRD35 TeSys LRD thermal overload relays – 30…38 A – class 10A
Specification：
| range |
TeSys
|
|---|---|
| product name |
TeSys LRD
|
| product or component type |
Differential thermal overload relay
|
| device short name |
LRD
|
| relay application |
Motor protection
|
| product compatibility |
LC1D32
LC1D38 |
| network type |
AC
DC |
| thermal protection adjustment range |
30…38 A
|
| [Ui] rated insulation voltage |
600 V power circuit conforming to CSA
600 V power circuit conforming to UL 690 V power circuit conforming to IEC 60947-4-1 |
| network frequency |
0…400 Hz
|
|---|---|
| mounting support |
Plate with specific accessories
Rail with specific accessories Under contactor |
| tripping threshold |
1.14 +/- 0.06 Ir conforming to IEC 60947-4-1
|
| [Ith] conventional free air thermal current |
5 A for signalling circuit
|
| permissible current |
1.5 A at 240 V AC-15 for signalling circuit
0.1 A at 250 V DC-13 for signalling circuit |
| [Ue] rated operational voltage |
690 V AC 0…400 Hz
|
| [Uimp] rated impulse withstand voltage |
6 kV
|
| phase failure sensitivity |
Tripping current 130 % of Ir on two phase, the last one at 0
|
| control type |
Red push-button stop
Blue push-button for reset mode |
| temperature compensation |
-20…60 °C
|
| connections – terminals |
Control circuit : screw clamp terminals 2 cable(s) 1…2.5 mm² flexible without cable end
Control circuit : screw clamp terminals 2 cable(s) 1…2.5 mm² flexible with cable end Control circuit : screw clamp terminals 2 cable(s) 1…2.5 mm² solid without cable end Power circuit : screw clamp terminals 1 cable(s) 1.5…10 mm² flexible without cable end Power circuit : screw clamp terminals 1 cable(s) 1…6 mm² flexible with cable end Power circuit : screw clamp terminals 1 cable(s) 1.5…10 mm² solid without cable end |
| tightening torque |
Control circuit : 1.7 N.m on screw clamp terminals
Power circuit : 2.5 N.m on screw clamp terminals |
| height |
70 mm
|
| width |
45 mm
|
| depth |
70 mm
|
| product weight |
0.124 kg
|
| protective treatment |
TH conforming to IEC 60068
|
|---|---|
| IP degree of protection |
IP20 conforming to IEC 60529
|
| ambient air temperature for operation |
-20…60 °C without derating conforming to IEC 60947-4-1
|
| ambient air temperature for storage |
-60…70 °C
|
| flame retardance |
V1 conforming to UL 94
|
| mechanical robustness |
Vibrations 6 Gn IEC 60068-2-6
Shocks 15 Gn for 11 ms IEC 60068-2-7 |
| dielectric strength |
6 kV at 50 Hz conforming to IEC 60255-5
|
| standards |
ATEX D 94/9/CE
EN 60947-4-1 EN 60947-5-1 IEC 60947-4-1 IEC 60947-5-1 UL 508 CSA C22.2 No 14 |
| product certifications |
ATEX INERIS
BV CCC CSA DNV GL GOST LROS (Lloyds register of shipping) RINA UL |
