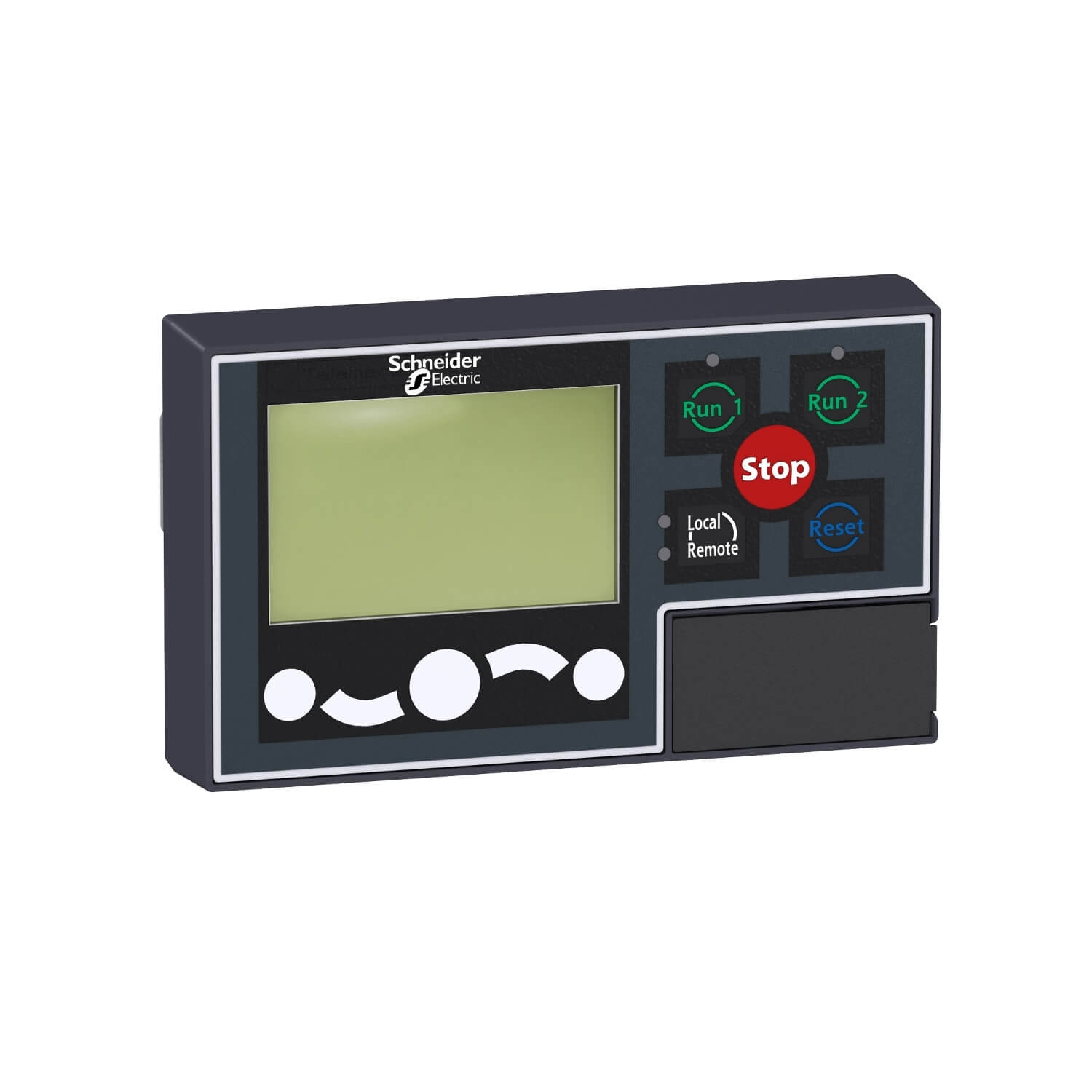

LTMCU TeSys T Operator control unit for LTM R controller
Specification:
| range |
TeSys
|
|---|---|
| device short name |
LTMCU
|
| product or component type |
Operator control unit
|
| range compatibility |
LTMR motor controller
|
| display type |
Backlit LCD
|
| local signalling |
4 LEDs
|
| local control |
10 push-button
|
| device connection |
Connection to a LTM R controller, RJ45 connector on rear
Connection to a PC, RJ45 connector on front |
| supply |
Via the controller
|
|---|---|
| maximum supply current |
140 mA
|
| power dissipation |
1 W
|
| standards |
UL 60947-4-1A
CSA C22.2 No 60947-4-1 EN/IEC 61131-2 |
| product certifications |
C-Tick
EAC CSA NOM UL CE |
| electromagnetic compatibility |
Electrostatic discharge, level 3, 8 kV air, 4 kV contact, conforming to EN/IEC 61000-4-2
Radiated RF fields, level 3, 10 V/m, conforming to EN/IEC 61000-4-3 Conducted RF disturbances, level 3, 10 V, conforming to EN/IEC 61000-4-6 Surges (shielded access), level 3, 2 kV, conforming to EN/IEC 61000-4-5 Fast transient bursts (shielded access), level 3, 2 kV, conforming to EN/IEC 61000-4-4 |
| IP degree of protection |
IP54 (front) conforming to EN/IEC 60947-4-1
IP20 (rear) conforming to EN/IEC 60947-4-1 |
| mounting mode |
Flush-mounted
|
| width |
117 mm
|
| height |
70 mm
|
| depth |
50 mm
|
| net weight |
0.4 kg
|
| ambient air temperature for operation |
-20…60 °C
|
|---|---|
| ambient air temperature for storage |
-40…80 °C
|
| relative humidity |
15…95 %
|
| protective treatment |
TC 12 humidity cycles at 55 °C conforming to EN/IEC 60068-2-30
|
| mechanical robustness |
Shocks: 15 Gn for 11 ms conforming to EN/IEC 60068-2-27
Vibrations: 4 Gn, 5…300 Hz conforming to EN/IEC 60068-2-6 |
| fire resistance |
650 °C conforming to EN/IEC 60947-1
|
| flame retardance |
V2 conforming to UL 94
|
