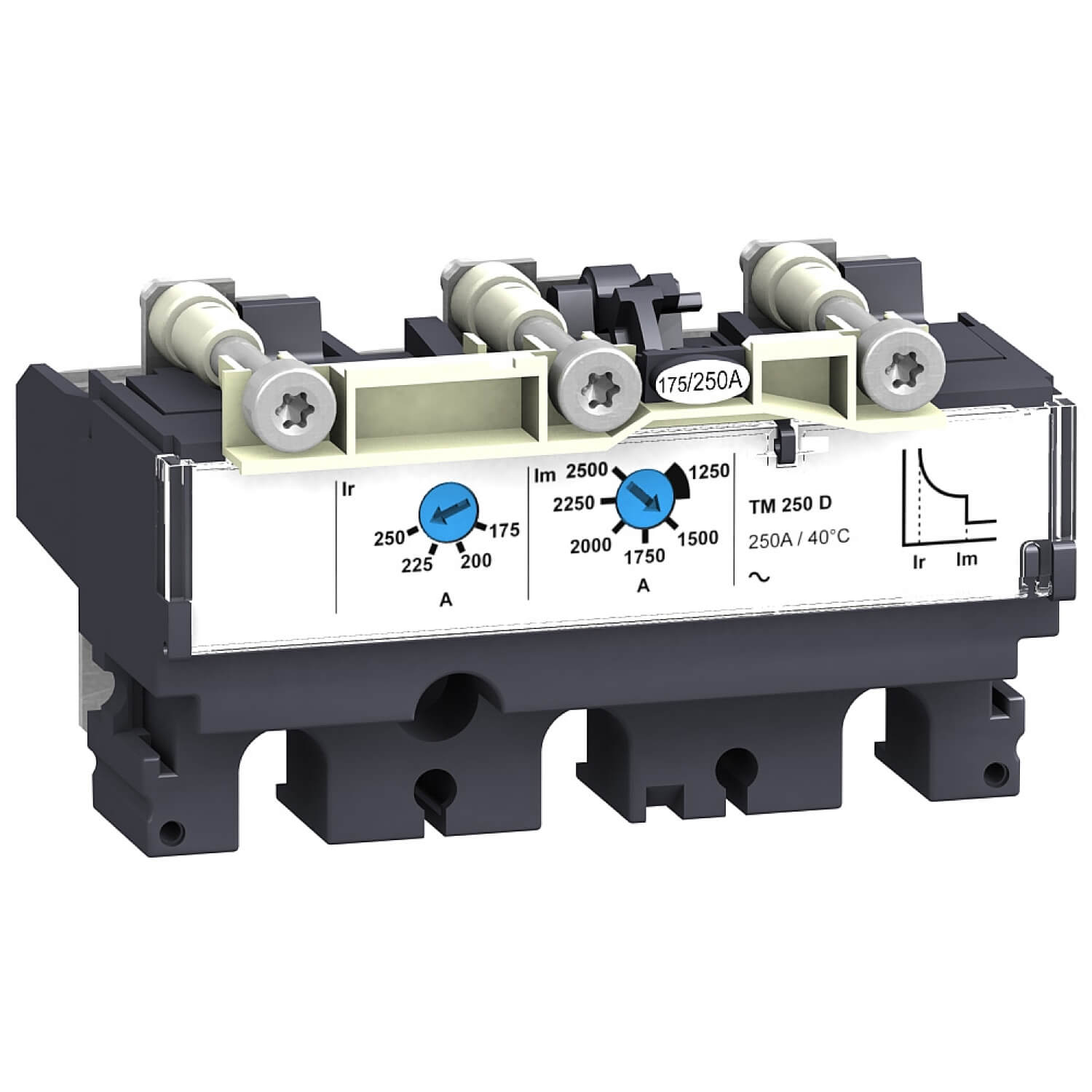

LV429030 Trip unit TM100D for Compact NSX 100/160/250 circuit breakers, thermal magnetic, rating 100 A, 3 poles 3d

Category:

LV429030 Trip unit TM100D for Compact NSX 100/160/250 circuit breakers, thermal magnetic, rating 100 A, 3 poles 3d

Specification:

range of product
NSX100…250
product or component type
Trip unit
range compatibility
Compact NSX100
Compact NSX160
Compact NSX250
device application
Distribution
poles description
3P
protected poles description
3t
network type
AC
network frequency
50/60 Hz
trip unit name
TM-D
trip unit technology
Thermal-magnetic
trip unit protection functions
LI
protection type
L : for overload protection (thermal)
I : for short-circuit protection (magnetic)
trip unit rating
100 A at 40 °C
mounting mode
Fixed
[Ue] rated operational voltage
690 V AC 50/60 Hz
long time pick-up adjustment type Ir
Adjustable
[Ir] long time pick-up adjustment range
0.7…1 x In
long time delay adjustment type
Fixed
[tr] long-time delay adjustment range
120…400 s at 1.5 x In
15 s at 6 x Ir
short-time pick-up adjustment type Isd
Fixed
[Isd] short-time pick-up adjustment range
800 A
short-time delay adjustment type
Fixed
