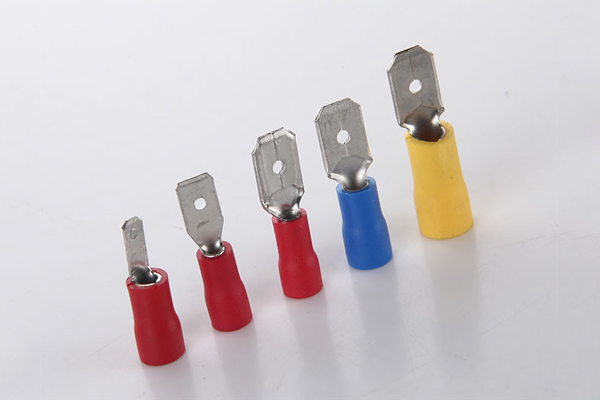

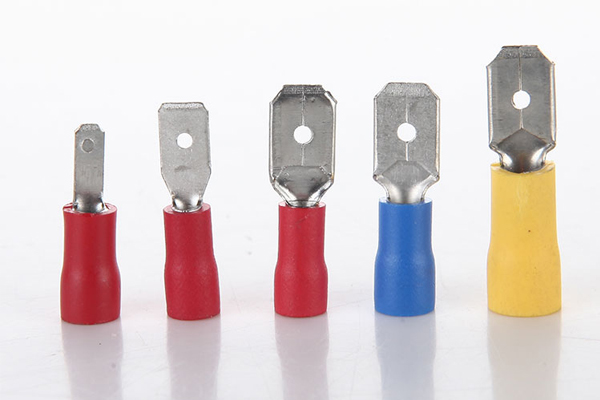

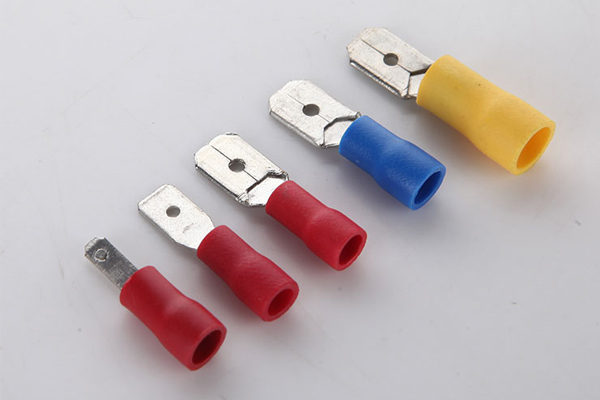

Insulated Male Terminal Male Spade Connector Wire Connector BLVA
Specification:
Material: Copper, Tin-plated copper
Insulated Material: Vinyl
Certification: CE, RoHS, UL Approved
Working Temperature: -40℃ to 85℃ Heat-resistance
Insulated Male Terminal offers a termination security in high vibration areas. All these Terminals are made of high-quality copper in good conductivity and corrosion resistance.
| Insulated square：0.5～1.5mm²(22～16)Max. current: lmax=10A | |||||||
| Item No | NEMA-TAB mm |
Thickness mm |

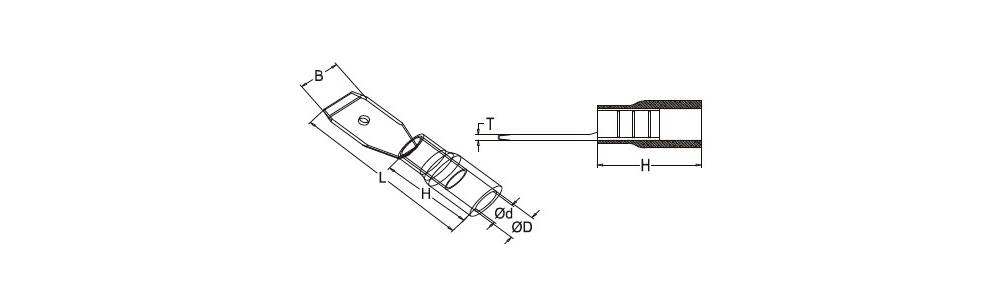

DIMENSION | ||||
| B mm |
dφ mm |
Dφ mm |
L mm |
H mm |
|||
| BLVB1.25-110(5) | 0.5×2.8 | 0.5 | 2.8 | 1.7 | 4.3 | 17.7 | 10 |
| BLVB1.25-110(8) | 0.8×2.8 | 0.8 | 2.8 | 1.7 | 4.3 | 17.7 | |
| BLVB1.25-187(5) | 0.5×4.75 | 0.5 | 4.75 | 1.7 | 4.3 | 20 | |
| BLVB1.25-187(8) | 0.8×4.75 | 0.8 | 4.75 | 1.7 | 4.3 | 21 | |
| BLVB1.25-250 | 0.8×6.35 | 0.4*2 | 6.35 | 1.7 | 4.3 | 21 | |
| Insulated square：1.5～2.5mm²(16～14)Max. current: lmax=15A | |||||||
| Item No | NEMA-TAB mm |
Thickness mm |
DIMENSION | ||||
| B mm |
dφ mm |
Dφ mm |
L mm |
H mm |
|||
| BLVB2-187(5) | 0.5×4.75 | 0.5 | 4.75 | 2.3 | 4.3 | 20 | 10 |
| BLVB2-187(8) | 0.8×4.75 | 0.8 | 4.75 | 2.3 | 4.3 | 19 | |
| BLVB2-250 | 0.8×6.35 | 0.4*2 | 6.35 | 2.3 | 4.3 | 21 | |
| Insulated square：4～6mm²(12～10)Max. current: lmax=24A | |||||||
| Item No | NEMA-TAB mm |
Thickness mm |
DIMENSION | ||||
| B mm |
dφ mm |
Dφ mm |
L mm |
H mm |
|||
| BLVB5.5-250 | 0.8×6.35 | 0.4*2 | 6.35 | 3.4 | 5.7 | 25 | 13.5 |
