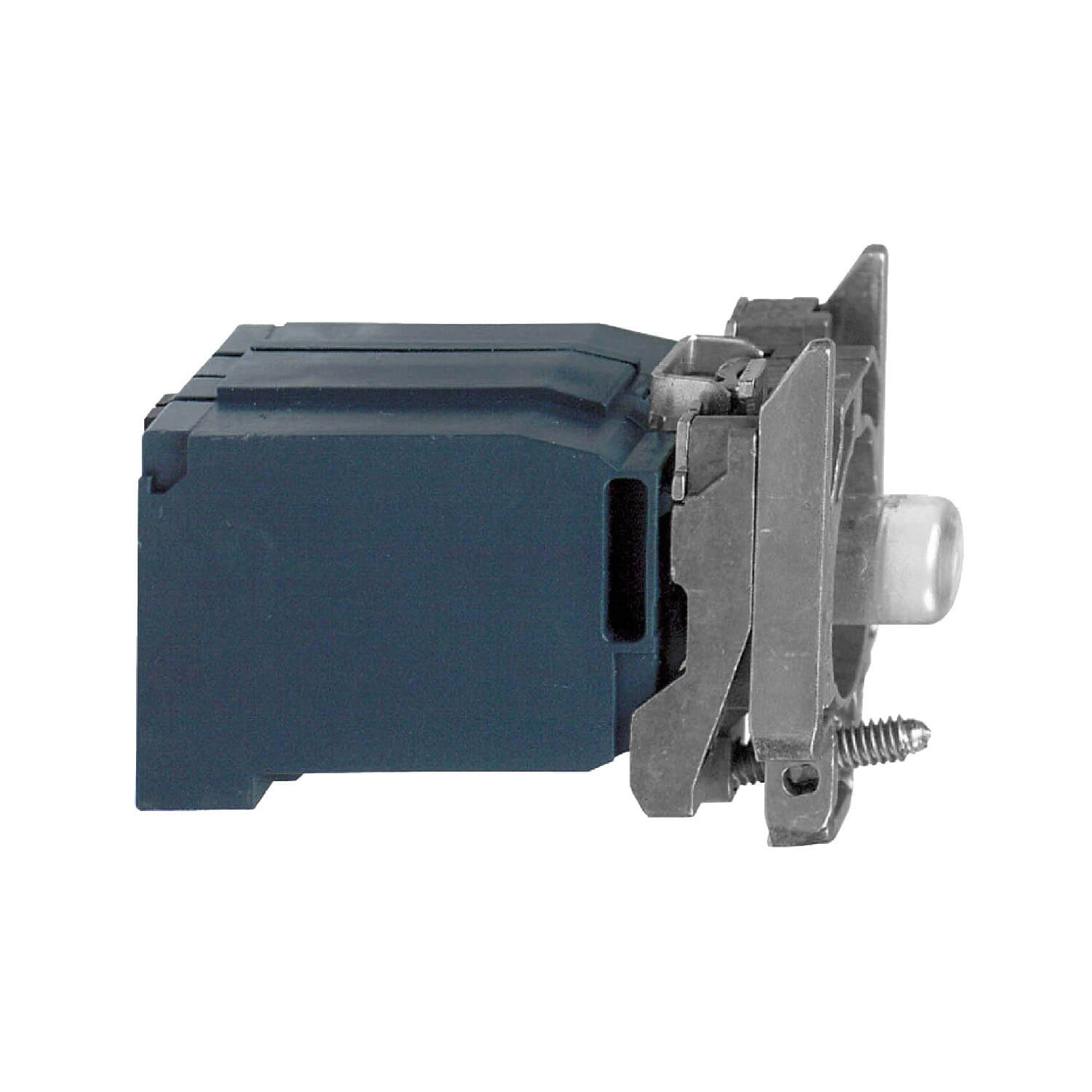

ZB4BV5 Light block with body/fixing collar with BA9s incandesc. bulb 400V
Specification：
| range of product |
Harmony XB4
|
|
|---|---|---|
| product or component type |
Complete body/light block assembly
|
|
| device short name |
ZB4
|
|
| fixing collar material |
Zamak
|
|
| sale per indivisible quantity |
1
|
|
| connections – terminals |
Screw clamp terminals, <= 2 x 1.5 mm² with cable end
|
|
| light source |
Incandescent
|
|
| bulb base |
BA 9s
|
|
| light block supply |
Via integral transformer 1.2 VA 6 V
|
|
| [Us] rated supply voltage |
400 V AC at 50/60 Hz
|
| CAD overall width |
30 mm
|
|
|---|---|---|
| CAD overall height |
47 mm
|
|
| CAD overall depth |
60 mm
|
|
| terminals description ISO n°1 |
(X1-X2)PL
|
|
| net weight |
0.131 kg
|
|
| tightening torque |
0.8…1.2 N.m conforming to EN 60947-1
|
|
| shape of screw head |
Cross compatible with Philips no 1 screwdriver
|
|
| [Ui] rated insulation voltage |
600 V (pollution degree 3) conforming to EN 60947-1
|
|
| [Uimp] rated impulse withstand voltage |
EN 60947-1 6 kV
|
|
| signalling type |
Steady
|
|
| mounting of block |
Front mounting
|
|
| electrical composition code |
P4
|
|
| device presentation |
Basic sub-assemblies
|
| protective treatment |
TH
|
|
|---|---|---|
| ambient air temperature for storage |
-40…70 °C
|
|
| ambient air temperature for operation |
-40…55 °C
|
|
| electrical shock protection class |
Class I conforming to IEC 60536
|
|
| IP degree of protection |
IP20
|
|
| standards |
EN/IEC 60947-1
EN/IEC 60947-5-5 EN/IEC 60947-5-1 CSA C22.2 No 14 JIS C8201-5-1 EN/IEC 60947-5-4 UL 508 JIS C8201-1 |
|
| product certifications |
RINA
BV GL DNV LROS (Lloyds register of shipping) CSA UL listed |
|
| vibration resistance |
5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6
|
|
| shock resistance |
30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
|
| Unit Type of Package 1 |
PCE
|
|
|---|---|---|
| Number of Units in Package 1 |
1
|
|
| Package 1 Weight |
130 g
|
|
| Package 1 Height |
3.4 cm
|
|
| Package 1 width |
5.4 cm
|
|
| Package 1 Length |
8.8 cm
|
