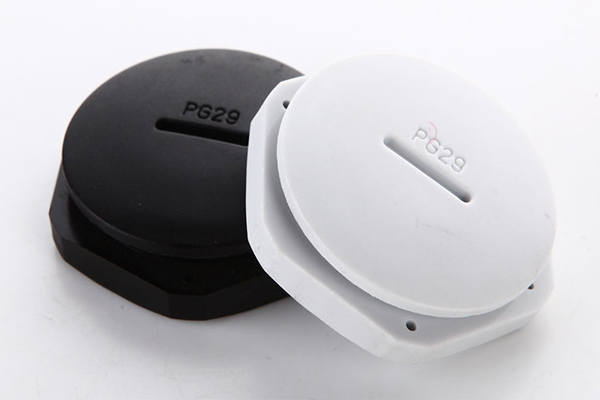

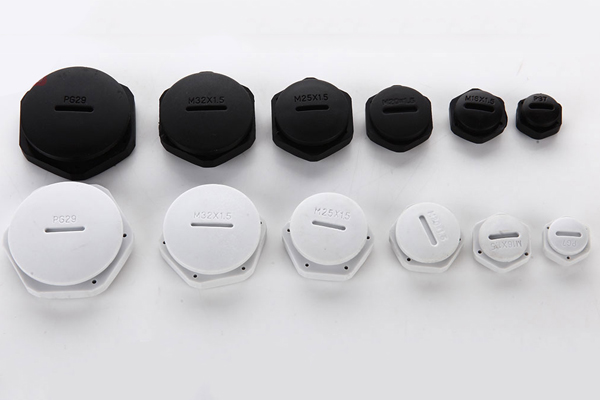

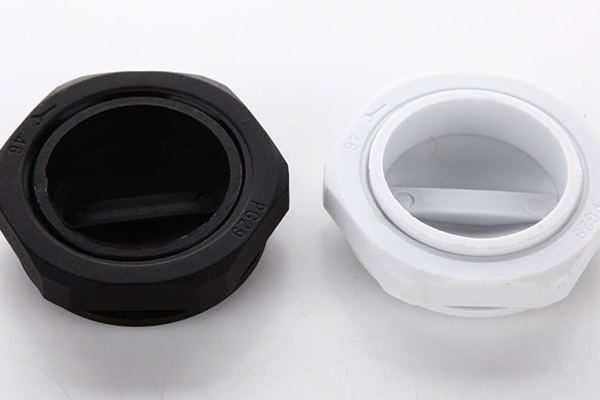

Screw Plug Plastic Nylon Hole Plug SP
Specification：
Thread: Metric, PG
Material: Nylon 66,
Protection grade: IP68, using the washer and in the cable range
Flammability: 94V-2
Certificate: UL
Color: White, Black, Available
Work T.:-40°C to 100°C,120°C in a short time.
common resistant, such as water, salty, alcohol, oil, grease and so on.
Note: This Screw Plug comes with locknut, but not including washer.
| Item No. | Thread | Thread O.D. | Panel Mounting Hole | Thread Length | Thread Length | size | Packing |
| A (mm) | C (mm) | H (mm) | B (mm) | PCS | |||
| Metric thread SP-M | |||||||
| SP-M12 | M12*1.5 | 12 | 12-12.3 | 9 | 12.5 | 15 | 100PCS |
| SP-M16 | M16*1.5 | 16 | 16-16.3 | 9 | 13 | 19 | |
| SP-M18 | M18*1.5 | 18 | 18-18.3 | 9 | 13 | 22 | |
| SP-M20 | M20*1.5 | 20 | 20-20.3 | 9 | 13 | 25 | |
| SP-M22 | M22*1.5 | 22 | 22-22.3 | 10.5 | 15 | 27 | |
| SP-M25 | M25*1.5 | 25 | 25-25.3 | 10.5 | 15.5 | 30 | 50PCS |
| SP-M27 | M27*1.5 | 27 | 27-27.3 | 10.5 | 15.5 | 33 | |
| SP-M32 | M32*1.5 | 32 | 32-32.3 | 10.5 | 16 | 38 | |
| SP-M40 | M40*1.5 | 40 | 40-40.3 | 11.5 | 16 | 46 | 30PCS |
| SP-M50 | M50*1.5 | 50 | 50-50.3 | 13.5 | 18 | 56 | |
| SP-M63 | M63*1.5 | 63 | 63-63.3 | 14 | 19 | 68 | |
| Germany thread NSP-PG | |||||||
| SP-PG7 | PG 7 | 12.5 | 12.5-12.8 | 9 | 12.2 | 15 | 100PCS |
| SP-PG9 | PG 9 | 15.2 | 15.2-15.8 | 9 | 13 | 19 | |
| SP-PG11 | PG 11 | 18.6 | 18.6-18.9 | 9 | 13 | 22 | |
| SP-PG13.5 | PG 13.5 | 20.4 | 20.4-20.7 | 9 | 13 | 25 | |
| SP-PG16 | PG 16 | 22.5 | 22.5-22.8 | 10.5 | 15 | 27 | |
| SP-PG21 | PG 21 | 28.3 | 28.3-28.7 | 10.5 | 15 | 33 | 30PCS |
| SP-PG29 | PG 29 | 37 | 37.0-37.4 | 11.5 | 16 | 44 | |
| SP-PG36 | PG 36 | 47 | 47.0-47.4 | 13.5 | 18 | 55 | |
| SP-PG42 | PG 42 | 54 | 54.0-54.4 | 13.5 | 18.5 | 62 | |
| SP-PG48 | PG 48 | 59.3 | 59.3-59.7 | 14.5 | 19.5 | 68 | |
