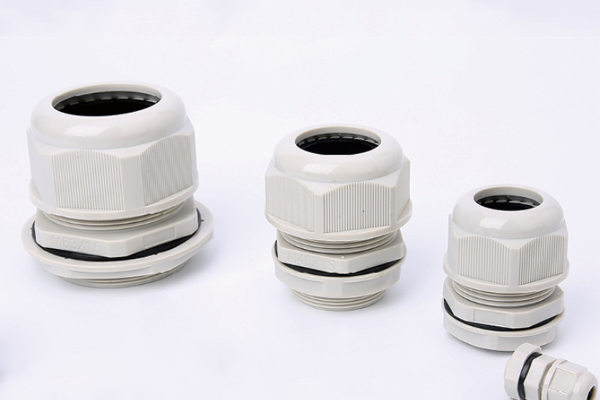

G NPT Gland Nylon Reinforcement Water-proof IP68
Specification:
Material:
PA66 (Nylon)
Claw: PA66 (Nylon) , UL94-V2
Hermetic seal: NBR, Silicone rubber
O-ring: NBR, Silicone rubber
Protection rating: IP68 – 10bar
Work / Operating Temperature:
Static state: -40 °C to 100 ° C, Short time to 120°C;
Dynamic state: -20 °C to 80° C, Short time to 100°C
Color: Gray, White, Black and so on.
Certificate: CE, RoHS approved
waterproof. IP68

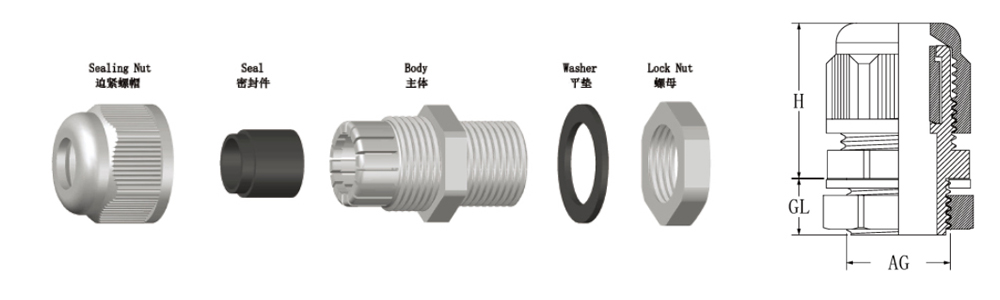

(In mm)
| Item | Cable Range | Thread Length GL | Thread O.D. AG | Spanner Size | Item No. |
| G3/8″ | 6-10 | 10 | 16.662 | 22/22 | NG3/8-10B |
| 4-7 | 10 | 16.662 | 22/22 | NG3/8-7B | |
| G1/2″ | 6-12 | 10 | 20.955 | 27724 | NG1/2-12B |
| 5-9 | 10 | 20.955 | 27/24 | NG1/2-9B | |
| G3/4″ | 12.5-18 | 12 | 26.441 | 33/33 | NG3/4-18B |
| 7-13 | 12 | 26.441 | 33/33 | NG3/4-13B | |
| G1″ | 18-25 | 13.5 | 33.2 | 42/41 | NG1-25B |
| 8-12 | 13.5 | 33.2 | 42/41 | NG1-12B | |
| G1-1/4″ | 24-32 | 15 | 41.9 | 51/50 | NG1-1/4B |
| 18-25 | 15 | 41.9 | 51/50 | NG1-1/4-25B | |
| NPT3/8″ | 6-10 | 10 | 16.662 | 22 | NNPT3/8-10B |
| 4-7 | 10 | 16.662 | 22 | NNPT3/8-7B | |
| NPT1/2″ | 6-12 | 10 | 20.955 | 27 | NNPT1/2-12B |
| 5-9 | 10 | 20.955 | 27 | NNPT1/2-9B | |
| NPT3/4″ | 12.5-18 | 15 | 26.441 | 33 | NNPT3/4-18B |
| 7-13 | 15 | 26.441 | 33 | NNPT3/4-13B | |
| NPT1″ | 18-25 | 17 | 33.5 | 41 | NNPT1-25B |
| 8-12 | 17 | 33.5 | 41 | NNPT1-12B | |
| NPT1-1/4″ | 24-32 | 17 | 42 | 50 | NNPT1-1/4-32B |
| 18-25 | 17 | 42 | 50 | NNPT1-1/4-25B |
