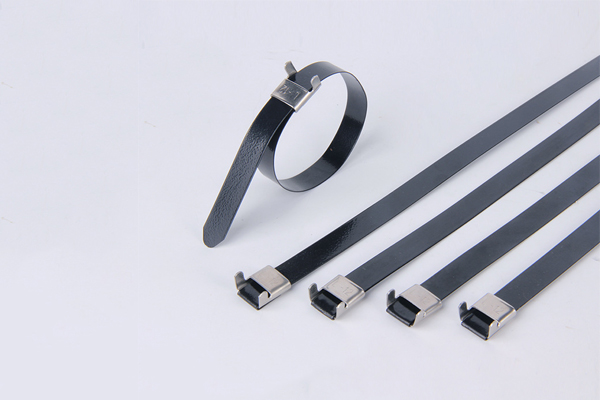

UV Resistant Cable Ties L Type Cable Ties BZ-LP Stainless Steel
Specification：
Material: Stainless Steel Grade 304 or 316
Coating: Polyester/Epoxy, Nylon 11
Working Temperature: -80℃ to 150℃
Description: Black
Flammability: Fireproof
UV-resistant, Halogen Free, Non-toxic
Features: Self-locking, for installing easier and faster. Smooth rounded edges, for safe handling. The PVC Coated Stainless Steel Ties provides extra corrosion protection, excellent chemical resistance.
| Item No. | Width | Length | Thickness | Max.Bundle Dia. | Min.Bundle Dia. | Min. Tensile Strength | ||||||
| mm | inch | mm | inch | mm | inch | mm | inch | mm | inch | N | lbs | |
| BZ-LP 7.9×200 | 7.9 | 0.31 | 200 | 7.87 | 0.35 | 0.014 | 55 | 2.17 | 12.7 | 0.50 | 2220 | 500 |
| BZ-LP 7.9×300 | 300 | 11.81 | 90 | 3.54 | ||||||||
| BZ-LP 7.9×400 | 400 | 15.75 | 120 | 4.72 | ||||||||
| BZ-LP 7.9×500 | 500 | 19.69 | 150 | 5.91 | ||||||||
| BZ-LP 7.9×600 | 600 | 23.62 | 185 | 7.28 | ||||||||
| BZ-LP 7.9×700 | 700 | 27.56 | 215 | 8.46 | ||||||||
| BZ-LP 7.9×800 | 800 | 31.50 | 250 | 9.84 | ||||||||
| BZ-LP 7.9×900 | 900 | 35.43 | 280 | 11.02 | ||||||||
| BZ-LP 7.9×1000 | 1000 | 39.37 | 310 | 12.20 | ||||||||
| BZ-LP 7.9×1100 | 1100 | 43.31 | 340 | 13.39 | ||||||||
| BZ-LP 7.9×1200 | 1200 | 47.24 | 370 | 14.57 | ||||||||
| BZ-LP 10×300 | 10 | 0.39 | 300 | 11.81 | 0.35 | 0.014 | 90 | 3.54 | 19. 05 | 0.75 | 2800 | 630 |
| BZ-LP 10×400 | 400 | 15.75 | 120 | 4.72 | ||||||||
| BZ-LP 10×500 | 500 | 19.69 | 150 | 5.91 | ||||||||
| BZ-LP 10×600 | 900 | 23.62 | 185 | 7.28 | ||||||||
| BZ-LP 10×700 | 700 | 27.56 | 215 | 8.46 | ||||||||
| BZ-LP 10×800 | 800 | 31.50 | 250 | 9.84 | ||||||||
| BZ-LP 10×900 | 900 | 35.43 | 280 | 11.02 | ||||||||
| BZ-LP 10×1000 | 1000 | 39.37 | 310 | 12.20 | ||||||||
| BZ-LP 10×1100 | 1100 | 43.31 | 340 | 13.39 | ||||||||
| BZ-LP 10×1200 | 1200 | 47.24 | 370 | 14.57 | ||||||||
| BZ-LP 12×300 | 12 | 0.47 | 300 | 11.81 | 0.45 | 0.018 | 90 | 3.54 | 25.4 | 1.0 | 3115 | 700 |
| BZ-LP 12×400 | 400 | 15.75 | 120 | 4.72 | ||||||||
| BZ-LP 12×500 | 500 | 19.69 | 150 | 5.91 | ||||||||
| BZ-LP 12×600 | 600 | 23.62 | 185 | 7.28 | ||||||||
| BZ-LP 12×700 | 700 | 27.56 | 215 | 8.46 | ||||||||
| BZ-LP 12×800 | 800 | 31.50 | 250 | 9.84 | ||||||||
| BZ-LP 12×900 | 900 | 35.43 | 280 | 11.02 | ||||||||
| BZ-LP 12×1000 | 1000 | 39.37 | 310 | 12.20 | ||||||||
| BZ-LP 12×1100 | 1100 | 43.31 | 340 | 13.39 | ||||||||
| BZ-LP 12×1200 | 1200 | 47.24 | 370 | 14.57 | ||||||||
| BZ-LP 15×300 | 15 | 0.59 | 300 | 11.81 | 0.45 | 0.018 | 85 | 3.54 | 25.4 | 1.0 | 4100 | 920 |
| BZ-LP 15×400 | 400 | 15.75 | 120 | 4.72 | ||||||||
| BZ-LP 15×500 | 500 | 19.69 | 150 | 5.91 | ||||||||
| BZ-LP 15×600 | 600 | 23.62 | 185 | 7.28 | ||||||||
| BZ-LP 15×700 | 700 | 27.56 | 215 | 8.46 | ||||||||
| BZ-LP 15×800 | 800 | 31.50 | 250 | 9.84 | ||||||||
| BZ-LP 15×900 | 900 | 35.43 | 280 | 11.02 | ||||||||
| BZ-LP 15×1000 | 1000 | 39.37 | 310 | 12.20 | ||||||||
| BZ-LP 15×1100 | 1100 | 43.31 | 340 | 13.39 | ||||||||
| BZ-LP 15×1200 | 1200 | 47.24 | 370 | 14.57 | ||||||||
