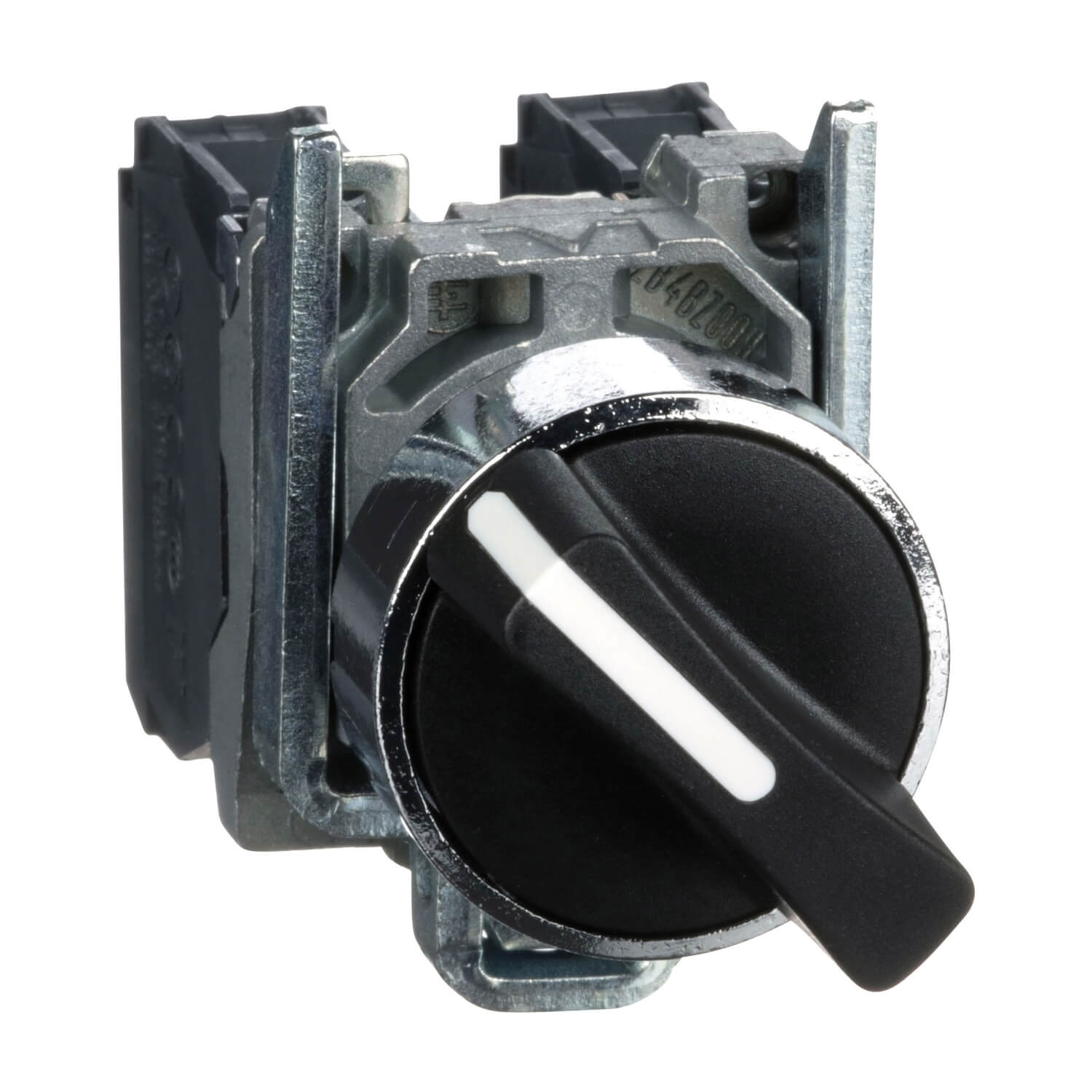

XB4BD25 Harmony, 22mm Push Button, 2 position selector switch, black, maintained, 1 NO and 1 NC, 600 V
XB4BD25 Harmony, 22mm Push Button, 2 position selector switch, black, maintained, 1 NO and 1 NC, 600 V
Specification：
| range of product |
Harmony XB4
|
|---|---|
| product or component type |
Selector switch
|
| device short name |
XB4
|
| bezel material |
Chromium plated metal
|
| fixing collar material |
Zamak
|
| mounting diameter |
0.87 in (22 mm)
|
| sale per indivisible quantity |
1
|
| head type |
Standard
|
| shape of signaling unit head |
Round
|
| type of operator |
stay put
|
| operator profile |
Black standard handle
|
| operator position information |
2 positions 90°
|
| contacts type and composition |
1 NO + 1 NC
|
| contact operation |
Slow-break
|
| connections – terminals |
Screw clamp terminals, <= 2 x 1.5 mm² with cable end EN/IEC 60947-1
Screw clamp terminals, >= 1 x 0.22 mm² without cable end EN/IEC 60947-1 |
| height |
1.85 in (47 mm)
|
|---|---|
| width |
1.18 in (30 mm)
|
| depth |
2.68 in (68 mm)
|
| terminals description ISO n°1 |
(13-14)NO
(21-22)NC |
| net weight |
0.23 lb(US) (0.105 kg)
|
| resistance to high pressure washer |
1015.26 psi (7000000 Pa) 131 °F (55 °C) 0.1 m
|
| contacts usage |
Standard contacts
|
| positive opening |
With EN/IEC 60947-5-1 appendix K
|
| torque value |
1.24 lbf.in (0.14 N.m) NO changing electrical state
|
| mechanical durability |
1000000 cycles
|
| tightening torque |
7.08…10.62 lbf.in (0.8…1.2 N.m) EN 60947-1
|
| shape of screw head |
Cross Philips no 1
Cross pozidriv No 1 Slotted flat Ø 4 mm Slotted flat Ø 5.5 mm |
| contacts material |
Silver alloy (Ag/Ni)
|
| short-circuit protection |
10 A cartridge fuse gG EN/IEC 60947-5-1
|
| [Ith] conventional free air thermal current |
10 A EN/IEC 60947-5-1
|
| [Ui] rated insulation voltage |
600 V 3)EN 60947-1
|
| [Uimp] rated impulse withstand voltage |
6 kV EN 60947-1
|
| [Ie] rated operational current |
3 A 240 V, AC-15, A600 EN/IEC 60947-5-1
6 A 120 V, AC-15, A600 EN/IEC 60947-5-1 0.1 A 600 V, DC-13, Q600 EN/IEC 60947-5-1 0.27 A 250 V, DC-13, Q600 EN/IEC 60947-5-1 0.55 A 125 V, DC-13, Q600 EN/IEC 60947-5-1 1.2 A 600 V, AC-15, A600 EN/IEC 60947-5-1 |
| electrical durability |
1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C
1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C |
| electrical reliability |
Λ < 10exp(-6) 5 V 1 mA in clean environment EN/IEC 60947-5-4
Λ < 10exp(-8) 17 V 5 mA in clean environment EN/IEC 60947-5-4 |
| device presentation |
Complete product
|
| protective treatment |
TH
|
|---|---|
| ambient air temperature for storage |
-40…158 °F (-40…70 °C)
|
| ambient air temperature for operation |
-40…158 °F (-40…70 °C)
|
| overvoltage category |
Class I IEC 60536
|
| IP degree of protection |
IP69
IP69K IP67 IEC 60529 |
| NEMA degree of protection |
NEMA 13
NEMA 4X |
| standards |
EN/IEC 60947-5-5
JIS C8201-5-1 UL 508 EN/IEC 60947-5-4 EN/IEC 60947-1 CSA C22.2 No 14 EN/IEC 60947-5-1 JIS C8201-1 |
| product certifications |
DNV
LROS (Lloyds register of shipping) CSA GL UL RINA BV |
| vibration resistance |
5 gn 2…500 Hz)IEC 60068-2-6
|
| shock resistance |
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27
50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
