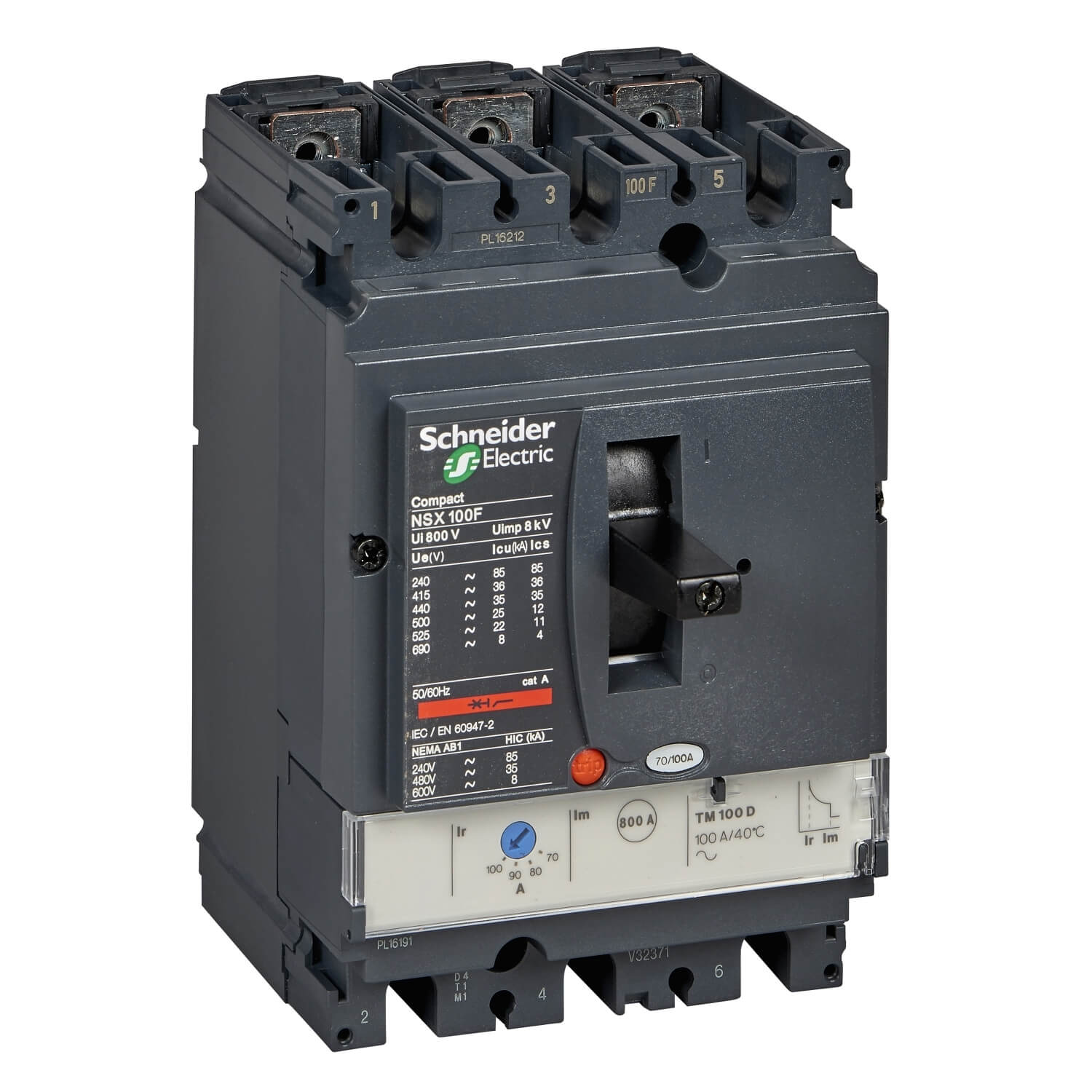

LV429631 Circuit breaker Compact NSX100F – TMD – 80 A – 3 poles 3d
Specification：
| range |
Compact
|
|---|---|
| product name |
Compact NSX
|
| product or component type |
Circuit breaker
|
| device short name |
Compact NSX100F
|
| device application |
Distribution
|
| poles description |
3P
|
| protected poles description |
3t
|
| network type |
AC
|
| network frequency |
50/60 Hz
|
| [In] rated current |
100 A ( 40 °C )
|
| [Ui] rated insulation voltage |
800 V AC 50/60 Hz
|
| [Uimp] rated impulse withstand voltage |
8 kV
|
| [Ue] rated operational voltage |
690 V AC 50/60 Hz
|
| breaking capacity code |
F (36 kA) AC
|
| breaking capacity |
8 kA Icu at 660/690 V AC 50/60 Hz conforming to IEC 60947-2
22 kA Icu at 525 V AC 50/60 Hz conforming to IEC 60947-2 25 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2 35 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2 36 kA Icu at 380/415 V AC 50/60 Hz conforming to IEC 60947-2 85 kA Icu at 220/240 V AC 50/60 Hz conforming to IEC 60947-2 10 kA at 600 V AC 50/60 Hz conforming to UL 508 25 kA at 480 V AC 50/60 Hz conforming to UL 508 85 kA at 240 V AC 50/60 Hz conforming to UL 508 |
| [Ics] rated service breaking capacity |
Ics 11 kA 525 V AC 50/60 Hz conforming to IEC 60947-2
Ics 35 kA 440 V AC 50/60 Hz conforming to IEC 60947-2 Ics 36 kA 380/415 V AC 50/60 Hz conforming to IEC 60947-2 Ics 4 kA 660/690 V AC 50/60 Hz conforming to IEC 60947-2 Ics 85 kA 220/240 V AC 50/60 Hz conforming to IEC 60947-2 Ics 12.5 kA 500 V AC 50/60 Hz conforming to IEC 60947-2 |
| suitability for isolation |
Yes conforming to EN 60947-2
Yes conforming to IEC 60947-2 |
| utilisation category |
Category A
|
| trip unit name |
TM-D
|
| trip unit technology |
Thermal-magnetic
|
| trip unit protection functions |
LI
|
| trip unit rating |
80 A ( 40 °C )
|
| protection type |
Overload protection (thermal) L
Short-circuit protection (magnetic) I |
| pollution degree |
3 conforming to IEC 60664-1
|
| control type |
Toggle
|
|---|---|
| mounting mode |
Fixed
|
| mounting support |
Backplate
|
| upside connection |
Front
|
| downside connection |
Front
|
| auxiliary contact composition |
Without
|
| mechanical durability |
50000 cycles
|
| electrical durability |
10000 cycles 690 V In conforming to IEC 60947-2
20000 cycles 690 V In/2 conforming to IEC 60947-2 30000 cycles 440 V In conforming to IEC 60947-2 50000 cycles 440 V In/2 conforming to IEC 60947-2 |
| connection pitch |
35 mm
|
| local signalling |
Positive contact indication
|
| long time pick-up adjustment type Ir |
Adjustable
|
| long time pick-up adjustment range |
0.7…1 x In
|
| long time delay adjustment type |
Fixed
|
| [tr] long-time delay adjustment range |
15 s 6 x Ir
120…400 s 1.5 x In |
| short-time pick-up adjustment type Isd |
Fixed
|
| [Isd] short-time pick-up adjustment range |
640 A
|
| short-time delay adjustment type |
Fixed
|
| height |
161 mm
|
| width |
105 mm
|
| depth |
86 mm
|
| product weight |
2.05 kg
|
| overvoltage category |
Class II
|
|---|---|
| electrical shock protection class |
Class II
|
| standards |
EN/IEC 60947
UL 508 |
| product certifications |
CCC
Marine EAC |
| IP degree of protection |
IP40 conforming to IEC 60529
|
| IK degree of protection |
IK07 conforming to IEC 62262
|
| ambient air temperature for operation |
-35…70 °C
|
| ambient air temperature for storage |
-55…85 °C
|
| Sustainable offer status |
Green Premium product
|
|---|---|
| RoHS (date code: YYWW) | |
| REACh | |
| Product environmental profile |
Available
|
| Product end of life instructions |
Available
|
