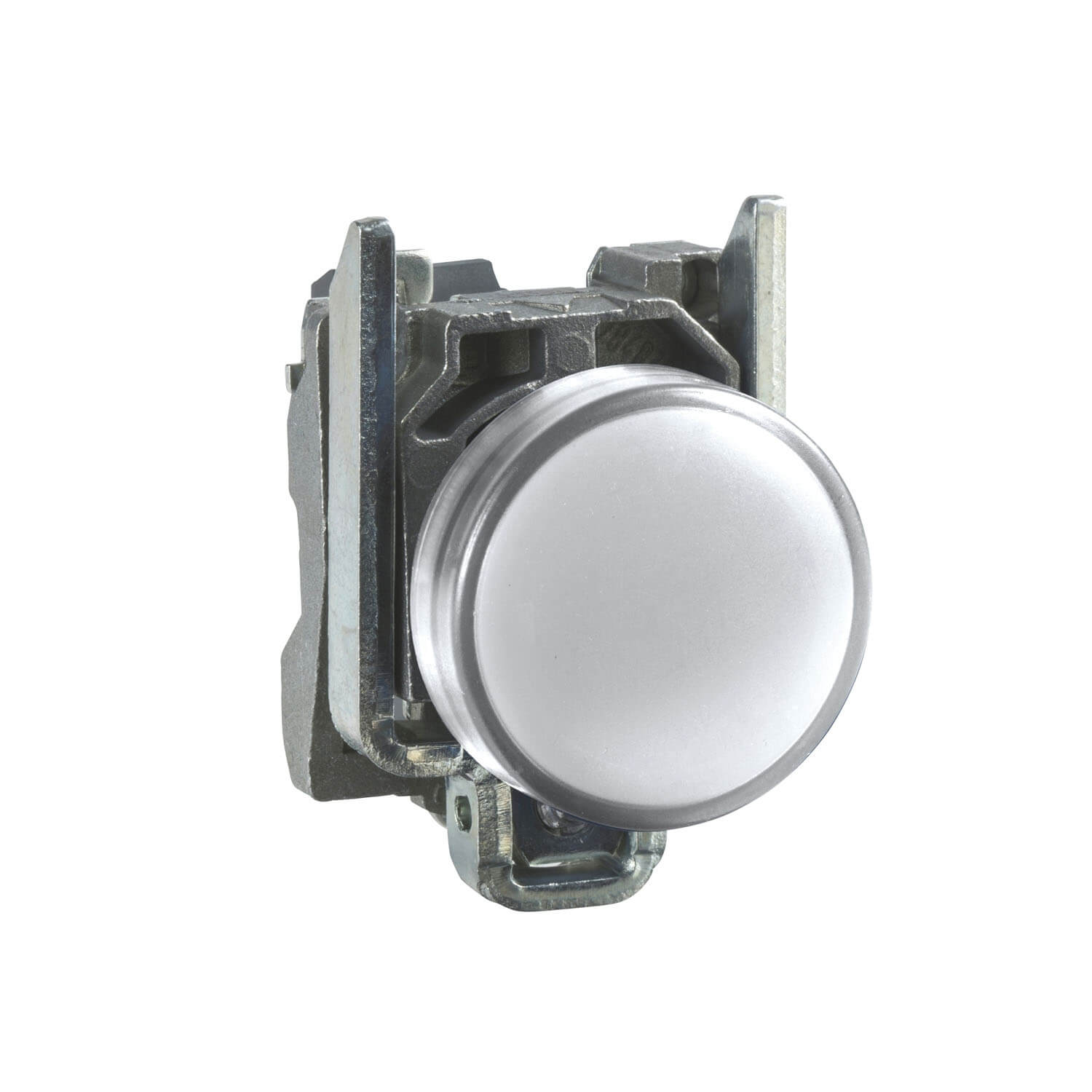

XB4BVG1 Pilot light, metal, white, Ø22, plain lens with integral LED, 110…120 VAC
Specification：
| range of product |
Harmony XB4
|
|
|---|---|---|
| product or component type |
Pilot light
|
|
| device short name |
XB4
|
|
| bezel material |
Chromium plated metal
|
|
| fixing collar material |
Zamak
|
|
| mounting diameter |
22 mm
|
|
| head type |
Standard
|
|
| sale per indivisible quantity |
1
|
|
| shape of signaling unit head |
Round
|
|
| cap/operator or lens colour |
White
|
|
| operator additional information |
With plain lens
|
|
| light source |
Protected LED
|
|
| bulb base |
Integral LED
|
|
| light source colour |
White
|
|
| [Us] rated supply voltage |
110…120 V AC 50/60 Hz
|
| height |
47 mm
|
|
|---|---|---|
| width |
30 mm
|
|
| depth |
54 mm
|
|
| terminals description ISO n°1 |
(X1-X2)PL
|
|
| net weight |
0.08 kg
|
|
| resistance to high pressure washer |
7000000 Pa at 55 °C, distance : 0.1 m
|
|
| connections – terminals |
Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to EN/IEC 60947-1
Screw clamp terminals, 1 x 0.22…2 x 2.5 mm² without cable end conforming to EN/IEC 60947-1 |
|
| [Ui] rated insulation voltage |
250 V (pollution degree 3) conforming to EN 60947-1
|
|
| [Uimp] rated impulse withstand voltage |
4 kV EN 60947-1
|
|
| signalling type |
Steady
|
|
| current consumption |
14 mA
|
|
| service life |
100000 h at rated voltage and 25 °C
|
|
| surge withstand |
1 kV conforming to IEC 61000-4-5
|
|
| device presentation |
Complete product
|
|
| supply voltage limits |
100…132 V AC
|
| protective treatment |
TH
|
|
|---|---|---|
| ambient air temperature for storage |
-40…70 °C
|
|
| ambient air temperature for operation |
-40…70 °C
|
|
| electrical shock protection class |
Class I conforming to IEC 60536
|
|
| IP degree of protection |
IP66 conforming to IEC 60529
IP67 IP69 IP69K |
|
| NEMA degree of protection |
NEMA 13
NEMA 4X |
|
| IK degree of protection |
IK06 conforming to IEC 50102
|
|
| standards |
EN/IEC 60947-5-5
JIS C8201-5-1 CSA C22.2 No 14 EN/IEC 60947-1 EN/IEC 60947-5-4 EN/IEC 60947-5-1 UL 508 JIS C8201-1 |
|
| product certifications |
CSA
UL listed |
|
| vibration resistance |
5 gn (f= 12…500 Hz) conforming to IEC 60068-2-6
|
|
| shock resistance |
30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
|
| resistance to fast transients |
2 kV conforming to IEC 61000-4-4
|
|
| resistance to electromagnetic fields |
10 V/m conforming to IEC 61000-4-3
|
|
| resistance to electrostatic discharge |
6 kV on contact (on metal parts) conforming to IEC 61000-4-2
8 kV in free air (in insulating parts) conforming to IEC 61000-4-2 |
|
| electromagnetic emission |
Class B conforming to IEC 55011
|
| Unit Type of Package 1 |
PCE
|
|
|---|---|---|
| Number of Units in Package 1 |
1
|
|
| Package 1 Weight |
80 g
|
|
| Package 1 Height |
3.4 cm
|
|
| Package 1 width |
5.4 cm
|
|
| Package 1 Length |
8.8 cm
|
|
| Package 2 Weight |
400 g
|
|
| Package 3 Weight |
12.364 kg
|
