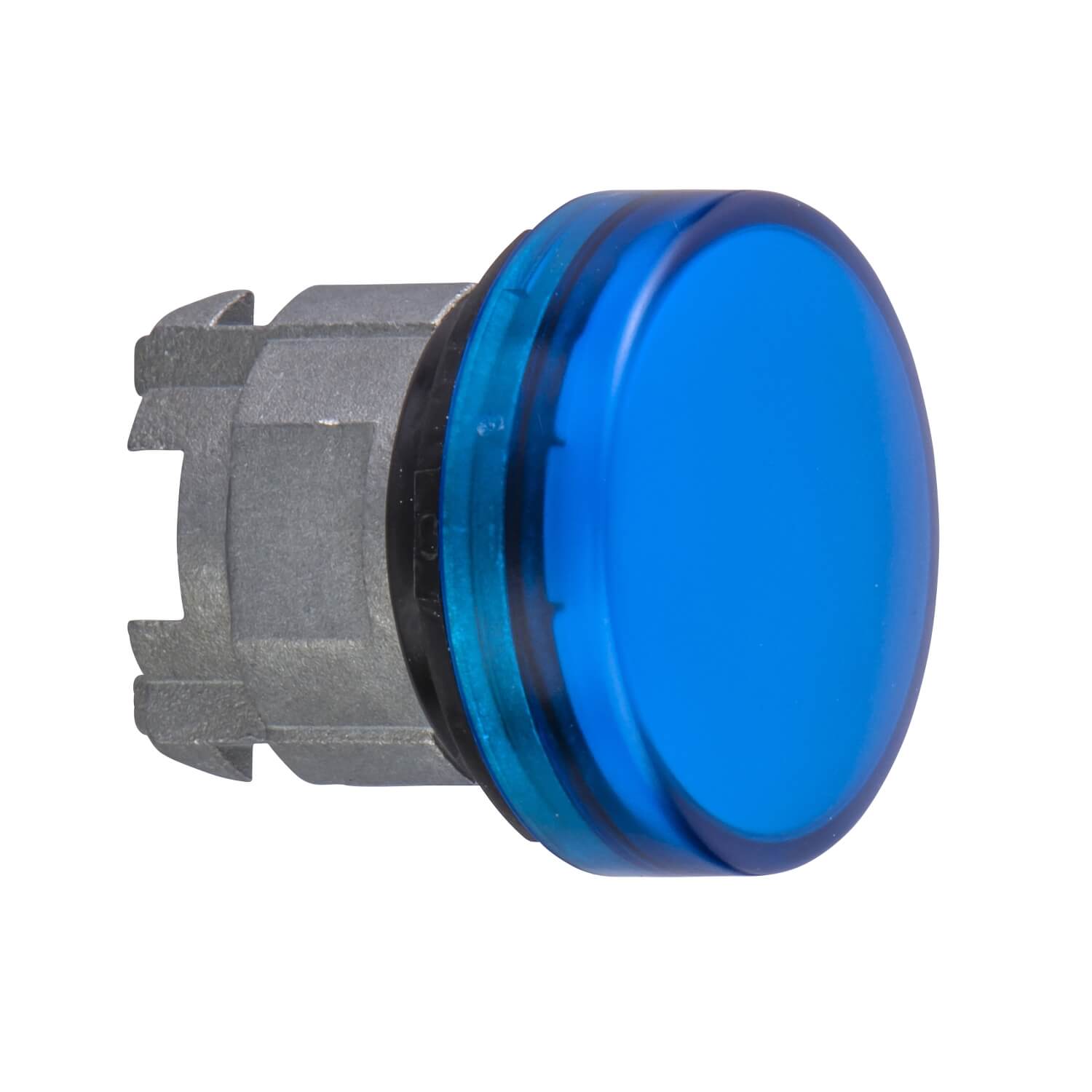

ZB4BV063 Blue pilot light head Ø22 with plain lens for integral LED
Specification：
| range of product |
Harmony XB4
|
|---|---|
| product or component type |
Head for pilot light
|
| product compatibility |
Integral LED
|
| device short name |
ZB4
|
| bezel material |
Chromium plated metal
|
| mounting diameter |
22 mm
|
| sale per indivisible quantity |
1
|
| head type |
Standard
|
| shape of signaling unit head |
Round
|
| cap/operator or lens colour |
Blue
|
| operator additional information |
With plain lens
|
| CAD overall width |
29 mm
|
|---|---|
| CAD overall height |
29 mm
|
| CAD overall depth |
30 mm
|
| product weight |
0.026 kg
|
| resistance to high pressure washer |
7000000 Pa at 55 °C,distance: 0.1 m
|
| electrical composition code |
P1 in front mounting with integral LED
P2 in front mounting with integral LED and transformer |
| protective treatment |
TH
|
|---|---|
| ambient air temperature for storage |
-40…70 °C
|
| ambient air temperature for operation |
-40…70 °C
|
| overvoltage category |
Class I conforming to IEC 60536
|
| IP degree of protection |
IP69
IP67 IP66 conforming to IEC 60529 IP69K |
| NEMA degree of protection |
NEMA 13
NEMA 4X |
| IK degree of protection |
IK06 conforming to IEC 50102
|
| standards |
EN/IEC 60947-1
EN/IEC 60947-5-1 EN/IEC 60947-5-4 EN/IEC 60947-5-5 JIS C 4520 UL 508 CSA C22.2 No 14 |
| vibration resistance |
5 gn (f = 2…500 Hz) conforming to IEC 60068-2-6
|
| shock resistance |
30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
