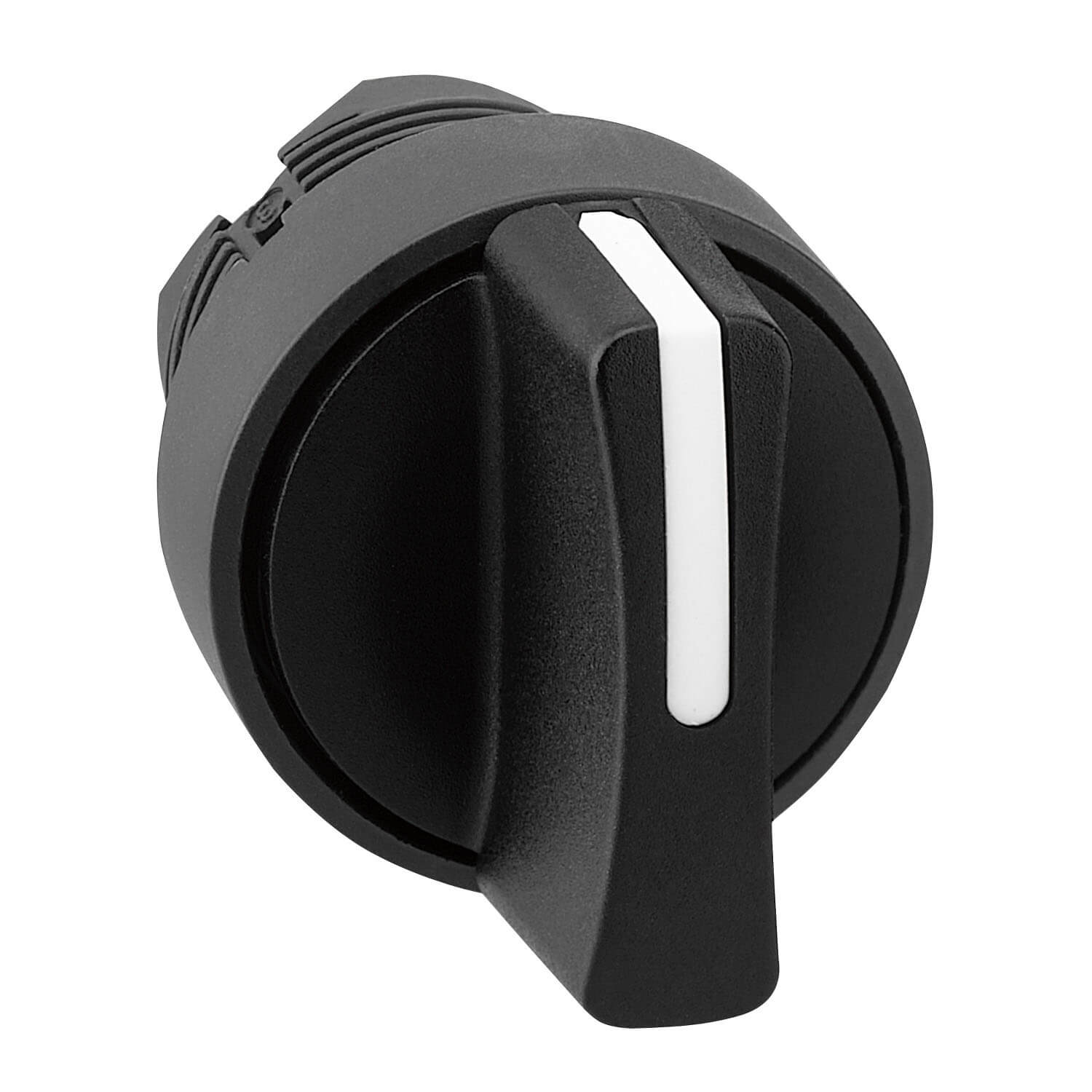

ZB5AD7 Black selector switch head Ø22 3-position spring return
Specification:
| range of product | Harmony XB5 | |
|---|---|---|
| product or component type | Head for selector switch | |
| device short name | ZB5 | |
| bezel material | Dark grey plastic | |
| mounting diameter | 22 mm | |
| head type | Standard | |
| sale per indivisible quantity | 1 | |
| shape of signaling unit head | Round | |
| type of operator | Left to centre spring return | |
| operator profile | Black standard handle | |
| operator position information | 3 positions +/- 45° |
| CAD overall width | 29 mm | |
|---|---|---|
| CAD overall height | 29 mm | |
| CAD overall depth | 46 mm | |
| net weight | 0.017 kg | |
| mechanical durability | 1000000 cycles | |
| station name | XALD 1…5 cut-outs XALK 2…5 cut-outs | |
| electrical composition code | C3 for <6 contacts using single blocks in front mounting C4 for <6 contacts using single and double blocks in front mounting C5 for <5 contacts using single blocks in front mounting C6 for <5 contacts using single and double blocks in front mounting C7 for <4 contacts using single blocks in front mounting C8 for <4 contacts using single and double blocks in front mounting C11 for <3 contacts using single blocks in front mounting SF1 for <3 contacts using single blocks in front mounting SR1 for <3 contacts using single blocks in rear mounting | |
| device presentation | Basic element |
| protective treatment | TH | |
|---|---|---|
| ambient air temperature for storage | -40…70 °C | |
| ambient air temperature for operation | -40…70 °C | |
| overvoltage category | Class II conforming to IEC 60536 | |
| IP degree of protection | IP67 conforming to IEC 60529 IP69 conforming to IEC 60529 IP69K | |
| NEMA degree of protection | NEMA 13 NEMA 4X | |
| resistance to high pressure washer | 7000000 Pa at 55 °C, distance : 0.1 m | |
| IK degree of protection | IK06 conforming to IEC 50102 | |
| standards | EN/IEC 60947-5-1 CSA C22.2 No 14 UL 508 EN/IEC 60947-1 EN/IEC 60947-5-4 JIS C8201-5-1 JIS C8201-1 | |
| product certifications | GL BV CSA LROS (Lloyds register of shipping) RINA DNV UL listed | |
| vibration resistance | 5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6 | |
| shock resistance | 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Unit Type of Package 1 | PCE | |
|---|---|---|
| Number of Units in Package 1 | 1 | |
| Package 1 Weight | 24 g | |
| Package 1 Height | 5.3 cm | |
| Package 1 width | 3.4 cm | |
| Package 1 Length | 5.8 cm | |
| Package 2 Weight | 2.725 kg |
