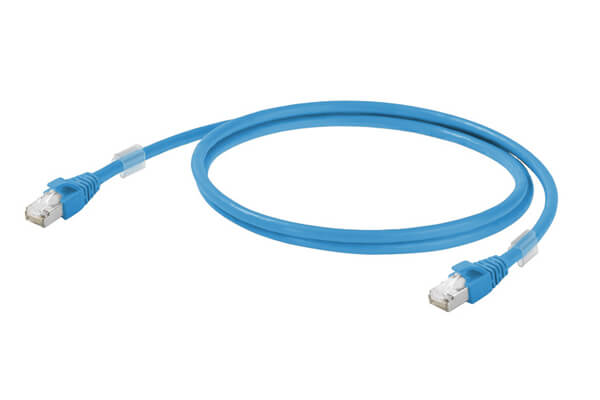

1165900030 IE-C6FP8LB0030M40M40-B Patch cable, RJ45 IP 20, RJ45 IP 20, Cat.6A / Class EA (ISO/IEC 11801 2010), LSZH, 3 m
Specification：
| Type | IE-C6FP8LB0030M40M40-B |
| Order No. | 1165900030 |
| Version | Patch cable, RJ45 IP 20, RJ45 IP 20, Cat.6A / Class EA (ISO/IEC 11801 2010), LSZH, 3 m |
| Operating temperature, max. | 60 °C |
| Operating temperature, min. | -20 °C |
| Storage temperature, max. | 60 °C |
| Storage temperature, min. | -20 °C |
| Operating temperature | -20 °C…60 °C |
| Storage temperature | -20 °C…60 °C |
| Installation temperature | 0 °C…50 °C |
| Copper diameter | 0.43 mm |
| Strands | 7 |
| Cross-section | 4*2*AWG 27/7 – 4*2*0.1 mm² |
| Insulation | PE |
| Insulation cross-section | 1.04 mm |
| No. of wires | 8 |
| Arrangement of wire cores | Twisted pair |
| Colour sequence or wires – wire pairs | white – blue, white – orange, white – green, white – brown |
| Shielding | S/FTP |
| Complete shielding | Shielding braid made from copper wiring |
| Overlap of shielding braid | 60 % |
| Material sheath | LSZH |
| Sheath diameter, min. | 5.5 mm |
| Sheath diameter, max. | 5.9 mm |
