Specification:

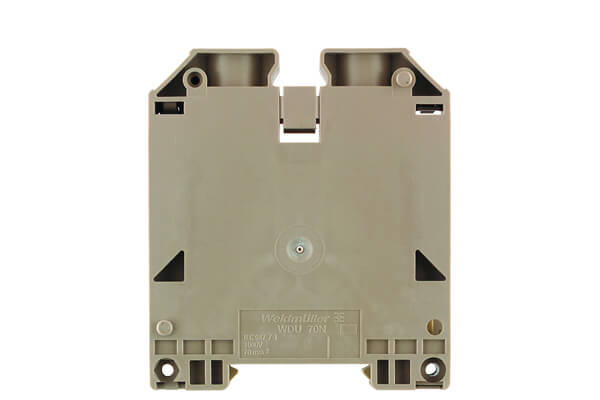

Type | WDU 70N/35 |
Order No. | 9512190000 |
Version | Feed-through terminal, Screw connection, 70 mm², 1000 V, 192 A, dark beige |
Operating temperature range | For operating temperature range see EC Design Test Certificate / IEC Ex-Certificate of Conformity |
Continuous operating temp., min. | -60 °C |
Continuous operating temp., max. | 130 °C |
Rated cross-section | 70 mm² |
Rated voltage | 1,000 V |
Rated current | 192 A |
Current at maximum wires | 232 A |
Standards | IEC 60947-7-1 |
Volume resistance according to IEC 60947-7-x | 0.17 mΩ |
Rated impulse withstand voltage | 8 kV |
Pollution severity | 3 |
