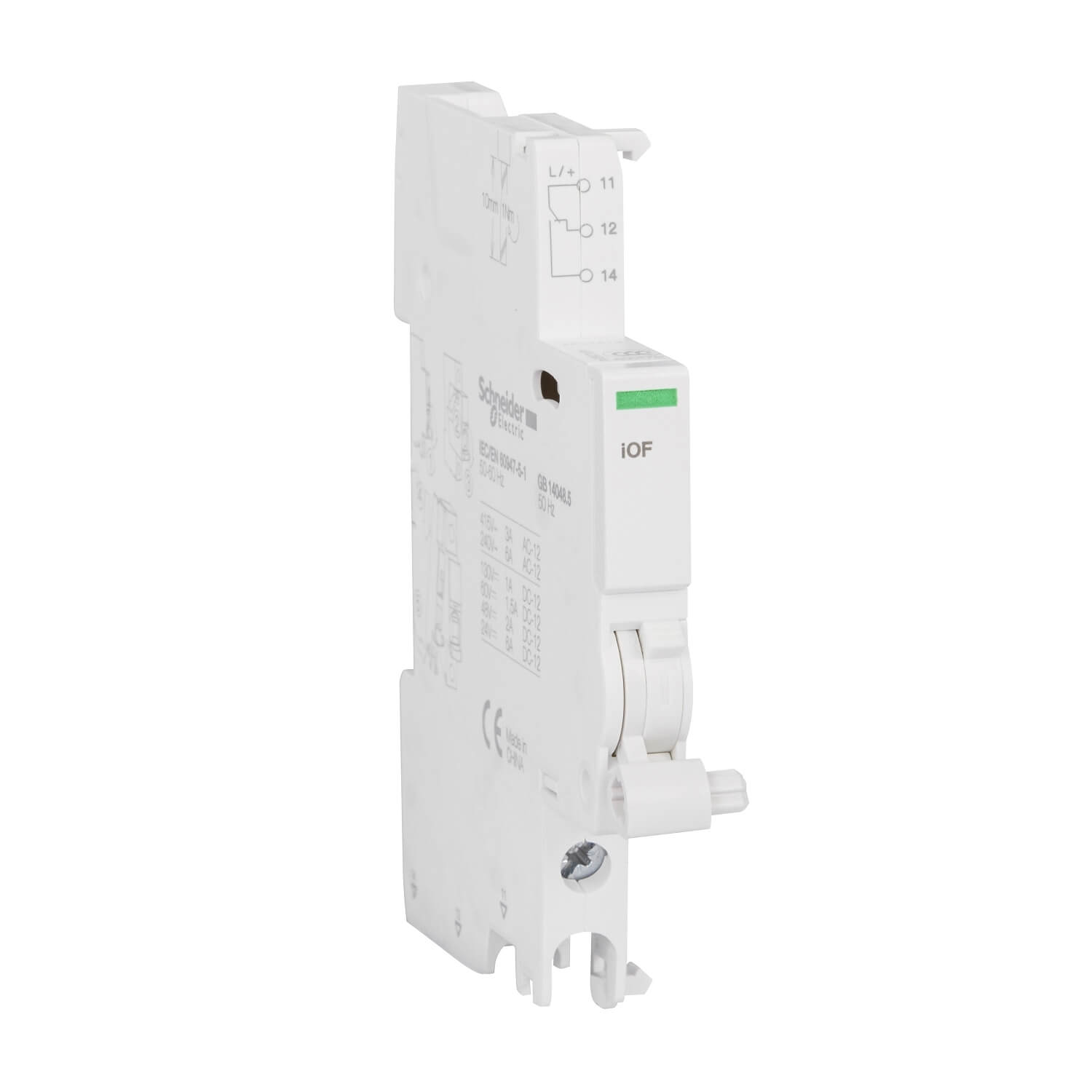

A9A26924 Acti 9 – Auxiliary contact iOF – 1 C/O – AC/DC
Specification：
| range of product |
Acti 9
|
|---|---|
| product or component type |
OC contact
|
| device short name |
IOF
|
| signal contacts composition |
1 C/O
|
| [In] rated current |
1 A: 130 V DC
1.5 A: 60 V DC 2 A: 48 V DC 6 A: 24 V DC 3 A: 415 V AC – 50/60 Hz 6 A: 240 V AC – 50/60 Hz |
| 9 mm pitches |
1
|
| range compatibility |
Acti 9 iSW-NA
Acti 9 iC60 Acti 9 iC65 Acti 9 iC60 RCBO Acti 9 iID Acti 9 ARA Acti 9 RCA Acti 9 iDPN (China version) Acti 9 iDPN Vigi Acti 9 iSW Acti 9 iC40 |
|---|---|
| [Ui] rated insulation voltage |
4 kV
|
| mounting mode |
Clip-on
|
| mounting support |
DIN rail
|
| height |
86 mm
|
| width |
9 mm
|
| depth |
73 mm
|
| net weight |
32 g
|
| colour |
White
|
| connections – terminals |
Screw clamp terminal (bottom) 1 cable(s) 1…4 mm² – rigid
Screw clamp terminal (bottom) 1 cable(s) 0.5…2.5 mm² – flexible Screw clamp terminal (bottom) 2 cable(s) 2.5 mm² – rigid Screw clamp terminal (bottom) 2 cable(s) 1.5 mm² – flexible with ferrule |
| wire stripping length |
10 mm
|
| tightening torque |
1 N.m
|
