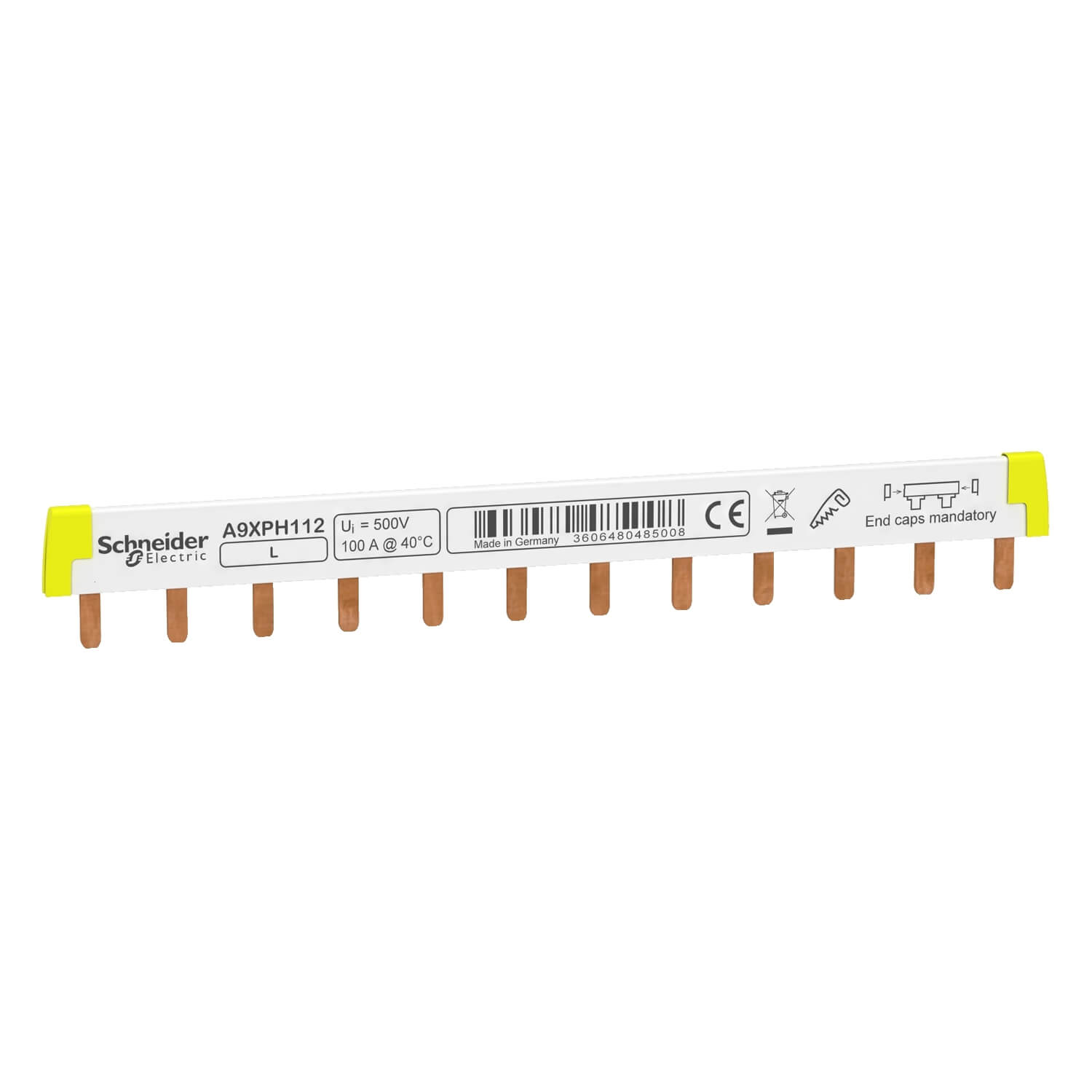

A9XPH112 Acti 9 – comb busbar – 1L – 18 mm pitch – 12 modules – 100A
Specification：
| range |
Acti 9
|
|---|---|
| product or component type |
Comb busbar
|
| accessory / separate part category |
Connection accessory
|
| lines description |
1L
|
| Length in 18 mm modules |
12
|
| number of ways |
12 ways 1 L
|
|---|---|
| poles configuration for 1 way |
1 x 1P
|
| connection pitch |
0.71 in (18 mm)
|
| connector type |
tooth
|
| distance between way |
0.71 in (18 mm)
|
| marking |
L
|
| insulation |
Insulated
|
| device presentation |
Cuttable
|
| [Ie] rated operational current |
100 A 104 °F (40 °C)
|
| [Ue] rated operational voltage |
415 V AC
|
| [Ui] rated insulation voltage |
500 V AC IEC 61439-2
|
| mounting mode |
Horizontal
|
| mounting location |
Top or bottom tunnel type terminals
Top or bottom double terminal |
| 9 mm pitches |
24
|
| width |
8.66 in (220 mm)
|
| color |
White RAL 9003)
|
| range compatibility |
Acti 9 iC60
Acti 9 iK60 Acti 9 iID Acti 9 iID K Acti 9 iSW Acti 9 iSW-NA Multi 9 C60 |
