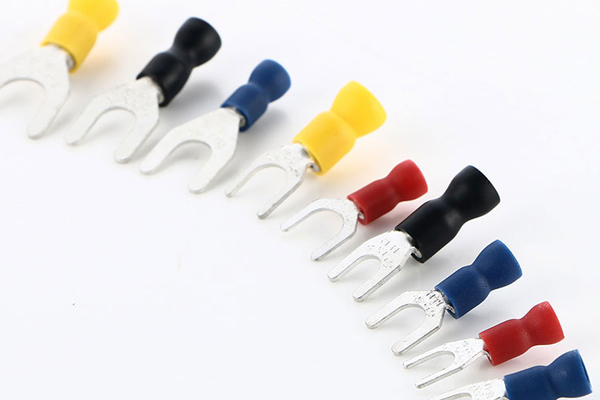

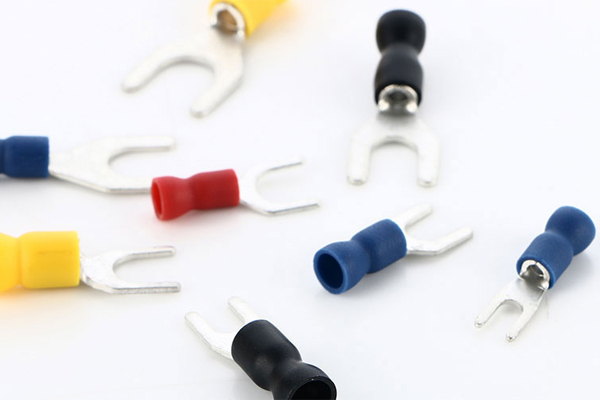

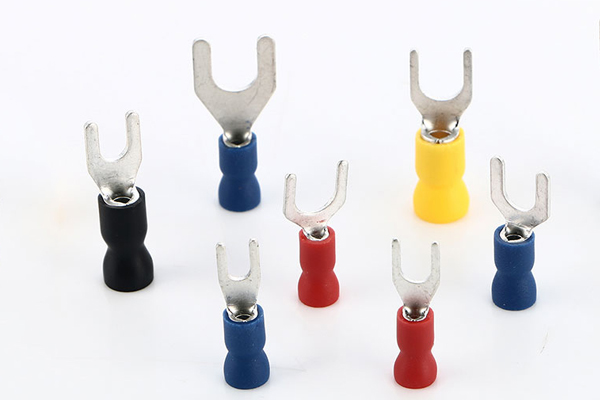

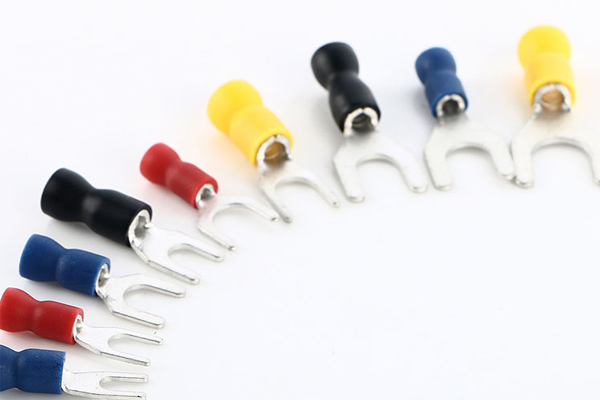

Insulated Fork Terminal Blade Connector Wire Connector BEYF
Specification:
Material: Copper, Tin-plated copper
Insulated Material: PVC
Certification: CE, RoHS, UL Approved
Working Temperature: -40℃ to 85℃ Heat-resistance
Insulated Fork Terminal offers a termination security in high vibration areas. All these Terminals are made of high-quality copper in good conductivity and corrosion resistance.

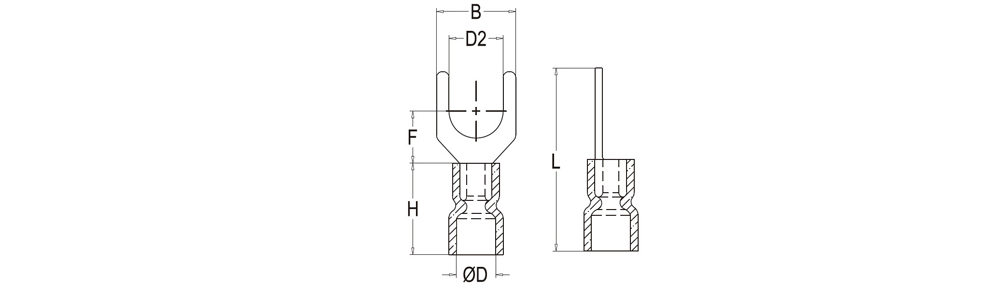

| Item No. | AWG/mm² | d2 | B | L | F | H | Dφ | Color |
| BEYF1.25-3 | 22-16 0.5-1.5 19A 1000PCS |
3.2mm | 5.7 | 21.2 | 6.5 | 10 | 4.3 | Red |
| BEYFS1.25-3.5 | 3.7mm | 5.7 | 21.2 | 6.5 | ||||
| BEYFL1.25-3.5 | 3.7mm | 6.4 | 21.2 | 6.5 | ||||
| BEYFS1.25-4 | 4.3mm | 6.4 | 21.2 | 6.5 | ||||
| BEYFM1.25-4 | 4.3mm | 7.2 | 21.2 | 6.5 | ||||
| BEYFL1.25-4 | 4.3mm | 8.1 | 21.2 | 6.5 | ||||
| BEYFS1.25-5 | 5.3mm | 8.1 | 21.2 | 6.5 | ||||
| BEYFL1.25-5 | 5.3mm | 9.5 | 21.2 | 6.5 | ||||
| BEYFS1.25-6 | 6.5mm | 9.5 | 21.2 | 6.5 | ||||
| BEYFL1.25-6 | 6.5mm | 12 | 27.2 | 11 | ||||
| BEYF2-3 | 16-14 1.5-2.5 27A 1000PCS |
3.2mm | 5.7 | 21.2 | 6.5 | 10 | 4.9 | Blue |
| BEYFS2-3.5 | 3.7mm | 5.7 | 21.2 | 6.5 | ||||
| BEYFL2-3.5 | 3.7mm | 6 | 21.2 | 6.5 | ||||
| BEYFS2-4 | 4.3mm | 6.4 | 21.2 | 6.5 | ||||
| BEYFM2-4 | 4.3mm | 7.2 | 21.2 | 6.5 | ||||
| BEYFL2-4 | 4.3mm | 8.1 | 21.2 | 6.5 | ||||
| BEYFS2-5 | 5.3mm | 8.1 | 21.2 | 6.5 | ||||
| BEYFL2-5 | 5.3mm | 9.5 | 21.2 | 6.5 | ||||
| BEYFS2-6 | 6.5mm | 9.5 | 21.2 | 6.5 | ||||
| BEYFL2-6 | 6.5mm | 12 | 27.2 | 11 | ||||
| BEYF3.5-3 | 12-14 2.5-4 37A 500PCS |
3.2mm | 5.7 | 24.8 | 7 | 13.5 | 6.2 | Black |
| BEYF3.5-4 | 4.3mm | 8 | 24.8 | 7 | ||||
| BEYF3.5-5 | 5.3mm | 8 | 24.8 | 7 | ||||
| BEYF3.5-6 | 6.5mm | 12 | 28 | 12.1 | ||||
| BEYF5.5-3.5 | 12-10 ‘4-6 48A 500PCS |
3.7mm | 8.3 | 25.2 | 7.5 | 13.5 | 6.7 | Yellow |
| BEYFS5.5-4 | 4.3mm | 8.3 | 25.2 | 7.5 | ||||
| BEYFL5.5-4 | 4.3mm | 9 | 26 | 7.5 | ||||
| BEYF5.5-5 | 5.3mm | 9 | 26 | 7.5 | ||||
| BEYFS5.5-6 | 6.5mm | 9 | 26 | 7.5 | ||||
| BEYFL5.5-6 | 6.5mm | 12 | 31.2 | 12 | ||||
| BEYF5.5-8 | 8.4mm | 14 | 30 | 11.5 |
