Insulated Ring Terminals Spade Terminals Wire Connector BERF
Specification:
Material: Copper, Tin-plated copper
Insulated Material: PVC
Certification: CE, RoHS, UL Approved
Working Temperature: -40℃ to 85℃ Heat-resistance

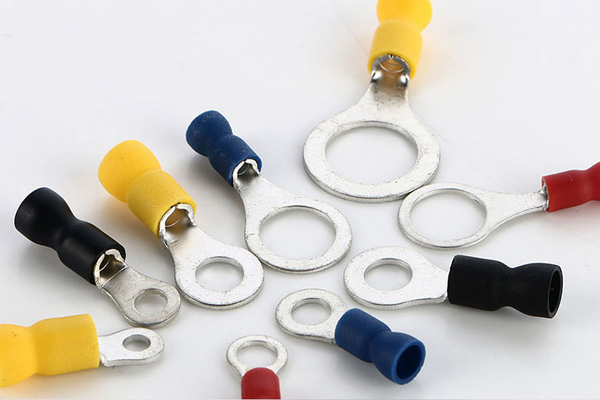

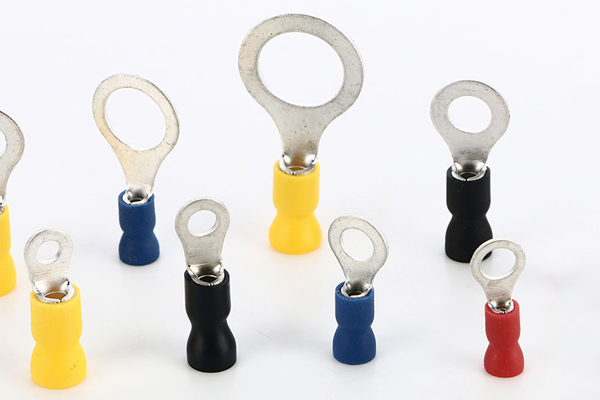

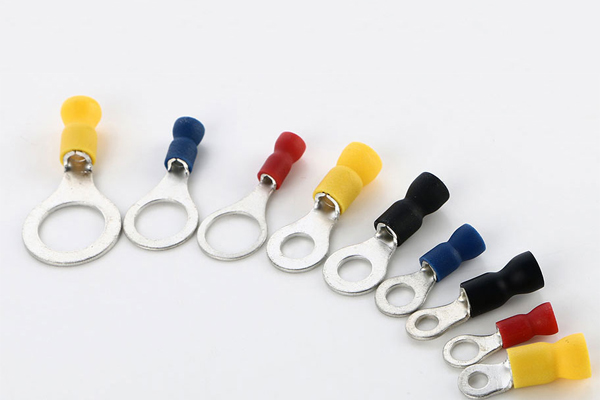

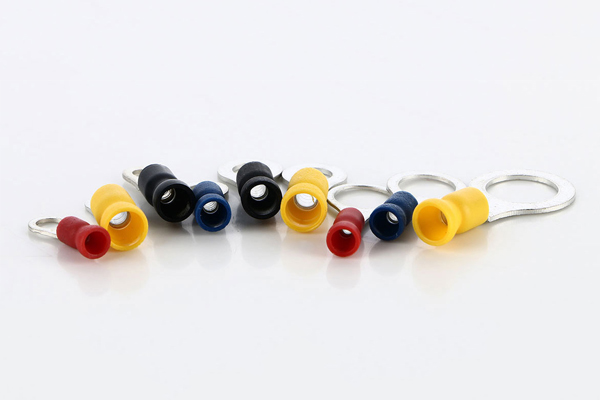

Insulated Ring Terminals offer a termination security in high vibration areas. All these Terminals are made of high-quality copper in good conductivity and corrosion resistance.

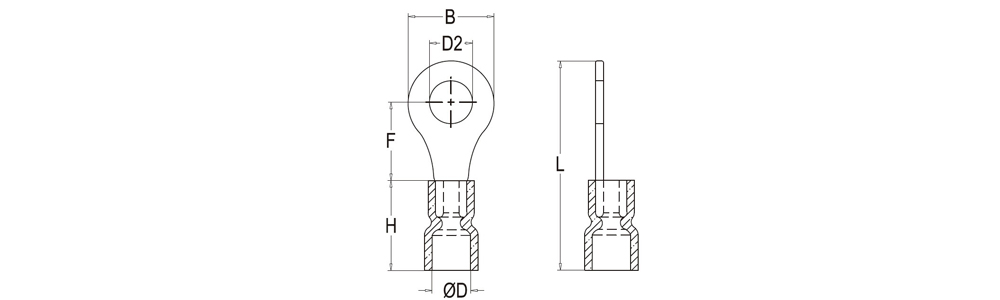

| Item No. | AWG/mm² | d2 | B | L | F | H | Dφ | Color |
| BERF1.25-3 | 22-16 0.5-1.5 19A 1000PCS |
3.2mm | 5.7 | 17.8 | 4.95 | 10 | 4.3 | Red |
| BERFS1.25-3.5 | 3.7mm | 5.7 | 17.8 | 4.95 | ||||
| BERFM1.25-3.5 | 3.7mm | 6.6 | 20.1 | 6.3 | ||||
| BERFL1.25-3.5 | 3.7mm | 8 | 21.5 | 7 | ||||
| BERFS1.25-4 | 4.3mm | 6.6 | 20.1 | 6.3 | ||||
| BERFL1.25-4 | 4.3mm | 8 | 21.5 | 7 | ||||
| BERF1.25-5 | 5.3mm | 8 | 21.5 | 7 | ||||
| BERFL1.25-5 | 5.3mm | 9.8 | 23 | 8.5 | ||||
| BERFS1.25-6 | 6.5mm | 9.8 | 23 | 8.5 | ||||
| BERF1.25-6 | 6.5mm | 11.6 | 27.5 | 11.1 | ||||
| BERF1.25-8 | 8.4mm | 11.6 | 27.5 | 11.1 | ||||
| BERF1.25-10 | 10.5mm | 13.6 | 31.6 | 13.9 | ||||
| BERF1.25-12 | 13.0mm | 19.2 | 36 | 16.5 | ||||
| BERF2-3 | 16-14 1.5-2.5 27A 1000PCS |
3.2mm | 6.6 | 17.8 | 4.3 | 10 | 4.9 | Blue |
| BERFS2-3.5 | 3.7mm | 6.6 | 17.8 | 4.3 | ||||
| BERFM2-3.5 | 3.7mm | 6.6 | 21 | 7 | ||||
| BERFL2-3.5 | 3.7mm | 8.5 | 22.5 | 7.75 | ||||
| BERFS2-4 | 4.3mm | 6.6 | 19.5 | 6.5 | ||||
| BERFL2-4 | 4.3mm | 8.5 | 22.5 | 7.75 | ||||
| BERFS2-5 | 5.3mm | 8.5 | 22.5 | 7.75 | ||||
| BERFL2-5 | 5.3mm | 9.5 | 22.5 | 7.25 | ||||
| BERF2-6 | 6.5mm | 12 | 27.6 | 11 | ||||
| BERF2-8 | 8.4mm | 12 | 27.6 | 11 | ||||
| BERF2-10 | 10.5mm | 14 | 31 | 13.9 | ||||
| BERF2-12 | 13.0mm | 19.2 | 36.5 | 16.5 | ||||
| BERF3.5-4 | 12-14 2.5-4 37A 500PCS |
4.3mm | 8 | 24.5 | 7.7 | 13.5 | 6.7 | Black |
| BERFS3.5-5 | 5.3mm | 8 | 24.5 | 7.7 | ||||
| BERFL3.5-5 | 5.3mm | 12 | 27.9 | 7.7 | ||||
| BERF3.5-6 | 6.5mm | 12 | 27.9 | 7.7 | ||||
| BERF3.5-8 | 8.4mm | 15 | 32 | 13.5 | ||||
| BERF3.5-10 | 10.5mm | 15 | 32 | 13.5 | ||||
| BERF5.5-3.5 | 12-10 4-6 48A 500PCS |
3.7mm | 7.2 | 21.4 | 5.9 | 13.5 | 6.7 | Yellow |
| BERFS5.5-4 | 4.3mm | 7.2 | 21.4 | 5.9 | ||||
| BERFL5.5-4 | 4.3mm | 9.5 | 26.5 | 8.3 | ||||
| BERF5.5-5 | 5.3mm | 9.5 | 26.5 | 8.3 | ||||
| BERF5.5-6 | 6.5mm | 12 | 31 | 13 | ||||
| BERF5.5-8 | 8.4mm | 15 | 33.7 | 13.7 | ||||
| BERF5.5-10 | 10.5mm | 15 | 33.7 | 13.7 | ||||
| BERF5.5-12 | 13.0mm | 19.2 | 38.1 | 16 |
