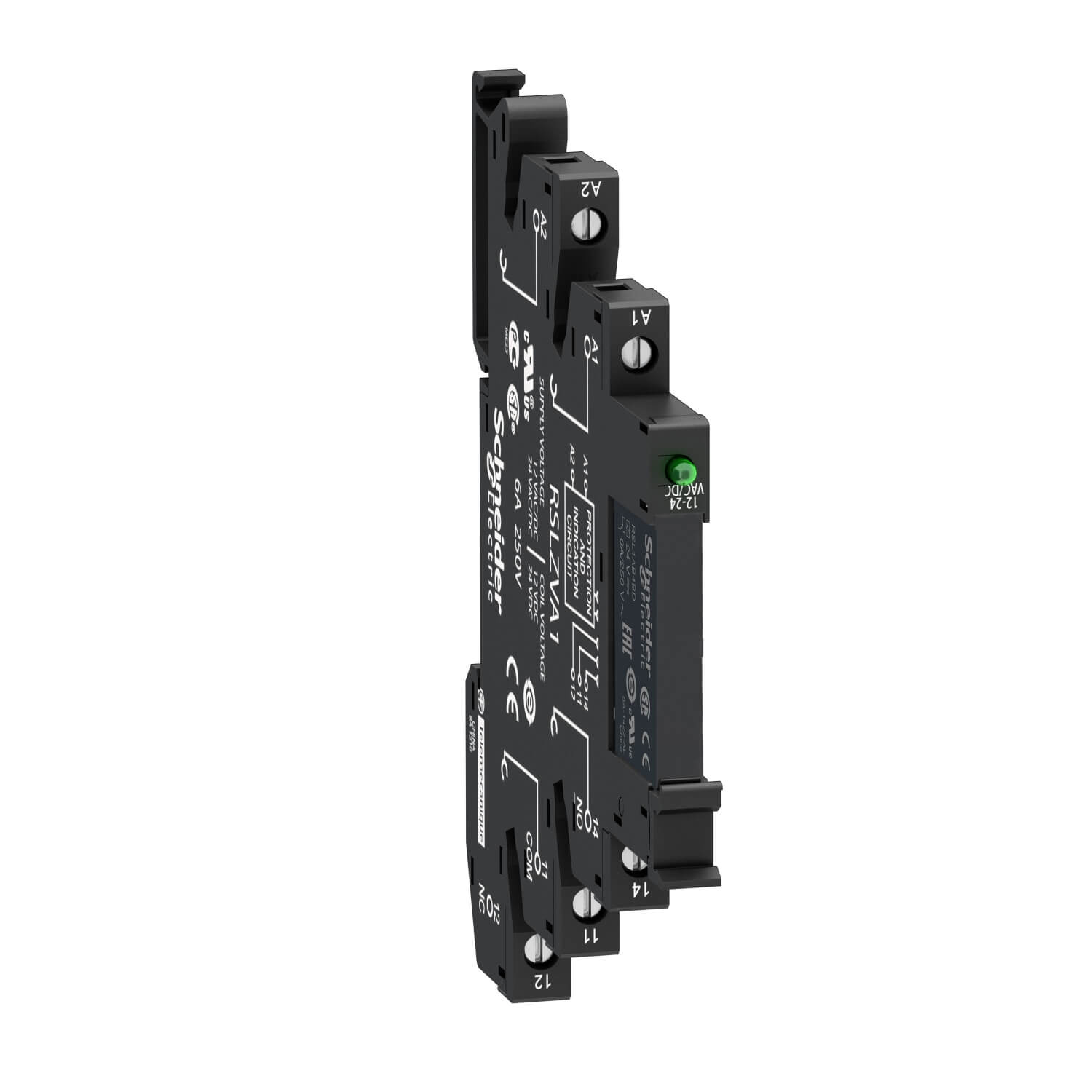

RSL1PVBU Slim relay mounted on screw socket with LED and protection circuit, 24 V
Specification：
| range of product |
Zelio Relay
|
|---|---|
| series name |
Interface relay
|
| product or component type |
Plug-in relay
|
| device short name |
RSL
|
| contacts type and composition |
1 C/O
|
| contact operation |
Standard
|
| [Uc] control circuit voltage |
24 V DC
|
| [Ithe] conventional enclosed thermal current |
6 A at -40…55 °C
|
| status LED |
With
|
| shape of pin |
Flat (PCB type)
|
| sale per indivisible quantity |
10
|
| fixing mode |
Plastic compression spring
|
|---|---|
| average resistance |
3390 Ohm (DC) at 23 °C +/- 10 %
|
| [Ui] rated insulation voltage |
277 V conforming to cUL
250 V conforming to EN/IEC |
| [Uimp] rated impulse withstand voltage |
6 kV conforming to IEC
|
| contacts material |
Silver alloy (AgSnO2)
|
| [Ie] rated operational current |
6 A 1 C/O (AC-1/DC-1) conforming to IEC/UL
|
| minimum switching current |
100 mA
|
| maximum switching voltage |
277 V
|
| switching voltage |
12 V
|
| maximum switching capacity |
1500 VA
150 W |
| minimum switching capacity |
120 mW
|
| operating rate |
<= 72000 cycles/hour no-load
<= 360 cycles/hour under load |
| mechanical durability |
<= 10000000 cycles
|
| electrical durability |
60000 cycles for resistive load (6 A at 250 V, AC-1)
|
| operating time |
5 ms
12 ms reset |
| marking |
CE
|
| protection category |
RT III
|
| operating position |
Any position
|
| height |
78.6 mm
|
| width |
6.2 mm
|
| depth |
95 mm
|
| terminals description ISO n°1 |
(11-12-14)OC
(A1-A2)CO |
| product weight |
0.029 kg
|
| load current |
6 A at 250 V AC for 0.5 mm mounting distance
|
| average coil consumption |
0.17 W DC
|
| drop-out voltage threshold |
>= 0.05 Uc
|
| contact terminal arrangement |
Separate
|
| connections – terminals |
Screw connectors (1 x 0.2…1 x 2.5 mm² / AWG 24…AWG 14) flexible cable with cable end
Screw connectors (1 x 0.2…1 x 2.5 mm² / AWG 24…AWG 14) solid cable without cable end |
| tightening torque |
< 0.5 N.m (M2.5)
|
| safety reliability data |
B10d = 60000
|
| control type |
Without push-button
|
| mounting support |
35 mm symmetrical DIN rail
|
| device presentation |
Complete product
|
| input voltage |
24 V AC/DC (input voltage limit: 21.6…28.8 V)
|
|---|---|
| dielectric strength |
1000 V AC (between contacts)
4000 V AC (between coil and contact) |
| standards |
EN/IEC 61810-1
UL 508 CSA C22.2 No 14 |
| product certifications |
CSA
GOST UL |
| ambient air temperature for storage |
-40…85 °C
|
| vibration resistance |
5 gn +/- 1 mm (f = 10…150 Hz) 10 cycles in operation conforming to EN/IEC 60068-2-6
10 gn +/- 1 mm (f = 10…150 Hz) 10 cycles not operating conforming to EN/IEC 60068-2-6 |
| IP degree of protection |
IP40 conforming to EN/IEC 60529
|
| shock resistance |
5 gn for11 ms not operating conforming to EN/IEC 60068-2-27
10 gn for11 ms in operation conforming to EN/IEC 60068-2-27 |
| ambient air temperature for operation |
-40…55 °C
|
