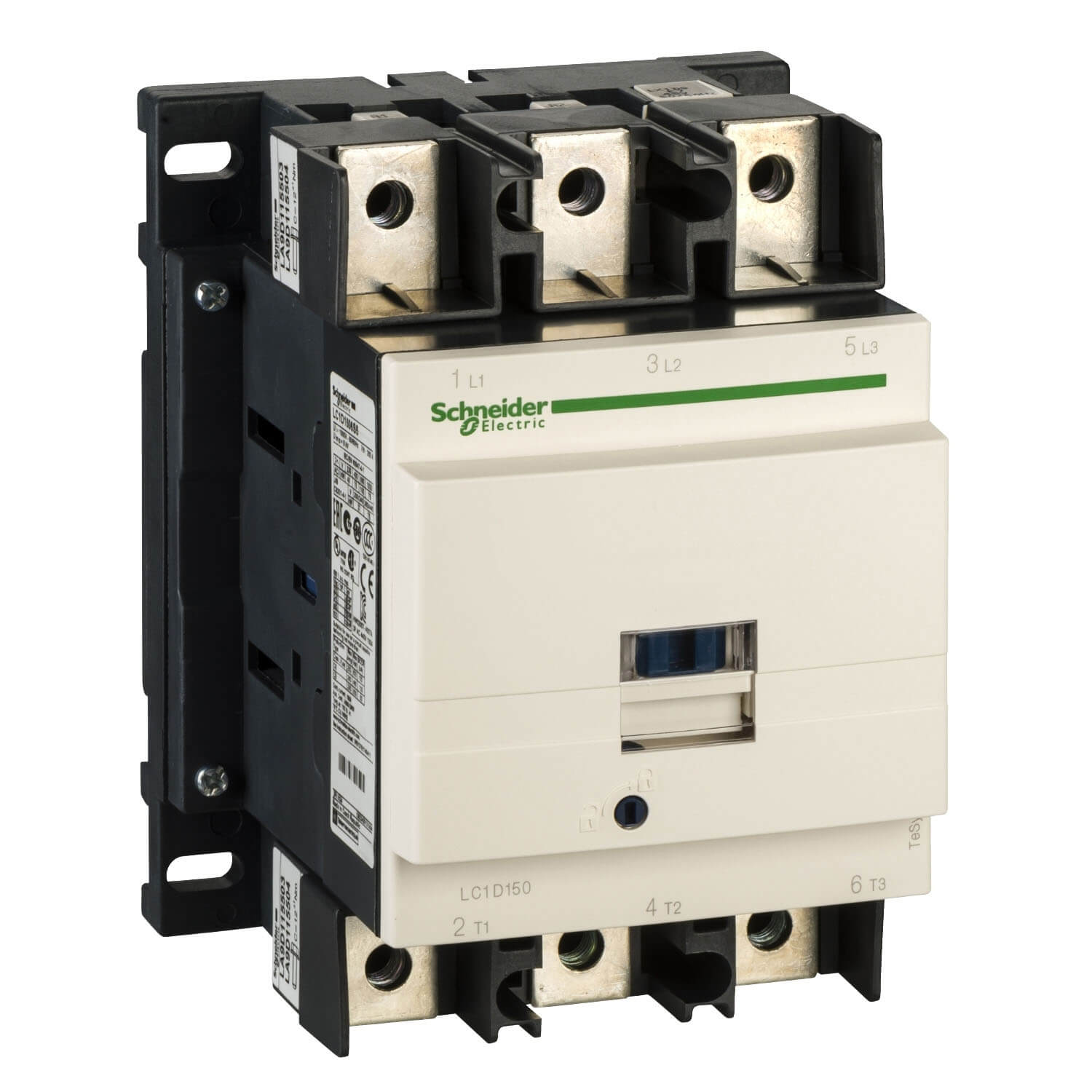

LC1D1506BD TeSys D contactor – 3P(3 NO) – AC-3 – <= 440 V 150 A – 24 V DC standard coil
Specification:
| range |
TeSys
|
|
|---|---|---|
| product name |
TeSys D
|
|
| product or component type |
Contactor
|
|
| device short name |
LC1D
|
|
| contactor application |
Motor control
Resistive load |
|
| utilisation category |
AC-3
AC-1 AC-4 |
|
| poles description |
3P
|
|
| power pole contact composition |
3 NO
|
|
| [Ue] rated operational voltage |
Power circuit: <= 1000 V AC 25…400 Hz
Power circuit: <= 300 V DC |
|
| [Ie] rated operational current |
200 A (at <60 °C) at <= 440 V AC AC-1 for power circuit
150 A (at <60 °C) at <= 440 V AC AC-3 for power circuit |
|
| motor power kW |
40 kW at 220…230 V AC 50/60 Hz (AC-3)
75 kW at 380…400 V AC 50/60 Hz (AC-3) 80 kW at 415…440 V AC 50/60 Hz (AC-3) 90 kW at 500 V AC 50/60 Hz (AC-3) 100 kW at 660…690 V AC 50/60 Hz (AC-3) 75 kW at 1000 V AC 50/60 Hz (AC-3) 22 kW at 400 V AC 50/60 Hz (AC-4) |
|
| motor power HP (UL / CSA) |
40 hp at 200/208 V AC 50/60 Hz for 3 phases motors
50 hp at 230/240 V AC 50/60 Hz for 3 phases motors 100 hp at 460/480 V AC 50/60 Hz for 3 phases motors 125 hp at 575/600 V AC 50/60 Hz for 3 phases motors |
|
| control circuit type |
DC standard
|
|
| [Uc] control circuit voltage |
24 V DC
|
|
| auxiliary contact composition |
1 NO + 1 NC
|
|
| [Uimp] rated impulse withstand voltage |
8 kV conforming to IEC 60947
|
|
| overvoltage category |
III
|
|
| [Ith] conventional free air thermal current |
200 A (at 60 °C) for power circuit
|
|
| Irms rated making capacity |
140 A AC for signalling circuit conforming to IEC 60947-5-1
250 A DC for signalling circuit conforming to IEC 60947-5-1 1660 A at 440 V for power circuit conforming to IEC 60947 |
|
| rated breaking capacity |
1400 A at 440 V for power circuit conforming to IEC 60947
|
|
| [Icw] rated short-time withstand current |
250 A 40 °C – 10 min for power circuit
580 A 40 °C – 1 min for power circuit 1200 A 40 °C – 10 s for power circuit 1400 A 40 °C – 1 s for power circuit 100 A – 1 s for signalling circuit 120 A – 500 ms for signalling circuit 140 A – 100 ms for signalling circuit |
|
| associated fuse rating |
10 A gG for signalling circuit conforming to IEC 60947-5-1
315 A gG at <= 690 V coordination type 1 for power circuit 250 A gG at <= 690 V coordination type 2 for power circuit |
|
| average impedance |
0.6 mOhm – Ith 200 A 50 Hz for power circuit
|
|
| [Ui] rated insulation voltage |
Power circuit: 600 V CSA certified
Power circuit: 600 V UL certified Power circuit: 1000 V conforming to IEC 60947-4-1 Signalling circuit: 690 V conforming to IEC 60947-1 Signalling circuit: 600 V CSA certified Signalling circuit: 600 V UL certified |
|
| electrical durability |
0.85 Mcycles 150 A AC-3 at Ue <= 440 V
1 Mcycles 200 A AC-1 at Ue <= 440 V |
|
| power dissipation per pole |
24 W AC-1
13.5 W AC-3 |
|
| Front cover |
With
|
|
| mounting support |
Rail
Plate |
|
| standards |
CSA C22.2 No 14
EN 60947-4-1 EN 60947-5-1 IEC 60947-4-1 IEC 60947-5-1 UL 508 |
|
| product certifications |
GL
CSA CCC UL DNV LROS (Lloyds register of shipping) RINA BV GOST |
|
| connections – terminals |
Control circuit: lugs-ring terminals (external diameter: 8 mm)
Power circuit: lugs-ring terminals (external diameter: 25 mm) Power circuit: bars 1 cable(s) – busbar cross section: 5 x 25 mm |
|
| tightening torque |
Control circuit: 1.2 N.m – on lugs-ring terminals – with screwdriver flat Ø 6 mm M3.5
Control circuit: 1.2 N.m – on lugs-ring terminals – with screwdriver Philips No 2 M3.5 Power circuit: 12 N.m – on lugs-ring terminals hexagonal screw head 13 mm M8 Power circuit: 12 N.m – on bars hexagonal screw head 13 mm M8 |
|
| operating time |
20…35 ms closing
40…75 ms opening |
|
| safety reliability level |
B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1
B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1 |
|
| mechanical durability |
8 Mcycles
|
|
| maximum operating rate |
1200 cyc/h 60 °C
|
| coil technology |
With integral suppression device
|
|
|---|---|---|
| control circuit voltage limits |
0.75…1.2 Uc (-40…55 °C):operational DC
0.15…0.4 Uc (-40…70 °C):drop-out DC 1…1.2 Uc (55…70 °C):operational DC |
|
| time constant |
25 ms
|
|
| inrush power in W |
270…365 W (at 20 °C)
|
|
| hold-in power consumption in W |
2.4…5.1 W at 20 °C
|
|
| auxiliary contacts type |
type mechanically linked 1 NO + 1 NC conforming to IEC 60947-5-1
type mirror contact 1 NC conforming to IEC 60947-4-1 |
|
| signalling circuit frequency |
25…400 Hz
|
|
| minimum switching current |
5 mA for signalling circuit
|
|
| minimum switching voltage |
17 V for signalling circuit
|
|
| non-overlap time |
1.5 ms on de-energisation between NC and NO contact
1.5 ms on energisation between NC and NO contact |
|
| insulation resistance |
> 10 MOhm for signalling circuit
|
|
| contact compatibility |
M10
|
|
| compatibility code |
LC1D
|
| IP degree of protection |
IP20 front face conforming to IEC 60529
|
|
|---|---|---|
| protective treatment |
TH conforming to IEC 60068-2-30
|
|
| pollution degree |
3
|
|
| ambient air temperature for operation |
-40…60 °C
60…70 °C with derating |
|
| ambient air temperature for storage |
-60…80 °C
|
|
| operating altitude |
0…3000 m
|
|
| fire resistance |
850 °C conforming to IEC 60695-2-1
|
|
| flame retardance |
V1 conforming to UL 94
|
|
| mechanical robustness |
Vibrations contactor open: 2 Gn, 5…300 Hz
Vibrations contactor closed: 4 Gn, 5…300 Hz Shocks contactor closed: 15 Gn for 11 ms Shocks contactor open: 6 Gn for 11 ms |
|
| height |
158 mm
|
|
| width |
120 mm
|
|
| depth |
136 mm
|
|
| net weight |
2.5 kg
|
