Wide Close Slotted Cable Ducting Wire Duct 8mm*12mm
Specification:
Material: Rigid PVC
Color Option: Gray, white, blue, black and other special colors
Work Temperature: -40°C to 65°C
Certificates: UL, CE, RoHS, REACH
UL Recognized continuous use temperature: 50°C (122°F)
UL94 Flammability Rating of V-0
Provided with mounting holes
Gray is the common color, other colors need more MOQ
Standard Length:2M/PCS

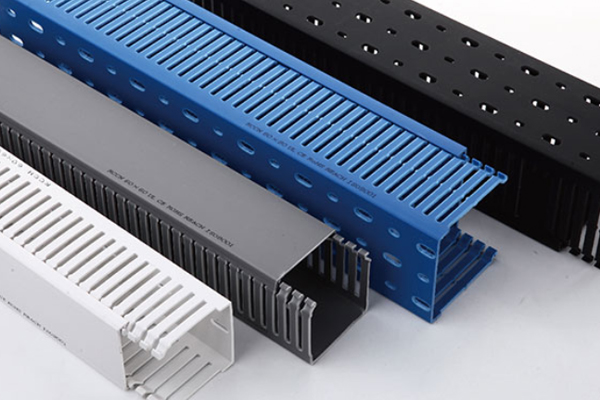

Our Wide Slotted Cable Trunking is designed to provide you with high-quality cable ducting with round edges to protect wires and hands from abrasions.

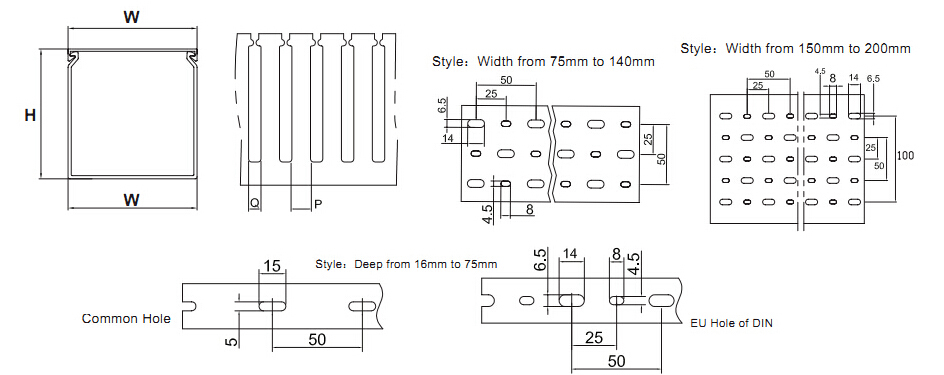

| Item No. | W*H | Hole width | Tooth width | Wire Capacity | Packing/M |
| Q | P | Calculated in terms of 2.0 square feet | |||
| BVD2580 | 25*80 | 8 | 12 | 100~120pcs | 72M |
| BVD3080 | 30*80 | 8 | 12 | 110~125pcs | 56M |
| BVD3580 | 35*80 | 8 | 12 | 110~130pcs | 56M |
| BVD4080 | 40*80 | 8 | 12 | 140~160pcs | 48M |
| BVD4580 | 45*80 | 8 | 12 | 140~160pcs | 40M |
| BVD5080 | 50*80 | 8 | 12 | 160~180pcs | 40M |
| BVD5580 | 55*80 | 8 | 12 | 160~180pcs | 32M |
| BVD6080 | 60*80 | 8 | 12 | 180~210pcs | 32M |
| BVD8080 | 80*80 | 8 | 12 | 240~290pcs | 24M |
| BVD10080 | 100*80 | 8 | 12 | 260~350pcs | 24M |
| BVD12080 | 120*80 | 8 | 12 | 280~380pcs | 16M |
| BVD14080 | 140*80 | 8 | 12 | 350~450pcs | 16M |
| BVD25100 | 25*100 | 8 | 12 | 110~160pcs | 60M |
| BVD33100 | 33*100 | 8 | 12 | 130~165pcs | 44M |
| BVD40100 | 40*100 | 8 | 12 | 130~175pcs | 40M |
| BVD50100 | 50*100 | 8 | 12 | 220~250pcs | 40M |
| BVD60100 | 60*100 | 8 | 12 | 240~290pcs | 32M |
| BVD70100 | 70*100 | 8 | 12 | 240~290pcs | 32M |
| BVD75100 | 75*100 | 8 | 12 | 260~350pcs | 24M |
| BVD80100 | 80*100 | 8 | 12 | 260~350pcs | 24M |
| BVD100100 | 100*100 | 8 | 12 | 300~400pcs | 24M |
| BVD120100 | 120*100 | 8 | 12 | 350~450pcs | 16M |
| BVD150100 | 150*10 | 8 | 12 | 400-650pcs | 16M |
