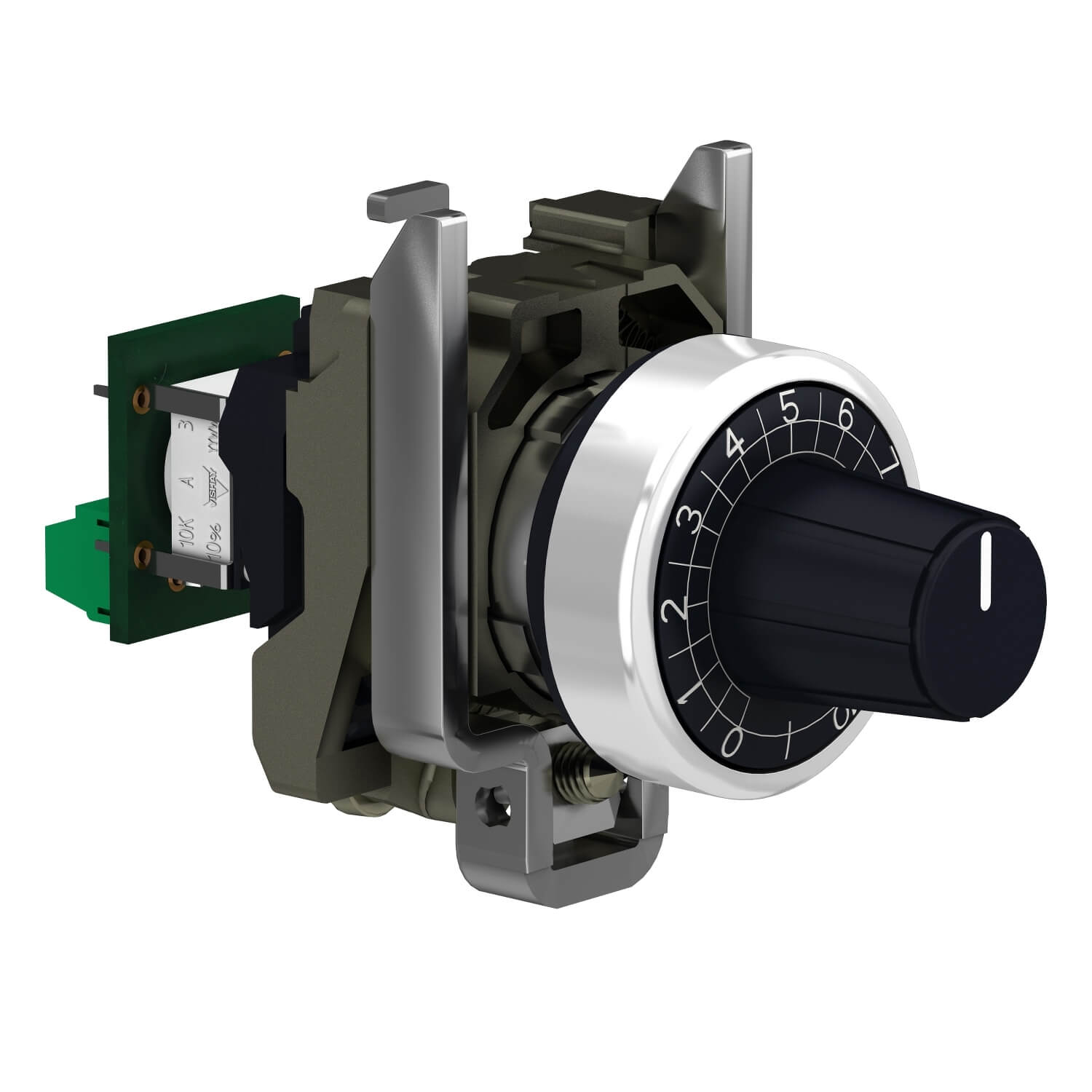

XB4BD912R4K7 Head Ø22 + mounting base + potentiometer 4K7
Specification：
| range of product |
Harmony XB4
|
|---|---|
| product or component type |
Potentiometer
|
| device short name |
XB4
|
| head type |
Standard
|
| device presentation |
Complete product
|
| bezel material |
Chromium plated metal
|
|---|---|
| mounting diameter |
22 mm
|
| product compatibility |
Ø 6 mm shaft
|
| sale per indivisible quantity |
1
|
| CAD overall width |
30 mm
|
| CAD overall height |
47 mm
|
| CAD overall depth |
82 mm
|
| net weight |
0.095 kg
|
| protective treatment |
TH
|
| ambient air temperature for storage |
-40…70 °C
|
| ambient air temperature for operation |
-40…70 °C
|
| electrical shock protection class |
Class II conforming to IEC 60536
|
| IP degree of protection |
IP66 conforming to IEC 60529
IP69 conforming to IEC 60529 IP69K conforming to IEC 60529 |
| NEMA degree of protection |
NEMA 13
NEMA 4X |
| resistance to high pressure washer |
7000000 Pa at 55 °C, distance : 0.1 m
|
| IK degree of protection |
IK06 conforming to IEC 50102
|
| standards |
CSA C22.2 No 14
EN/IEC 60947-1 UL 508 |
| product certifications |
CSA
UL listed BV |
| shape of signaling unit head |
Round
|
| operator profile |
knurled knob, with (white)
|
| [Us] rated supply voltage |
<= 30 V AC
<= 42 V DC |
| rated power in W |
1 W at 70 °C
|
| precision of internal conversion resistor |
+-10%
|
| potentiometer characteristic |
Linear
|
| mechanical durability |
50000 cycles
|
| ohmic value |
4700 Ohm
|
| material |
Cermet
|
| vibration resistance |
5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6
|
| shock resistance |
30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| main group |
Potentiometer
|
| group of product |
Potentiometer knurled knob
|
| colour of marking |
White
|
