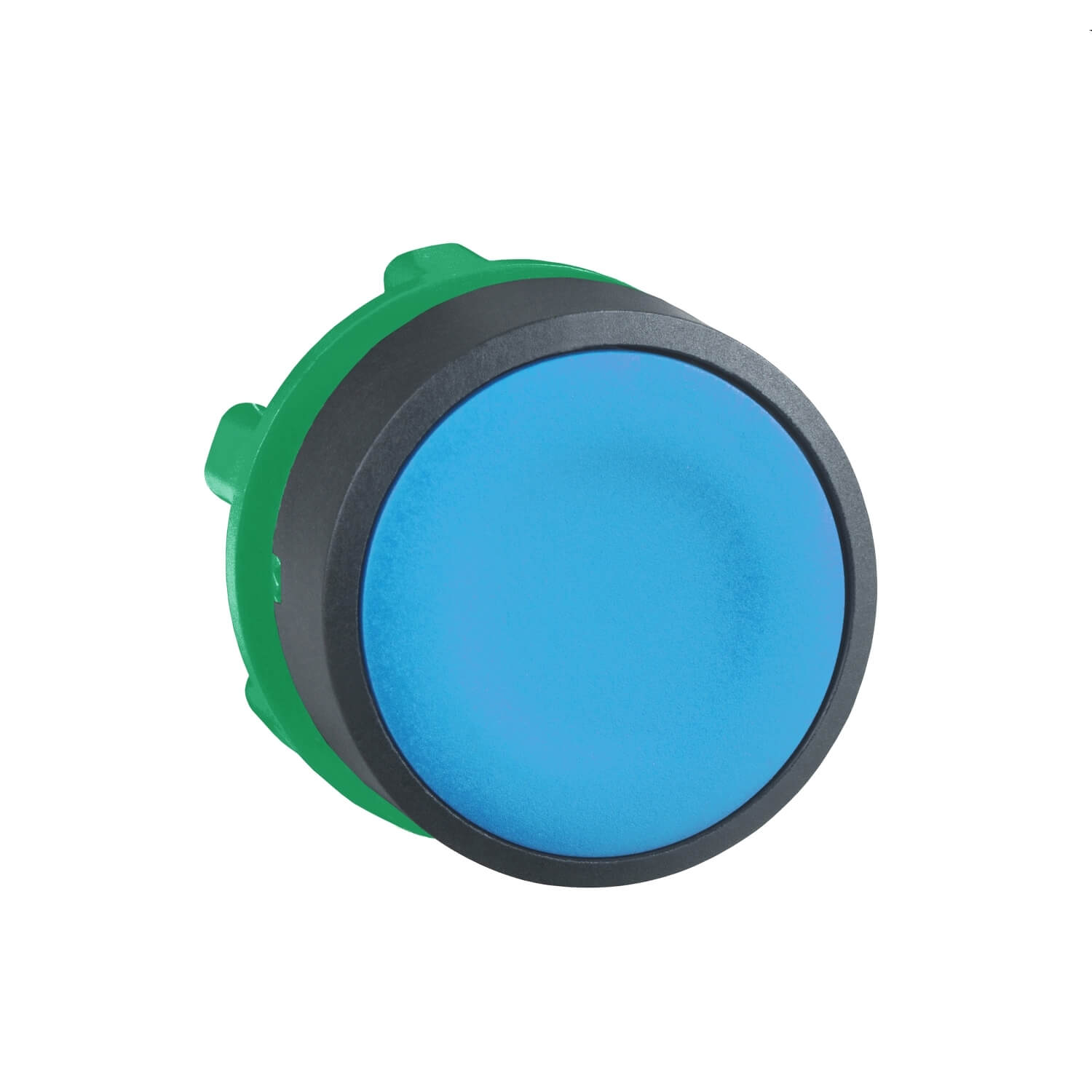

ZB5AA6 Blue flush pushbutton head Ø22 spring return unmarked
Specification：
| range of product |
Harmony XB5
|
|---|---|
| product or component type |
Head for non-illuminated push-button
|
| device short name |
ZB5
|
| bezel material |
Dark grey plastic
|
| mounting diameter |
22 mm
|
| head type |
Standard
|
| sale per indivisible quantity |
1
|
| shape of signaling unit head |
Round
|
| type of operator |
spring return
|
| operator profile |
Blue flush, unmarked
|
| CAD overall width |
29 mm
|
|---|---|
| CAD overall height |
29 mm
|
| CAD overall depth |
28 mm
|
| net weight |
0.018 kg
|
| mechanical durability |
10000000 cycles
|
| station name |
XALD 1…5 cut-outs
XALK 2…5 cut-outs |
| electrical composition code |
C1 for <9 contacts using single blocks in front mounting
C2 for <9 contacts using single and double blocks in front mounting C11 for <3 contacts using single blocks in front mounting C15 for <1 contacts using single blocks in front mounting SF1 for <3 contacts using single blocks in front mounting SR1 for <3 contacts using single blocks in rear mounting |
| device presentation |
Basic element
|
