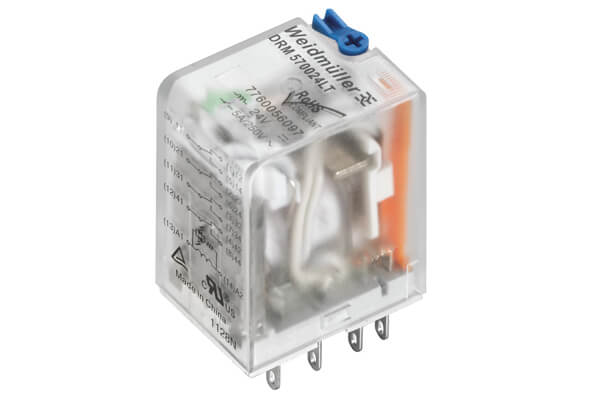

7760056069 DRM270024LT D-SERIES DRM, Relay, No. of contacts: 2, CO contact with test button, AgNi 0,15 μm Au, Rated control voltage: 24 V DC, Continuous current: 10 A, Plug-in connection
7760056069 DRM270024LT D-SERIES DRM, Relay, No. of contacts: 2, CO contact with test button, AgNi 0,15 μm Au, Rated control voltage: 24 V DC, Continuous current: 10 A, Plug-in connection
Specification：
| Type | DRM270024LT |
| Order No. | 7760056069 |
| Version | D-SERIES DRM, Relay, No. of contacts: 2, CO contact with test button, AgNi 0,15 μm Au, Rated control voltage: 24 V DC, Continuous current: 10 A, Plug-in connection |
| Rated control voltage | 24 V DC |
| Rated current DC | 37.8 mA |
| Power rating | 0.9 W |
| Pull-in/drop-out voltage, typ. | 18 V / 2.4 V DC |
| Coil resistance | 650 Ω ± 10 % |
| Status indicator | Green LED |
| Rated switching voltage | 250 V AC |
| Max. switching voltage, AC | 250 V |
| Continuous current | 10 A |
| Inrush current | 20 A / 50 ms |
| AC switching capacity (resistive), max. | 2500 VA |
| DC switching capacity (resistive), max. | 240 W @ 24 V |
| Switch-on delay | < 20 ms |
| Switch-off delay | < 20 ms |
| Min. switching power | 10 mA @ 12 V, 100 mA @ 5 V |
| Max. switching frequency at rated load | 0.1 Hz |
| Test button | yes (lockable) |
| Mechanical switch position indicator | Yes |
| Colour | Transparent |
| UL 94 flammability rating | V-0 |
