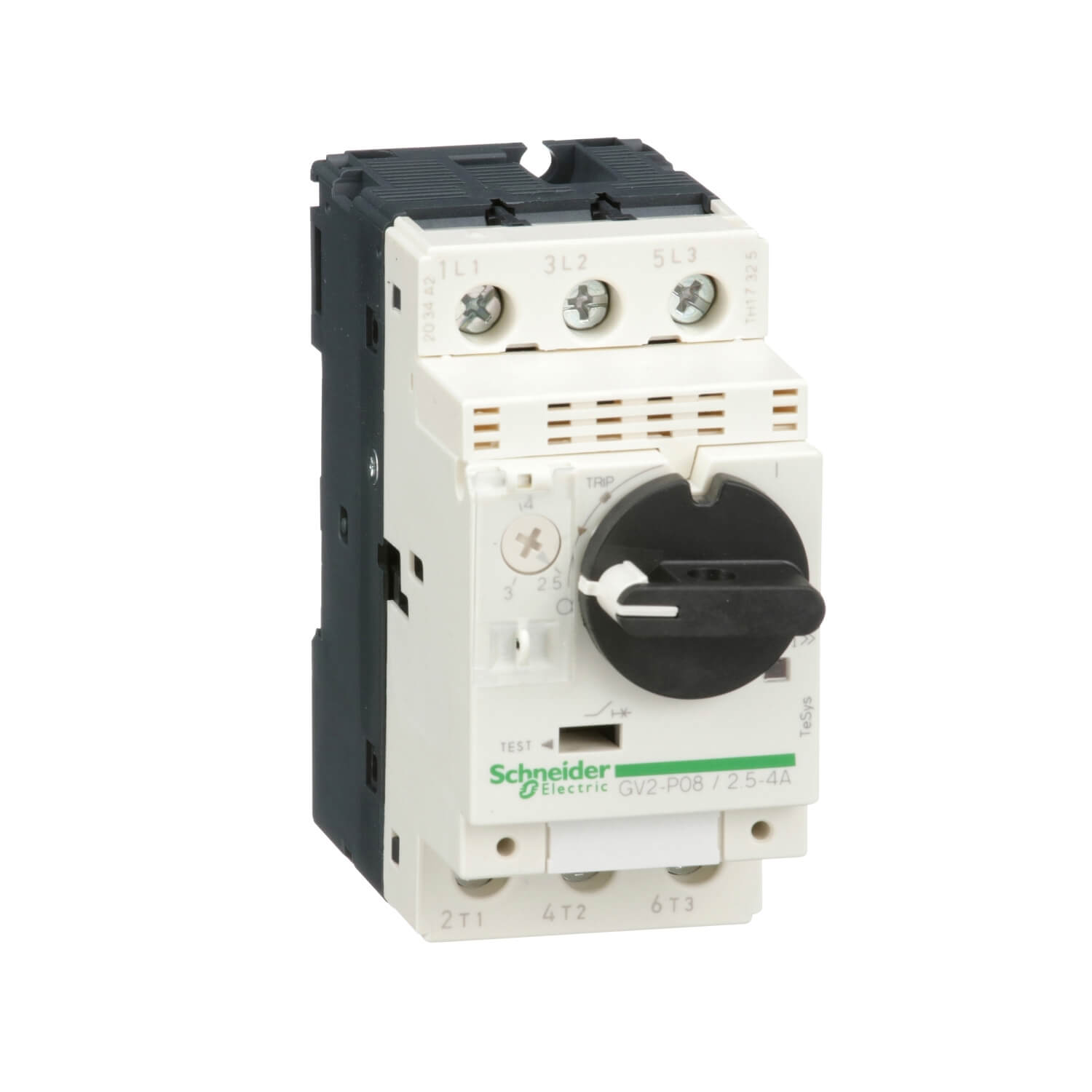

GV2P08 TeSys GV2 Manual Starter and Protector, thermal magnetic circuit protector, rotary handle, 2.5 to 4 A, screw clamp
GV2P08 TeSys GV2 Manual Starter and Protector, thermal magnetic circuit protector, rotary handle, 2.5 to 4 A, screw clamp
Specification:
| range |
TeSys
|
|---|---|
| product name |
TeSys GV2
|
| device short name |
GV2P
|
| device application |
Motor
|
| trip unit technology |
Thermal-magnetic
|
| poles description |
3P
|
|---|---|
| network type |
AC
|
| utilisation category |
AC-3 IEC 60947-4-1
Category A IEC 60947-2 |
| network frequency |
50/60 Hz IEC 60947-4-1
|
| fixing mode |
35 mm symmetrical DIN rail clipped
Panel screwed with 2 x M4 screws) |
| operating position |
Any position
|
| motor power kW |
1.1 kW 400/415 V AC 50/60 Hz
1.5 kW 500 V AC 50/60 Hz 2.2 kW 690 V AC 50/60 Hz |
| breaking capacity |
100 kA Icu 230/240 V AC 50/60 Hz IEC 60947-2
100 kA Icu 400/415 V AC 50/60 Hz IEC 60947-2 100 kA Icu 440 V AC 50/60 Hz IEC 60947-2 100 kA Icu 500 V AC 50/60 Hz IEC 60947-2 8 kA Icu 690 V AC 50/60 Hz IEC 60947-2 |
| [Ics] rated service short-circuit breaking capacity |
100 % 690 V AC 50/60 Hz IEC 60947-2
100 % 500 V AC 50/60 Hz IEC 60947-2 100 % 230/240 V AC 50/60 Hz IEC 60947-2 100 % 440 V AC 50/60 Hz IEC 60947-2 100 % 400/415 V AC 50/60 Hz IEC 60947-2 |
| control type |
Rotary knob
|
| Line Rated Current |
4 A
|
| thermal protection adjustment range |
2.5…4 A
|
| magnetic tripping current |
51 A
|
| [Ue] rated operational voltage |
690 V AC 50/60 Hz IEC 60947-2
|
| [Ui] rated insulation voltage |
690 V AC 50/60 Hz IEC 60947-2
|
| [Ith] conventional free air thermal current |
4 A IEC 60947-4-1
|
| [Uimp] rated impulse withstand voltage |
6 kV IEC 60947-2
|
| power dissipation per pole |
2.5 W
|
| mechanical durability |
100000 cycles
|
| electrical durability |
100000 cycles AC-3 440 V
|
| maximum operating rate |
25 cyc/h
|
| rated duty |
Continuous IEC 60947-4-1
|
| connections – terminals |
screw clamp terminals 2 0.00…0.01 in² (1…6 mm²) solid
screw clamp terminals 2 0.00…0.01 in² (1.5…6 mm²) flexible without cable end screw clamp terminals 2 0.00…0.01 in² (1…4 mm²) flexible with cable end |
| tightening torque |
15.05 lbf.in (1.7 N.m) screw clamp terminals
|
| suitability for isolation |
Yes IEC 60947-1
|
| phase failure sensitivity |
Yes IEC 60947-4-1
|
| height |
3.50 in (89 mm)
|
| width |
1.77 in (45 mm)
|
| depth |
3.82 in (97 mm)
|
| standards |
EN/IEC 60947-2
EN/IEC 60947-4-1 UL 60947-4-1 CSA C22.2 No 60947-4-1 |
|---|---|
| product certifications |
IECEE CB Scheme
UL CSA CCC EAC ATEX BV LROS (Lloyds register of shipping) DNV-GL RINA |
| protective treatment |
TH
|
| IP degree of protection |
IP20 IEC 60529
|
| IK degree of protection |
IK04
|
| ambient air temperature for operation |
-4…140 °F (-20…60 °C)
|
| ambient air temperature for storage |
-40…176 °F (-40…80 °C)
|
| fire resistance |
1760 °F (960 °C) IEC 60695-2-1
|
| operating altitude |
6561.68 ft (2000 m)
|
