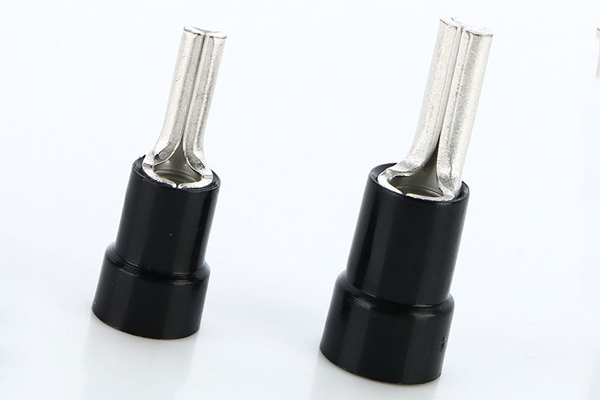

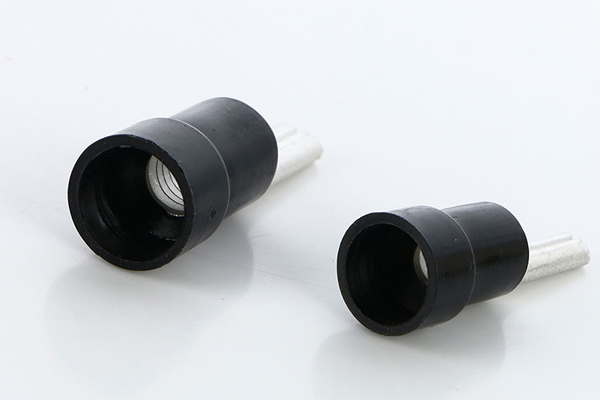

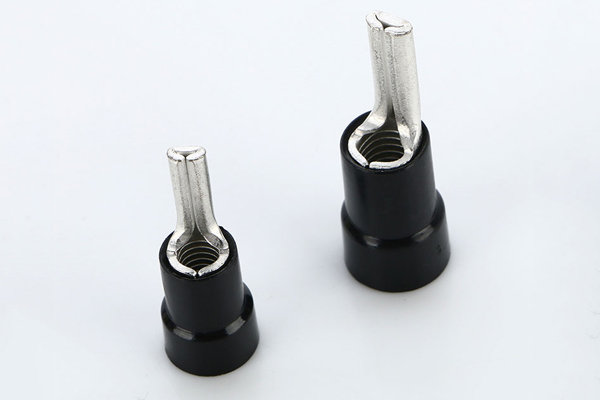

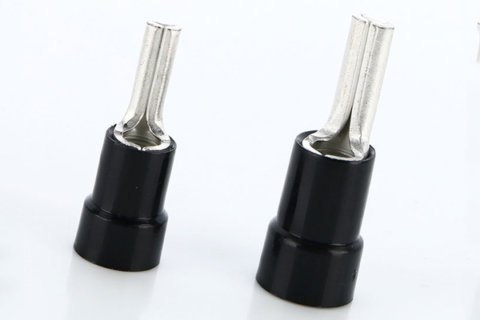

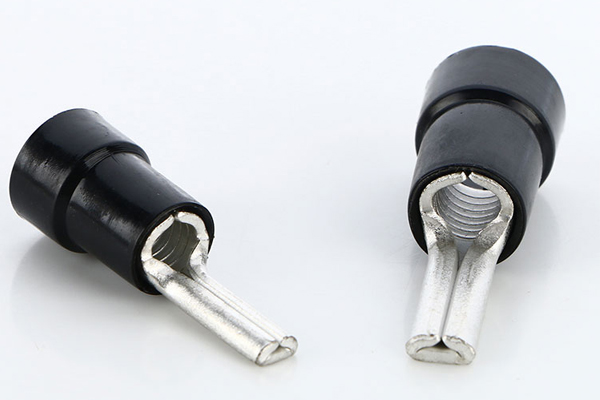

Insulated Lug Terminals Electrical Lugs KSN
Specification:
Material: Copper, Tin-plated copper, Tinned Copper
Insulated material: PVC
Working Temperature: -40ºC to 150ºC
Certification: CE, RoHS, UL Approved
The Insulated Lug Terminals are made of the high-quality copper which ensures good conductivity at its user end. The Insulated Lug Terminals are tin plated to provide excellent corrosion resistance.

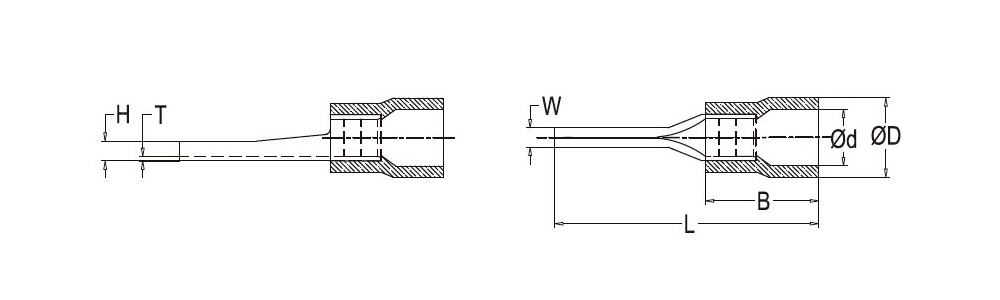

(In mm)
| Item No. | D | d | B | L | W | H | T |
| KS10-12N | 9 | 4.5 | 15.5 | 29.5 | 4.3 | 2.4 | 1.1 |
| KS16-13N | 10.5 | 5.9 | 19 | 35 | 5.5 | 2.6 | 1.2 |
| KS25-15N | 11.5 | 7 | 24.5 | 44.5 | 6.8 | 2.6 | 1.2 |
| KS35-20N | 14 | 8.7 | 29.5 | 54 | 8 | 3.2 | 1.5 |
| KS50-20N | 15.8 | 9.8 | 35 | 61 | 9.5 | 3.8 | 1.8 |
| KS70-25N | 18 | 11.6 | 44 | 75 | 11 | 4.2 | 2 |
| KS95-25N | 21.6 | 13.7 | 44 | 75 | 12.5 | 5.2 | 2.5 |
